Toyota AVANZA — PARTIAL ENGINE ASSEMBLY

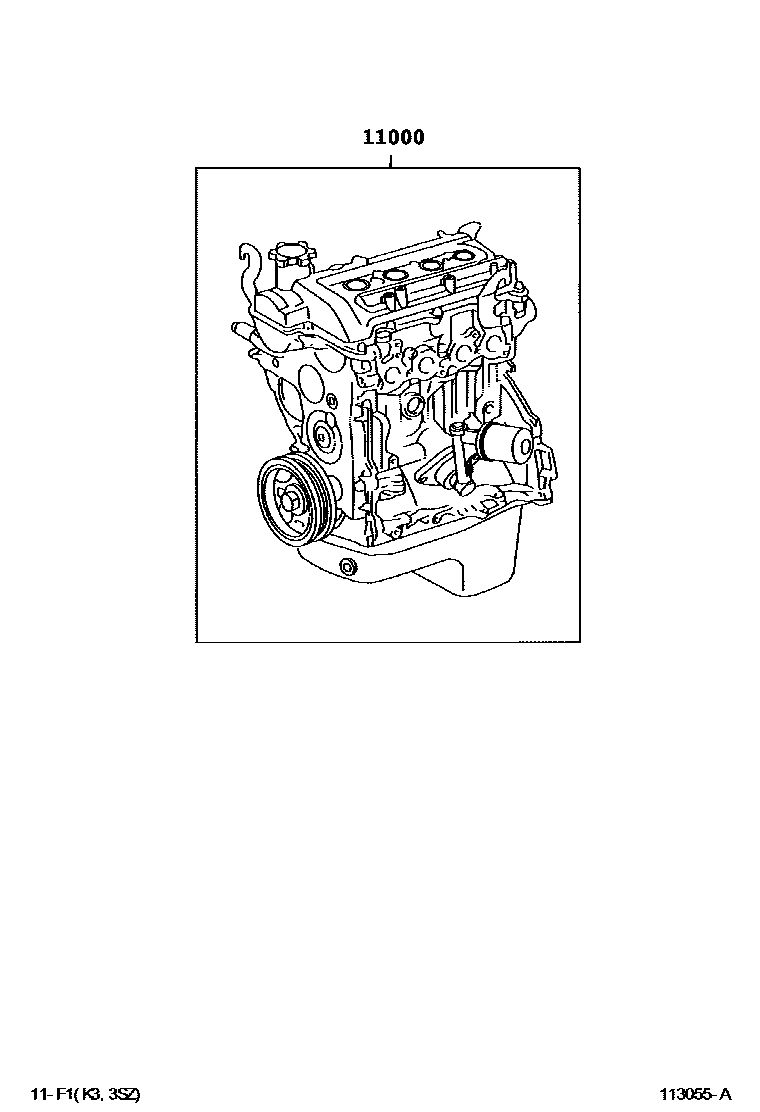

11000ENGINE ASSY, PARTIAL

main19000-BZ060iK3DE..F601200312-200409

main19000-BZ070iK3VE..F601200405-200409

main19000-BZ210iK3VE..F601..S;K3VE..F601..5F200409-200410

main19000-BZ220iK3VE..F601..MA200410-200501

main19000-BZ270iK3VE..F601..LIMD200412-200502

main19000-BZ340iK3DE..F601200409-200510

main19000-BZ350iK3VE..F601..4AT..E200502-200510

main19000-BZ360iK3VE..F601..MA200502-200504

main19000-BZ370iK3VE..F601..LIMD200502-200511

main19000-BZ380iK3VE..F601..IDN200502-200510

main19000-BZA50iK3DE..F601200510-200512

main19000-BZA60iK3VE..F601..4AT..E200510-200511

main19000-BZA70iK3VE..F601..MA200504-200511

main19000-BZA80iK3VE..F601..IDN200510-200511

main19000-BZA90iK3VE..F601..4AT..E200511-200512

main19000-BZB10iK3VE..F601..IDN200511-200512

main19000-BZB30iK3VE..F601..MA200511-200512

main19000-BZD50iK3VE..F601..MA200512-200608

main19000-BZD90iK3DE..F601200512-200604

main19000-BZE00iK3VE..F601..4AT..E200512-200604

main19000-BZE10iK3VE..F601..LIMD200512-200602

main19000-BZE20iK3VE..F601..IDN200512-200604

main19000-BZE50iK3VE..F601..LIMD200602-200605

main19000-BZE90iK3DE..F601200605-200608

main19000-BZF00iK3VE..F601..4AT..E200605-200608

main19000-BZF20iK3VE..F601..IDN200605-200608

main19000-BZF30iK3VE..F601..S..BRU;K3VE..F601..(G,GL,LIMD)..(BRU,TH)200605-200608

main19000-BZG30i3SZVE..F602..GEN200608-200609

main19000-BZK70i3SZVE..F602..SA,TH200608-200609

main19000-BZT30iK3VE..F601..CTM200801-200808

main19000-BZT32iK3VE..F601..CTM,DLX,STD200808-201111

main19000-BZT33iK3VE..F601..CTM,DLX,STD201111

sub19000-BZT34

main19000-BZT40iK3VE..F601..(E,G,J)..(GEN,IDN,PHL)200608-200711

main19000-BZT50iK3VE..F601..MA200609-200808

main19000-BZT52iK3VE..F601..5F..MA200808-201111

main19000-BZT53iK3VE..F601..5F..MA201111

sub19000-BZT54

main19000-BZT60i3SZVE..F602..(DLX,G,GL)..(GEN,SA)200609-200808

main19000-BZT70i3SZVE..F602..MA200609-200710

main19000-BZT80i3SZVE..F602..PHL;3SZVE..F602..S..(GEN,IDN)200609-200711

main19000-BZT90iK3VE..F601..CTM200706-200801

main19000-BZU10i3SZVE..F602..TH200609-200808

main19000-BZV31i3SZVE..F602..MXC200811-201111

main19000-BZV32i3SZVE..F602..(DLX,G,GL)..(GEN,MXC,SA)201111

sub19000-BZV33

sub19000-BZV34

main19000-BZV41i3SZVE..F602..TH200808-200810

main19000-BZV70iK3VE..F601..(E,G,J)..(GEN,IDN,PHL)200712-200808

main19000-BZV72iK3VE..F601..(E,G,J,XI)..(GEN,IDN,PHL)200808-201111

main19000-BZV74iK3VE..F601..(E,G,J,XI)..(GEN,IDN,PHL)201111

sub19000-BZV77

main19000-BZW20i3SZVE..F602..PHL;3SZVE..F602..S..(GEN,IDN)200712-200808

main19000-BZW30i3SZVE..F602..MA200710-200808

main19000-BZW31i3SZVE..F602..MA200808-201111

main19000-BZW32i3SZVE..F602..MA201111

main19000-BZW41i3SZVE..F602..PHL;3SZVE..F602..S..(GEN,IDN)200808-201111

main19000-BZW42i3SZVE..F602..PHL;3SZVE..F602..RHD..(GEN,IDN,TH)201111

sub19000-BZW43

1 parts on this diagram · 1 diagram in section
