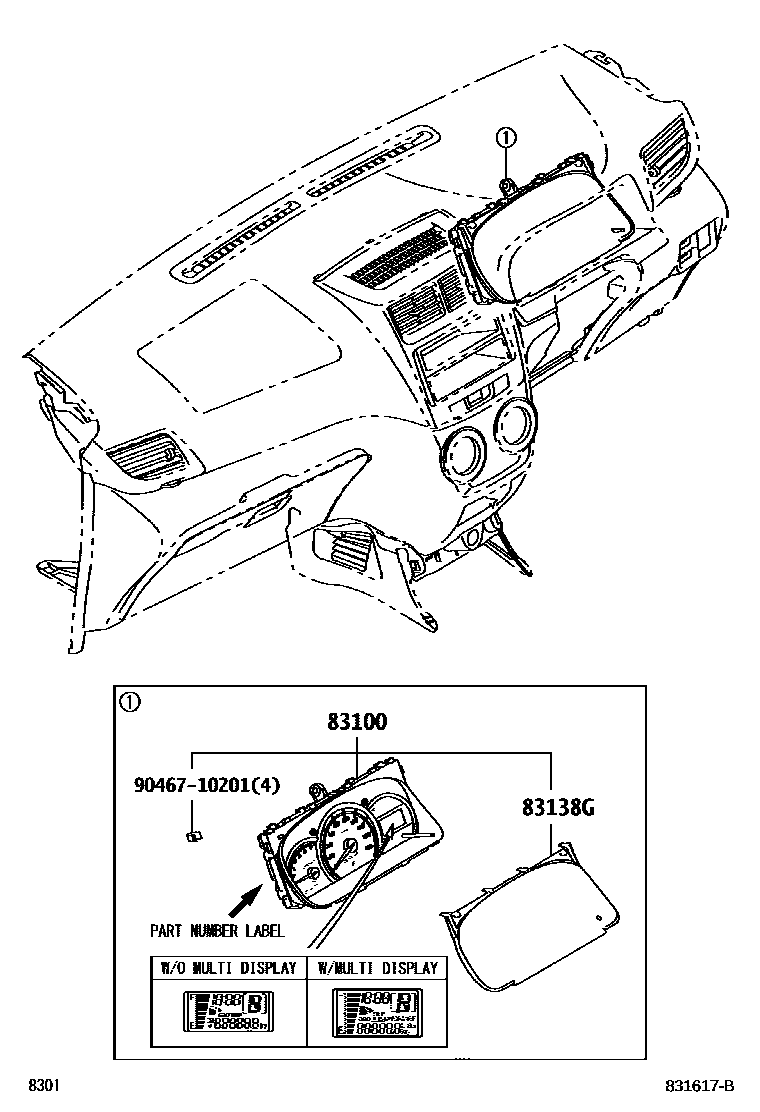

Toyota AVANZA — METER

83100METER ASSY, COMBINATION

main83800-BY010iF653,654..5F..SPO201507-201901

W/PART NUMBER LABEL

main83800-BY050iF65#..4AT..STD..(MA,PHL)201508-201904

W/PART NUMBER LABEL

main83800-BY060iF653..4AT..MID..IDN201507-201901

W/PART NUMBER LABEL

main83800-BY070iF654..SPO..MA201508-201904

W/PART NUMBER LABEL

main83800-BY090iF65#..5F..(LO,STD,VB)..SA201609-201904

W/PART NUMBER LABEL

main83800-BY110iF654..MID..MA201508-201901

W/PART NUMBER LABEL

main83800-BY120iF654..5F..TH201508-201901

W/PART NUMBER LABEL

main83800-BY130iF654..4AT..STD..TH201508-201904

W/PART NUMBER LABEL

main83800-BY140iF654..MID..TH201508-201904

W/PART NUMBER LABEL

main83800-BY150iF654..SPO..TH201508-201901

W/PART NUMBER LABEL

main83800-BY250iF654..4AT..(MXC,PHL)201508-201904

W/PART NUMBER LABEL

main83800-BY260iF65#..5F..(LO,STD,VB)..SA201508-201609

W/PART NUMBER LABEL

main83800-BY290iF65#..5F..(LO,STD)..(GEN,PHL)201508-201904

W/PART NUMBER LABEL

main83800-BY350iF654..5F..MID..GCC201508-201609

W/PART NUMBER LABEL

main83800-BY351iF654..5F..MID..GCC201609-201904

W/PART NUMBER LABEL

main83800-BY360iF654..4AT..MID..GCC201508-201609

W/PART NUMBER LABEL

main83800-BY361iF654..4AT..MID..GCC201609-201904

W/PART NUMBER LABEL

main83800-BY370iF654..5F..STD..GCC201508-201609

W/PART NUMBER LABEL

main83800-BY371iF654..5F..STD..GCC201609-201904

W/PART NUMBER LABEL

main83800-BY380iF654..4AT..STD..GCC201508-201609

W/PART NUMBER LABEL

main83800-BY381iF654..4AT..STD..GCC201609-201904

W/PART NUMBER LABEL

main83800-BYD00iF65#..5F..MID..IDN201901-202110

DENSO,W/PART NUMBER LABEL

main83800-BYD10iF65#..5F..SPO201901-202110

DENSO,W/PART NUMBER LABEL

main83800-BYD50iF653..4AT..MID..IDN201901-202110

DENSO,W/PART NUMBER LABEL

main83800-BYD60iF65#..4AT..SPO..IDN201901-202110

DENSO,W/PART NUMBER LABEL

main83800-BYF80iF654..5F..(MXC,PHL)201904

DENSO,W/PART NUMBER LABEL

main83800-BYF90iF65#..5F..(LO,STD)..(GEN,PHL)201904

DENSO,W/PART NUMBER LABEL

main83800-BYG20iF65#..5F..(LO,STD,VB)..SA201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYG80iF654..MID..TH201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYG90iF654..STD..TH201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYJ00iF65#..4AT..STD..(MA,PHL)201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYJ10iF654..SPO..MA201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYJ20supersedes 83800-BYJ90iF654..4AT..MID..(MXC,PHL)201904-202201

DENSO,S.AFRICA FOR GENERAL EXP,W/PART NUMBER LABEL

main83800-BYJ30iF654..SPO..PHL201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYJ50iF65#..MID..GEN201904

DENSO,W/PART NUMBER LABEL

main83800-BYK10iF654..4AT..STD..GCC201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BYK20iF654..4AT..MID..GCC201904-202201

DENSO,W/PART NUMBER LABEL

main83800-BZC20iF651..LO..PHL201112-201305

W/PART NUMBER LABEL

main83800-BZL90iF65#..5F..(MID,STD)..IDN201111-201305

W/PART NUMBER LABEL

main83800-BZL92iF65#..5F..(MID,STD)..IDN201305-201507

W/PART NUMBER LABEL

main83800-BZM00iF651..4AT..IDN201111-201305

W/PART NUMBER LABEL

main83800-BZM02iF651..4AT..IDN201305-201507

W/PART NUMBER LABEL

main83800-BZM60iF652..STD..TH201111-201305

W/PART NUMBER LABEL

main83800-BZM62iF652..5F..TH201305-201508

W/PART NUMBER LABEL

main83800-BZM80iF652..(MID,SPO)..TH201111-201508

main83800-BZN00iF652..4AT..MXC201112-201508

main83800-BZN10iF651..STD..GEN201112-201207

W/PART NUMBER LABEL

main83800-BZN11iF651..MA201207-201312

W/PART NUMBER LABEL

main83800-BZN30iF652..5F..MXC201112-201508

main83800-BZN40iF652..5F..PHL;F651,652..5F..(LO,STD,VB)..SA201111-201508

main83800-BZN60iF652..4AT..(PHL,SA)201111-201508

main83800-BZN70iF652..5F..SPO201111-201305

W/PART NUMBER LABEL

main83800-BZN72iF652..5F..SPO201305-201507

W/PART NUMBER LABEL

main83800-BZN80iF652..4AT..IDN201111-201305

W/PART NUMBER LABEL

main83800-BZN82iF652..4AT..IDN201305-201507

W/PART NUMBER LABEL

main83800-BZP00iF651..LO..GEN201111-201305

W/PART NUMBER LABEL

main83800-BZP01iF651..STD..GEN201305-201508

W/PART NUMBER LABEL

main83800-BZP20iF652..STD..MA201111-201312

W/PART NUMBER LABEL

main83800-BZQ90iF652..MID..SA201111-201508

main83800-BZR00iF651..5F..STD..PHL201112-201508

W/PART NUMBER LABEL

main83800-BZR20iF651..4AT..PHL201112-201508

main83800-BZR70iF651..MA201312-201508

W/PART NUMBER LABEL

main83800-BZU00iF651,652..MID..GEN201111-201508

W/PART NUMBER LABEL

main83800-BZY10iF652..STD..MA201312-201508

W/PART NUMBER LABEL

main83800-BZY20iF652..(MID,SPO)..MA201312-201508

W/PART NUMBER LABEL

main83800-BZY80iF652..4AT..STD..TH201307-201508

W/PART NUMBER LABEL

main83800-BZY90iF652..5F..MID..GCC201404-201508

W/PART NUMBER LABEL

main83800-BZZ00iF652..5F..STD..GCC201404-201508

W/PART NUMBER LABEL

main83800-BZZ10iF652..4AT..MID..GCC201404-201508

W/PART NUMBER LABEL

main83800-BZZ20iF652..4AT..STD..GCC201404-201508

W/PART NUMBER LABEL

main83800-BZZ70iF653,654..4AT..SPO..IDN201507-201901

W/PART NUMBER LABEL

main83800-BZZ80iF653,654..5F..MID..IDN201507-201901

W/PART NUMBER LABEL

main83800-BY160supersedes 83800-BZZ60iF653..5F..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE),W/PART NUMBER LABEL

main83800-BY170supersedes 83800-BYE00iF653..4AT..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE),W/PART NUMBER LABEL

main83800-BYG10supersedes 83800-BYG30iF654..MID..SA201904-202201

DENSO,S.AFRICA FOR GENERAL EXP,W/PART NUMBER LABEL

83138GGLASS, COMBINATION METER

main83852-BZ130iF651..PHL201112-201508

main83852-BZ140iF651..GEN,MA,SA;F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main83852-BZ170iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

9046710201

main90467-10201

3 parts on this diagram · 1 diagram in section
