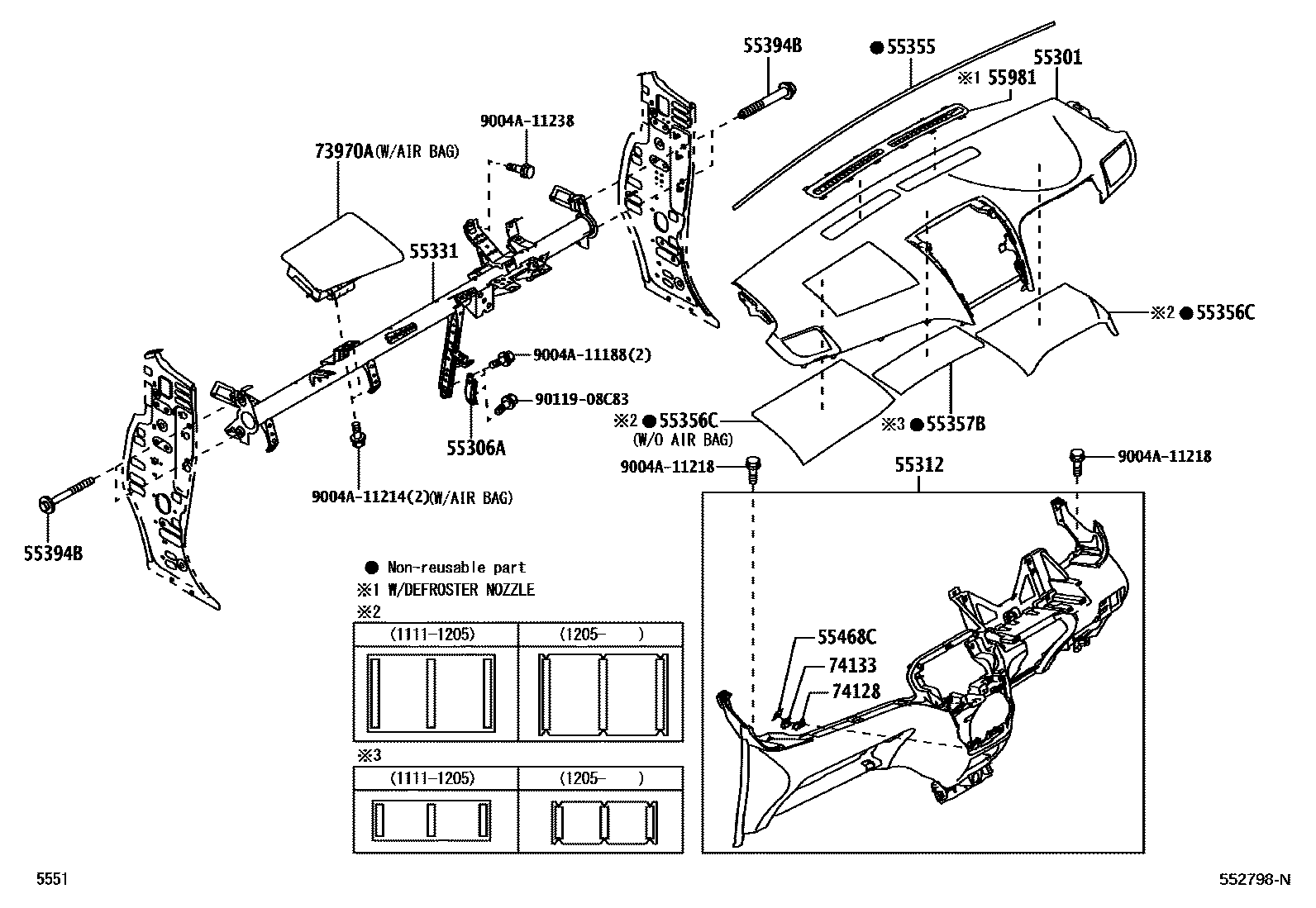

Toyota AVANZA — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ330-B0i201111-201305

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-BZ340-B0i201508-201808

DK.GRAY,TRIM1#

main55311-BZ341-B0i201904-202201

DK.GRAY,TRIM1#

main55311-BZ350-B0i201305-201507

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-BZ351-B0i201901-202201

DK.GRAY,TRIM1#

main55311-BZ370-B0i201112-201305

DK.GRAY,TRIM1#

main55311-BZ380-B0i201112-201508

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-BZ381-B0i201904

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-BZ390-B0i201112-201508

DK.GRAY,TRIM1#

main55311-BZ420-B0i201404-201508

DK.GRAY,TRIM4#

main55311-BZ430-B0i201112-201508

DK.GRAY,TRIM4#

main55311-BZ431-B0i201809-201904

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-BZ600-B0i201508-201808

DK.GRAY,TRIM4#

main55311-BZ601-B0i201904-202201

DK.GRAY,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-BZ110i201111-201508

55312PANEL, INSTRUMENT, LOWER

main55312-BZ020-B1i201111-201508

MD.GRAY,TRIM1#

main55312-BZ020-E0i201111-201507

-,TRIM4#

main55312-BZ030-B1i201112-201508

MD.GRAY,TRIM1#

main55312-BZ030-E0i201112-201508

-,TRIM4#

main55312-BZ080-B0i201507-201608

DK.GRAY,TRIM1#

main55312-BZ080-E0i201507-201608

OAK,TRIM4#

main55312-BZ081-B0i201609-201904

DK.GRAY,TRIM1#

main55312-BZ081-E0i201609-201901

OAK,TRIM4#

main55312-BZ090-B0i201508-201608

DK.GRAY,TRIM1#

main55312-BZ090-E0i201508-201608

OAK,TRIM4#

main55312-BZ091-B0i201609-201904

DK.GRAY,TRIM1#

main55312-BZ091-E0i201609-201904

OAK,TRIM4#

main55312-BZ100-B0i201901-202002

DK.GRAY,TRIM1#

main55312-BZ100-E0i201901-202003

LINEN BEIGE,TRIM4#

main55312-BZ101-B0i202003

DK.GRAY,TRIM1#

main55312-BZ101-E0i202003-202110

LINEN BEIGE,TRIM4#

main55312-BZ110-B0i201904-202003

DK.GRAY,TRIM1#

main55312-BZ110-E0i201904-202002

LINEN BEIGE,TRIM4#; VIETNAM,LINEN BEIGE,TRIM4#

main55312-BZ111-B0i202003

DK.GRAY,TRIM1#

main55312-BZ111-E0i202003

LINEN BEIGE,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ340i201111-201207

main55305-BZ360i201112-201508

main55305-BZ390i201112-201508

main55305-BZ400i201207-201305

main55305-BZ401i201305-201508

main55305-BZ480i201507-201901

main55305-BZ490i201508-201901

main55305-BZ570i201508-201904

main55305-BZ600i201901

main55305-BZ610i201904-202201

main55305-BZ620i201904

main55305-BZ630i201904

main55305-BZ760i201508-201904

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-BZ140i202008-202110

main55355-BZ100i201111-201507

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ120i201111-201205

main55356-BZ121×2i201205-201207

main55356-BZ122i201301-201305

main55356-BZ130i201901

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-BZ070i201111-201205

main55357-BZ071i201205-201212

main55357-BZ072i201301-201507

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4i201111-201507

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55696-BZ010i201111-201507

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ030-B0i201904

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ100-B0i201305-201507

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main73970-BZ110-B0i201112-201508

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main73970-BZ170-B0i201901-202108

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main73970-BZ171-B0i202109-202201

DK.GRAY,TRIM1#,4#

main73970-BZ180-B0i201508-201904

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main73970-BZ181-B0i202109-202201

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

74128SUPPORT, FRONT ASH RECEPTACLE RETAINER

main74128-BZ010i201111-201507

74133SEAL, FRONT ASH RECEPTACLE

main74133-BZ030i201111-201507

9004A11188

main9004A-11188

9004A11214

main9004A-11214

9004A11218

main9004A-11218

9004A11238

main9004A-11238

9011908C83

main90119-08C83

18 parts on this diagram · 18 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota AVANZA

This section contains 67 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota AVANZA. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL, INSTRUMENT, LOWER.
