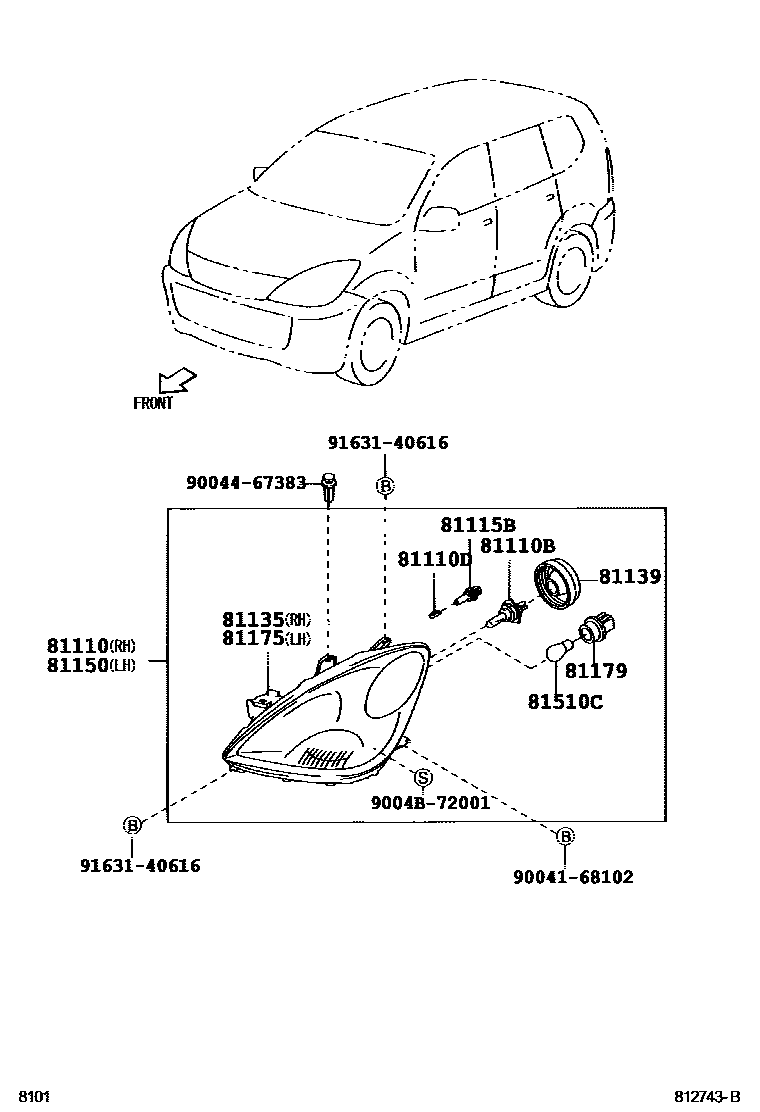

Toyota AVANZA — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W H4
81110DBULB(FOR HEADLAMP, NO.2)
12V 5W
81115BSOCKET,HEADLAMP, NO.1
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W
12V 21W
9004168102
main90041-68102
9004467383
main90044-67383
9004B72001
main9004B-72001
9163140616
main91631-40616
14 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota AVANZA
This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota AVANZA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), SOCKET,HEADLAMP, NO.1, UNIT ASSY, HEADLAMP, RH.
