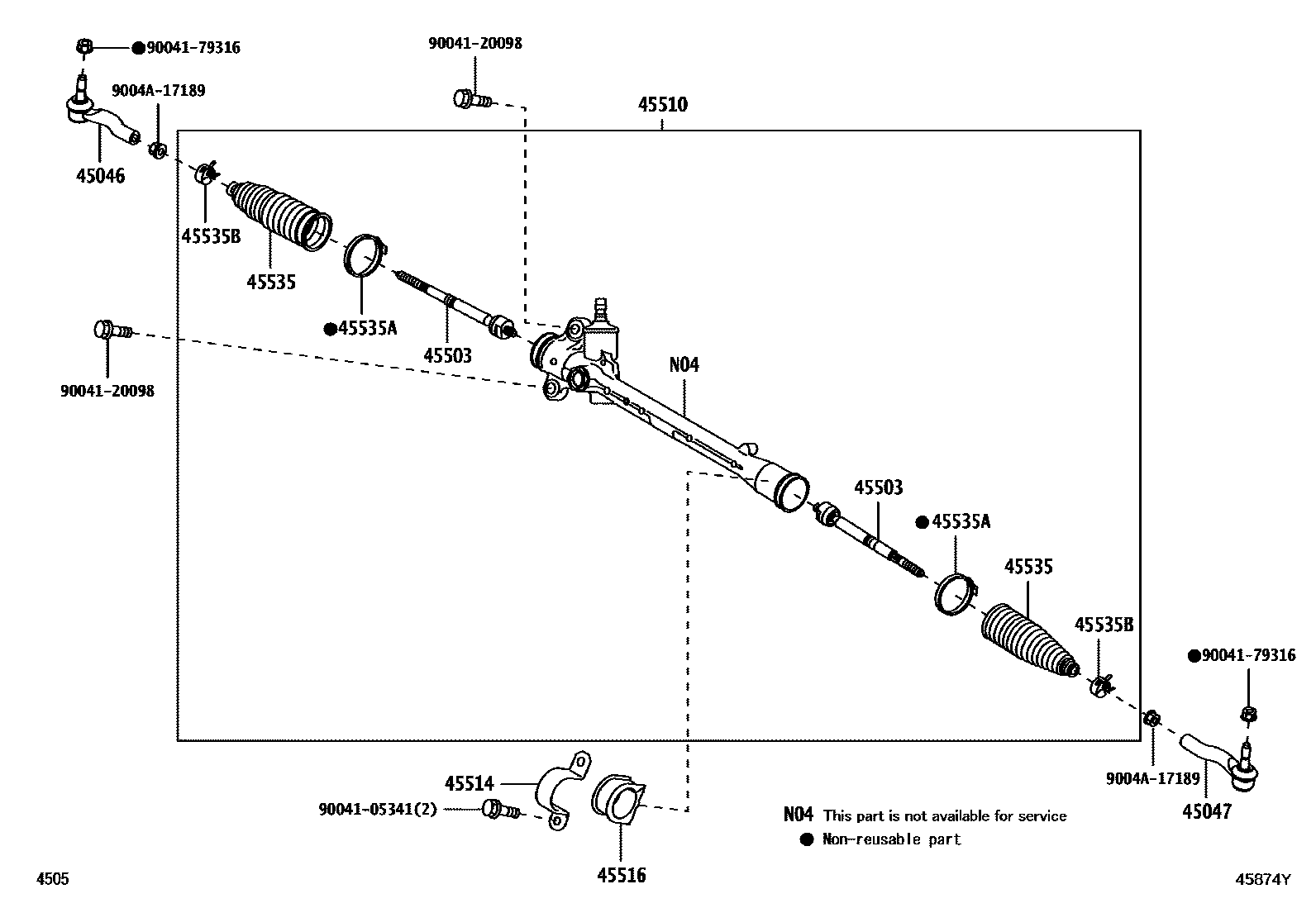

Toyota AVANZA — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45047END SUB-ASSY, TIE ROD, LH
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
main45514-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901
45516GROMMET, STEERING RACK HOUSING, NO.1
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
9004105341
main90041-05341
9004120098
main90041-20098
9004179316
main90041-79316
9004A17189
main9004A-17189
13 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota AVANZA
This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota AVANZA. Key components include: END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, END SUB-ASSY, STEERING RACK, GEAR ASSY, STEERING, BRACKET, STEERING RACK HOUSING, NO.1.
