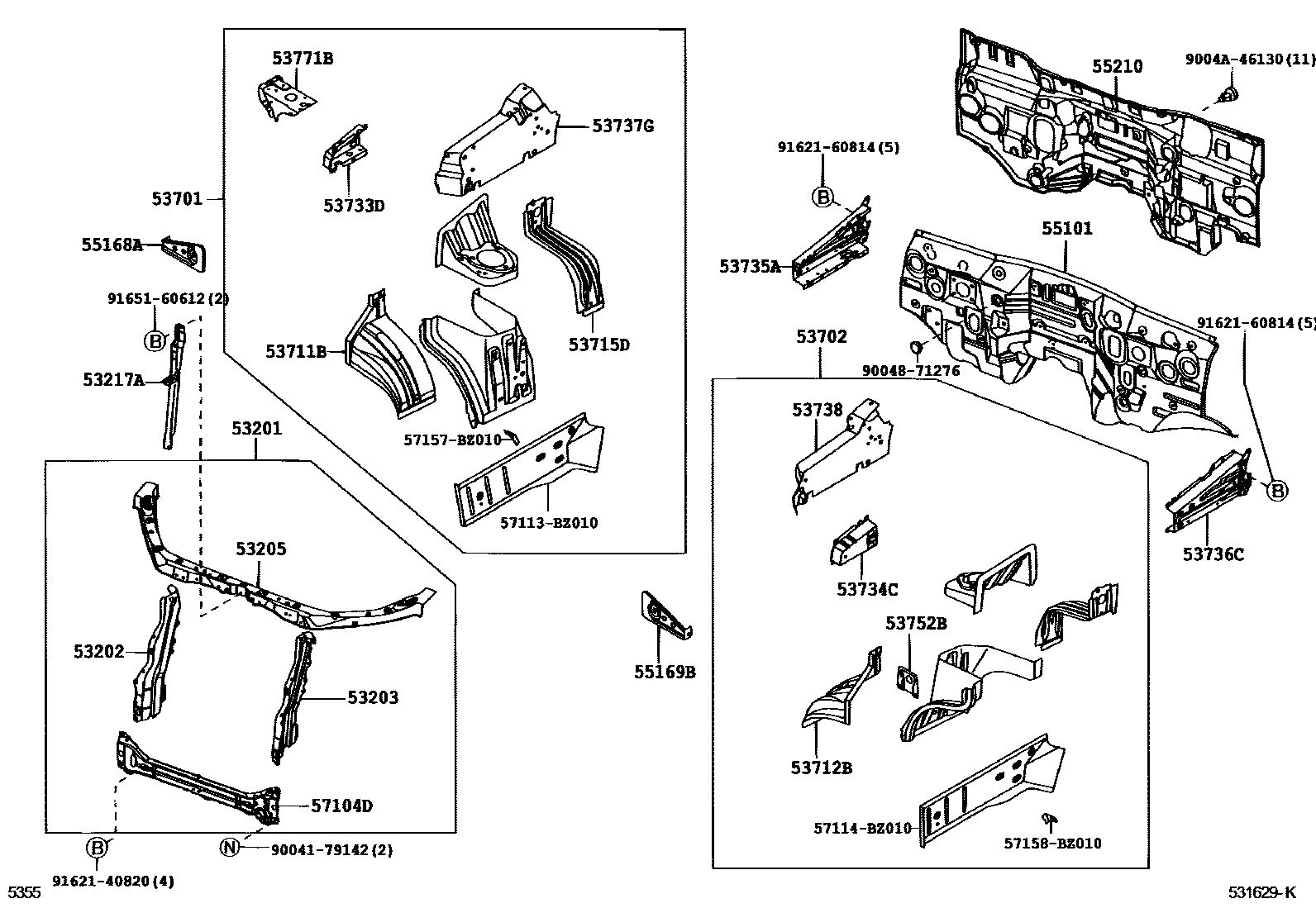

Toyota AVANZA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-BZ010iF601..LVVT200312-200608

main53201-BZ020iF601..BRU,TH200404-200608

main53201-BZ040iF601..5F..MA200410-200608

main53201-BZ050iF601..4AT..MA200410-200608

main53201-BZ090iF601..5F..MA200608

main53201-BZ100iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,SA,TH200608

main53201-BZ120iF601..4AT..IDN200609-201006

main53201-BZ210iF601..G..GEN;F601..5F..(IDN,PHL,SA)201006

main53201-BZ220iF601..4AT..IDN201006

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-BZ010iF601..5F;F601..4AT..(BRU,MA,TH)200312-200608

main53211-BZ160iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-BZ050iF601..4AT200608-200911

main53203-BZ160iF60#..GEN,IDN,MXC,PHL,SA,TH201009

main53212-BZ010iF601..4AT..(BRU,TH);F601..5F..(BRU,IDN,TH)200312-200608

main53212-BZ020iF601..MA200410-200608

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ010iF601..5F;F601..4AT..(BRU,MA,TH)200312-200608

main53205-BZ090iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53217ABRACE, HOOD LOCK SUPPORT

main53208-BZ010iF601200312-200608

main53208-BZ020iF601..4AT200608-200911

main53208-BZ060iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ020iF601200312-200608

main53701-BZ210iF60#..MA200608-200612

main53701-BZ300iF601..4AT200612-200911

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-BZ020iF601200312-200608

main53702-BZ220iF60#..GEN,IDN,MXC,PHL,SA,TH200608

main53702-BZ230iF601..4AT200609-200911

53711BAPRON, FRONT FENDER, FRONT RH

main53711-BZ010iF601200312-200608

main53711-BZ120iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53712BAPRON, FRONT FENDER, FRONT LH

main53712-BZ010iF601200312-200608

53715DAPRON, FENDER SIDE, RH

main53713-BZ010iF601..4AT200608-200911

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-BZ010iF601200312-200608

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200608

main53734-BZ011iF602..MA;F601..5F..MA200609

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-BZ010iF601..4AT200608-200911

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-BZ010iF601200312-200608

main53736-BZ011iF601..4AT200609-200911

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200608-201103

main53737-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-BZ010iF601200312-200608

main53738-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH201104

53752BBRACKET, WASHER TANK MOUNTING

main53261-87Z02iF601200312-200608

53771BSUPPORT, BATTERY CARRIER, RH

main53771-BZ010iF601200312-200608

main53771-BZ030iF60#..GEN,IDN,MXC,PHL,SA,TH201104

55101PANEL SUB-ASSY, DASH

main55101-BZ020iF601..LVVT200312-200608

main55101-BZ090iF601..5F..WVVT200404-200608

main55101-BZ100iF601..4AT..(BRU,IDN,TH)200404-200608

main55101-BZ110iF601..4AT..MA200410-200608

main55101-BZ450iF601..RHD..5F..(GEN,IDN,SA)200608-201009

main55101-BZ460iF602..RHD..5F200608

main55101-BZ470iF60#..RHD..4AT..(GEN,IDN,TH)200608-201009

main55101-BZ480iF601..LHD200608

main55101-BZ490iF602..5F..G200610

main55101-BZ500iF602..4AT..PHL200610

main55101-BZ510iF602..5F..MXC200610

main55101-BZ520iF602..LHD..4AT..(GEN,MXC)200610

main55101-BZ820iF601..RHD..5F..(GEN,IDN,SA)201009

main55101-BZD90iF60#..RHD..4AT..(GEN,IDN,TH)201009

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-BZ010iF601200312-200608

main55168-BZ110iF60#..GEN,IDN,MXC,PHL,SA,TH201104

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-BZ010iF601200312-200608

main55169-BZ080iF60#..GEN,IDN,MXC,PHL,SA,TH201104

55210INSULATOR ASSY, DASH PANEL

main55210-BZ020iF601..LVVT200312-200608

main55210-BZ030iF601..WVVT..(BRU,IDN,TH)200404-200608

main55210-BZ050iF601..MA200410-200608

main55210-BZ080iF60#..RHD..(GEN,IDN)200608

main55210-BZ090iF60#..SA,TH200608

main55210-BZ100iF60#..LHD200608

main55210-BZ140iF602..MA;F601..5F..MA200609

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-BZ010iF601..5F..(IDN,MA)200312-200608

main57104-BZ020iF601..BRU,TH200404-200608

main57104-BZ030iF601..4AT..MA200410-200608

main57104-BZ050iF601..5F..MA200608

main57104-BZ060iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,SA,TH200608

main57104-BZ070iF601..4AT200609-200911

main57104-BZ180iF601..G..GEN;F601..5F..(IDN,PHL,SA)201009

main57104-BZ190iF601..4AT..IDN201009

57113BZ010EXTENSION, FRONT SIDE MEMBER, RH

main57113-BZ010

57114BZ010EXTENSION, FRONT SIDE MEMBER, LH

main57114-BZ010

57157BZ010REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-BZ010

57158BZ010REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-BZ010

9004179142

main90041-79142

9004871276

main90048-71276

9004A46130

main9004A-46130

9162140820

main91621-40820

9162160814

main91621-60814

9165160612

main91651-60612

33 parts on this diagram · 2 diagrams in section
