Toyota AVANZA — FRONT DOOR WINDOW REGULATOR & HINGE

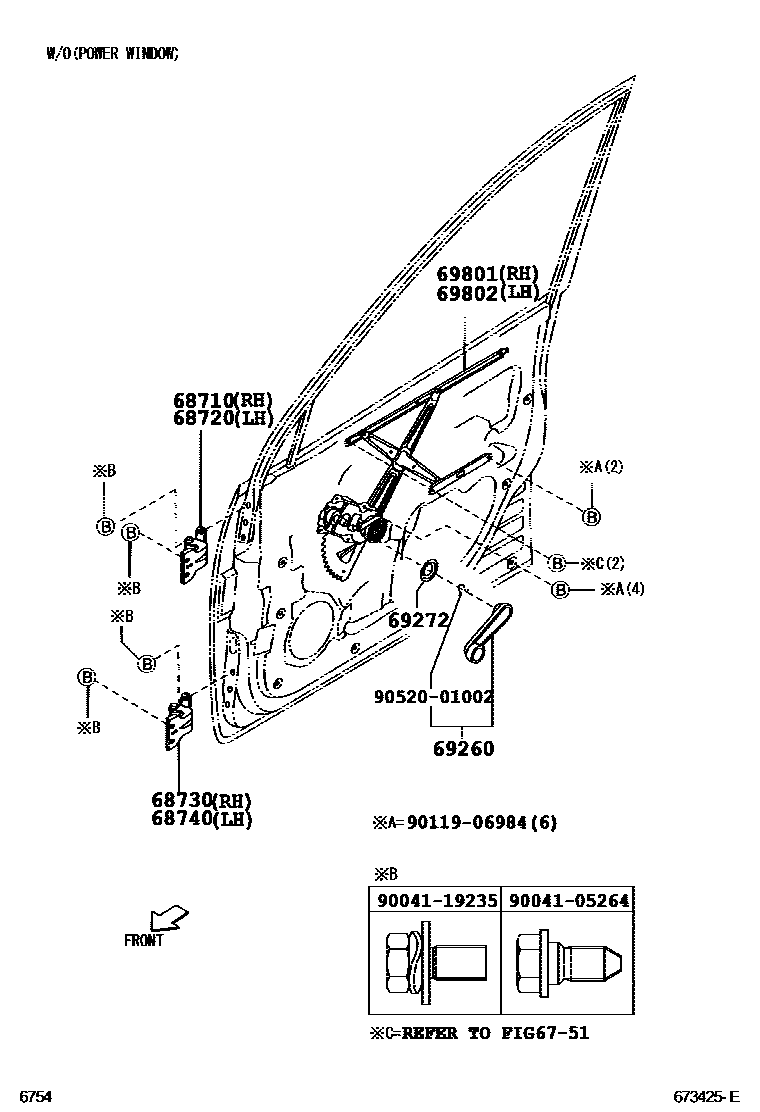

Parts diagram

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-BZ010×2i200312-200608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-BZ010i200312-200608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-BZ010i200312-200608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-BZ010i200312-200608

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87Z03-B0×2i200608

DK.GRAY,TRIM1#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-87201×2i200608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ010i200312-200608

main69810-BZ010i200608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ010i200312-200608

main69820-BZ010i200608

9004105264

main90041-05264

9004119235

main90041-19235

9011906984

main90119-06984

9052001002

main90520-01002

13 parts on this diagram · 2 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota AVANZA

This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota AVANZA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
