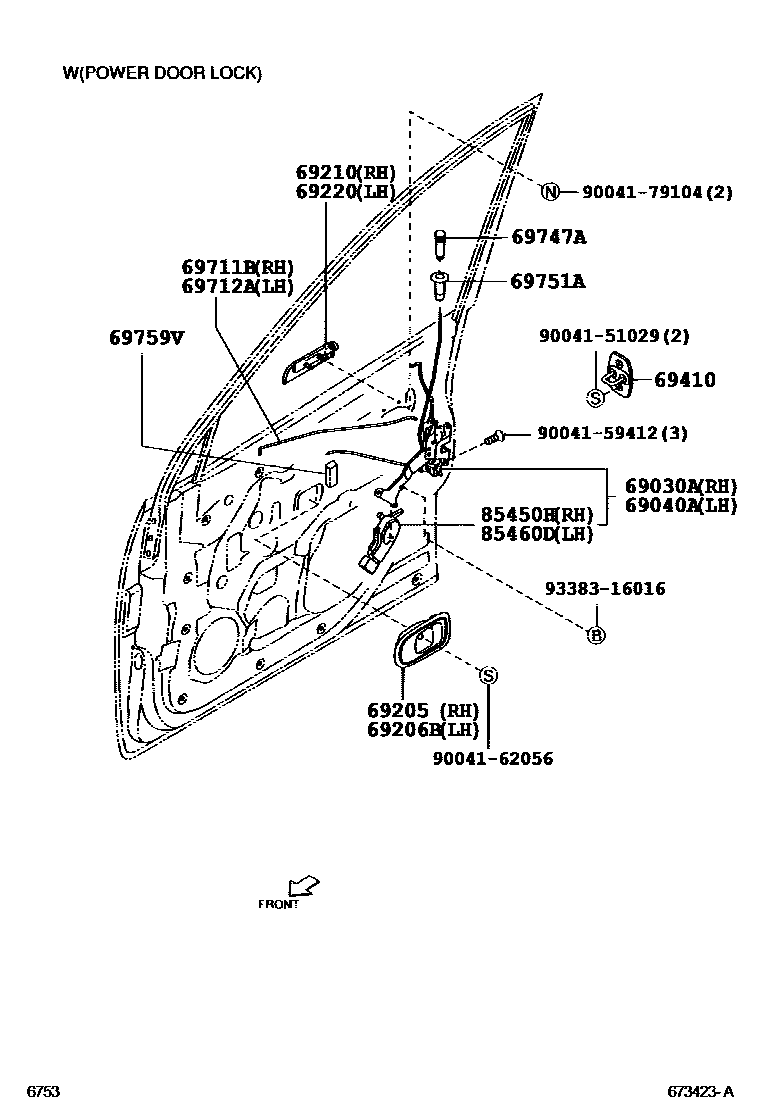

Toyota AVANZA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69270-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69280-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PLATED
PAINT REQ.
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PLATED
main69220-BZ160iF602..DLX;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200608-200911
PAINT REQ.
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
IVORY,TRIM0#
DK.GRAY,TRIM1#
GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69759VSILENCER, FRONT DOOR LOCK LINK
85450HMOTOR ASSY, DOOR CONTROL, FRONT RH
85460DMOTOR ASSY, DOOR CONTROL, FRONT LH
9004151029
main90041-51029
9004159412
main90041-59412
9004162056
main90041-62056
9004179104
main90041-79104
9338316016
main93383-16016
19 parts on this diagram · 3 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota AVANZA
This section contains 22 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota AVANZA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
