Toyota AVANZA — FRONT BUMPER & BUMPER STAY

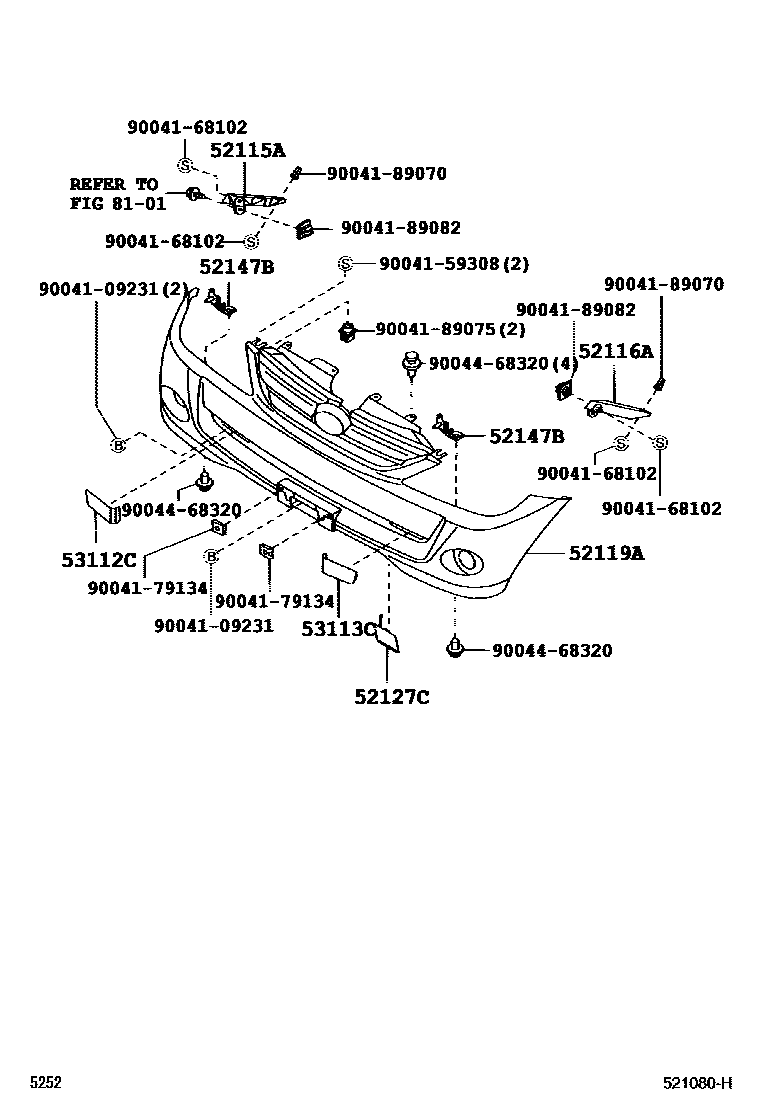

Parts diagram

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ010i200312-200608

main52115-BZ040i200608-200911

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ010i200312-200608

main52116-BZ040i200608-200911

52119ACOVER, FRONT BUMPER

main52119-BZ040i200312-200608

W/O(FOG LAMP)

main52119-BZ050i200312-200608

W(FOG LAMP , MOULDING)

main52119-BZ060i200404-200608

W(FOG LAMP)

main52119-BZ080i200512-200608

main52119-BZ330i200904

main52119-BZ340i200608-200903

main52119-BZ350i200608

52127CCOVER, FRONT BUMPER HOLE

main52127-BZ020i200408-200608

FOR STD BUMPER

main52127-BZ070i200408-200608

FOR AERO BUMPER

main52127-BZ140i200608

main52127-BZ150i200608-200911

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-BZ010×2i200312-200608

53112CGRILLE, RADIATOR, LOWER RH

main53112-BZ010i200312-200608

main53112-BZ040i200608-200911

main53112-BZ050i200608

main53112-BZ200i200608-201103

53113CGRILLE, RADIATOR, LOWER LH

main53113-BZ010i200312-200608

main53113-BZ030i200608-200911

main53113-BZ040i200608

main53113-BZ140i200608-201103

8101HEADLAMP

→ Go to FIG 81-01

9004109231

main90041-09231

9004159308

main90041-59308

9004168102

main90041-68102

9004179134

main90041-79134

9004189070

main90041-89070

9004189075

main90041-89075

9004189082

main90041-89082

9004468320

main90044-68320

16 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota AVANZA

This section contains 30 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota AVANZA. Key components include: SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE, BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH.
