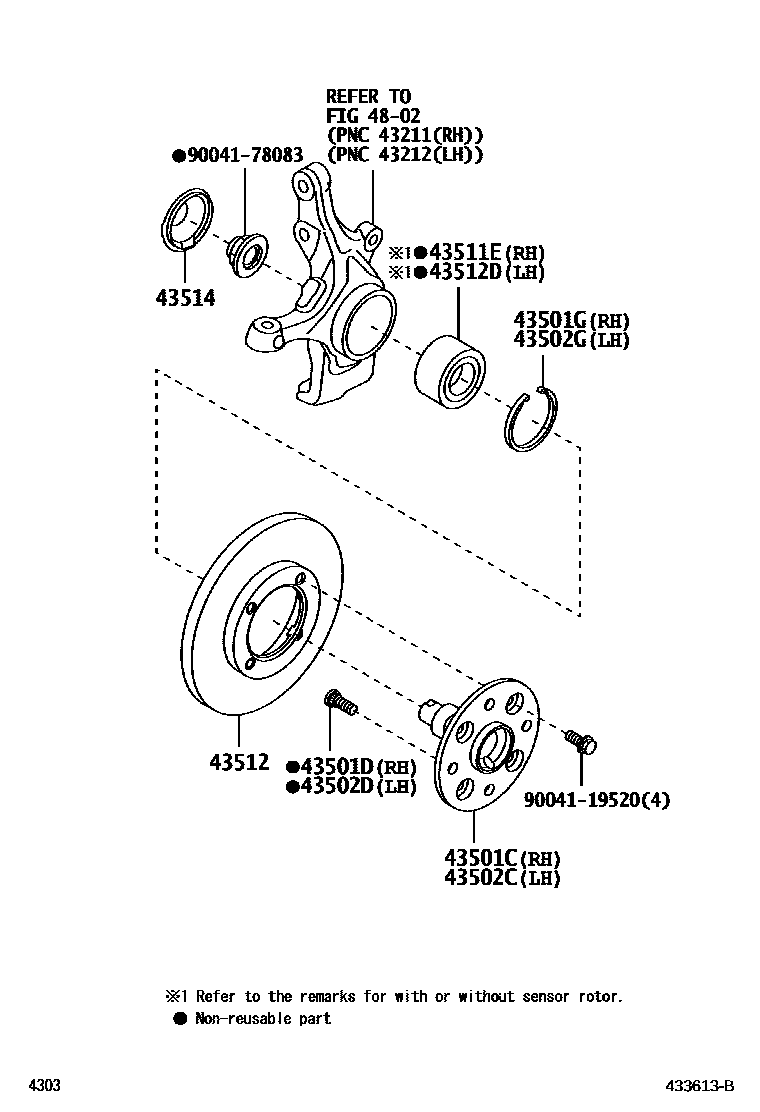

Toyota AVANZA — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43511-BZ090iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main43511-BZ170iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12030×4iF65#..IDN201111-201507

sub90049-12035

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111iF65#..IDN201111-201507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43511-BZ090iF65#..IDN201111-201507

main43511-BZ170iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12030×4iF65#..IDN201111-201507

sub90049-12035

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111iF65#..IDN201111-201507

43511EBEARING (FOR FRONT AXLE HUB RH)

main9004A-36091iF65#201703-201904

W/SENSOR ROTOR

main9004A-36093supersedes 9004A-36091iF651..LO..GEN;F651..IDN,MA,PHL;F652..STD..(MA,TH);F652..MID..(IDN,MXC)201111-201508

W/O SENSOR ROTOR

sub9004A-36090

main9004A-36094iF651..STD..GEN201305-201508

W/SENSOR ROTOR

43512DISC, FRONT

main43512-BZ170×2iF653..LHD..LO;F654..5F..MXC;F654..(SPO,STD)..MA;F654..4AT..(MID,STD)..(MXC,TH)201507-201904

main43512-BZ180×2iF65#..IDN201111-201507

main43512-BZ190×2iF651..SA;F652..GCC,GEN,PHL,SA;F651..LHD..(MID,STD)201111-201508

main43512-BZ280×2iF653..SA;F654..GCC,GEN,PHL,SA;F653..LHD..(MID,STD)201508-201904

43512DBEARING (FOR FRONT AXLE HUB LH)

main9004A-36091iF654..4AT..STD..TH;F653..LO,MID,SPO,VB;F653..STD..(GEN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901

W/SENSOR ROTOR

main9004A-36093supersedes 9004A-36091iF651..LO..GEN;F651..IDN,MA,PHL;F652..STD..(MA,TH);F652..MID..(IDN,MXC)201111-201508

W/O SENSOR ROTOR

sub9004A-36090

main9004A-36094iF651..STD..GEN201305-201508

W/SENSOR ROTOR

43514CAP, FRONT HUB GREASE

main43514-BZ040×2iF65#..IDN201111-201507

4802

9004119520

main90041-19520

9004178083

main90041-78083

13 parts on this diagram · 1 diagram in section
