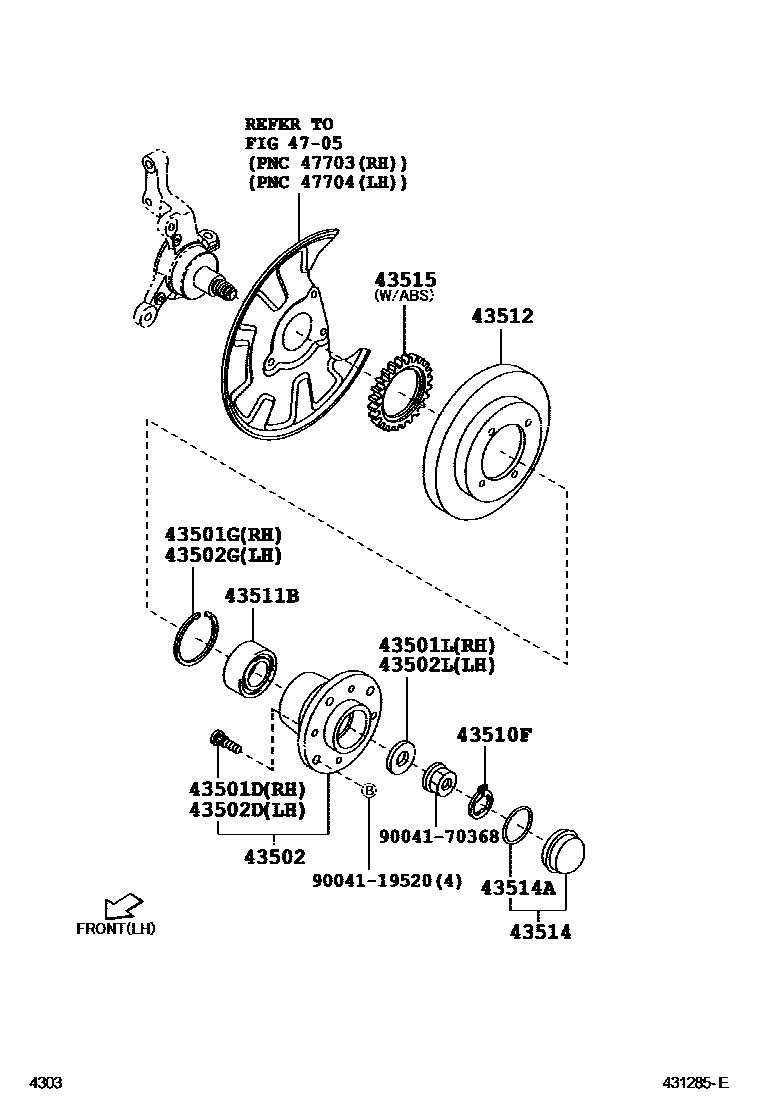

Toyota AVANZA — FRONT AXLE HUB

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12030×4iF601..4AT200608-200911

main90049-12035×4iF601200312-200608

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21187iF601..4AT200608-200911

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90042-01753iF601200312-200608

43502HUB SUB-ASSY, FRONT AXLE

main43502-BZ020×2iF601..CTM,E,G,J,STD;F602..(E,GL)..(MA,MXC);F60#..(DLX,J)..(GEN,TH)200608-200906

main43502-BZ030×2iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608-200906

main43502-BZ100×2iF602..IDN201111

INDONESIA 1.5G

main43502-BZ110×2iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,PHL,SA,TH)200906

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12030×4iF601..4AT200608-200911

main90049-12035×4iF601200312-200608

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21187iF601200312-200608

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90042-01753iF601..4AT200608-200911

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90045-20338×2iF601200312-200608

43511BBEARING (FOR FRONT AXLE HUB)

main9004A-36009×2iF60#200608-200811

main9004A-36087×2iF601..4AT200812-200911

sub9004A-36034

main9004A-36092iF60#..SA200608

FOR SOUTH AFRICA

43512DISC, FRONT

main43512-BZ020×2iF602..MXC;F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..RHD..(DLX,E,G,J,S)200608

sub43512-BZ180

main43512-BZ050×2iF602..(G,GL)..(GEN,SA)200608

sub43512-BZ190

43514CAP, FRONT HUB GREASE

main43514-BZ010×2iF601200312-200608

main43514-BZ050×2iF601..4AT200906-200911

43514ARING, O (FOR FRONT HUB GREASE CAP)

main90043-01354×2iF601..4AT200906-200911

43515ROTOR, SKID CONTROL, FRONT

main43515-B0010×2iF601..4AT..(BRU,IDN,TH)200404-200608

4705

9004119520

main90041-19520

9004170368

main90041-70368

16 parts on this diagram · 1 diagram in section
