Toyota AVANZA — FOG LAMP

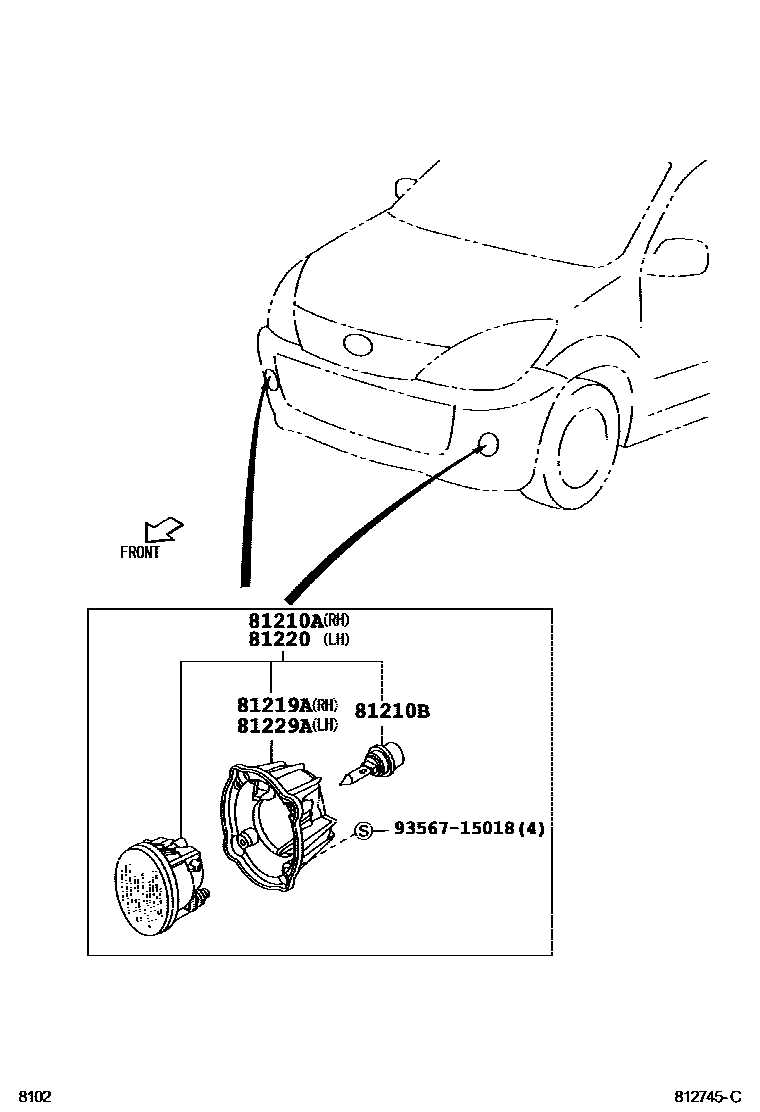

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-0D040i200608-200701

main81210-0D041i200702-200911

main81210-0D042i201009

main81210-BZ010i200312-200608

main81210-BZ100i201008

81210BBULB, FOG LAMP

main9004A-81008×2i201008-201111

main90080-81040×2i200312-200608

12V 51W

main90981-13075i200702

12V 55W,HALOGEN,PHILIPS

main90981-13081i200702-200911

12V 55W,HALOGEN,OSRAM

main90981-WD011i200608-200702

12V 55W,12V 55W OSRAM

main90981-WD012i200608-200702

12V 55W,12V 55W PHILIPS

81219ABRACKET, FOG LAMP, RH

main81219-BZ010i200312-200608

main81219-BZ030i200608-200911

81220LAMP ASSY, FOG, LH

main81220-0D040i200608-200701

main81220-0D041i200702-201008

main81220-0D042i201009

main81220-BZ010i200312-200608

main81220-BZ100i201008

81229ABRACKET, FOG LAMP, LH

main81229-BZ010i200312-200608

main81229-BZ020i200608-200911

9356715018

main93567-15018

6 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota AVANZA

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota AVANZA. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, BRACKET, FOG LAMP, RH, LAMP ASSY, FOG, LH, BRACKET, FOG LAMP, LH.
