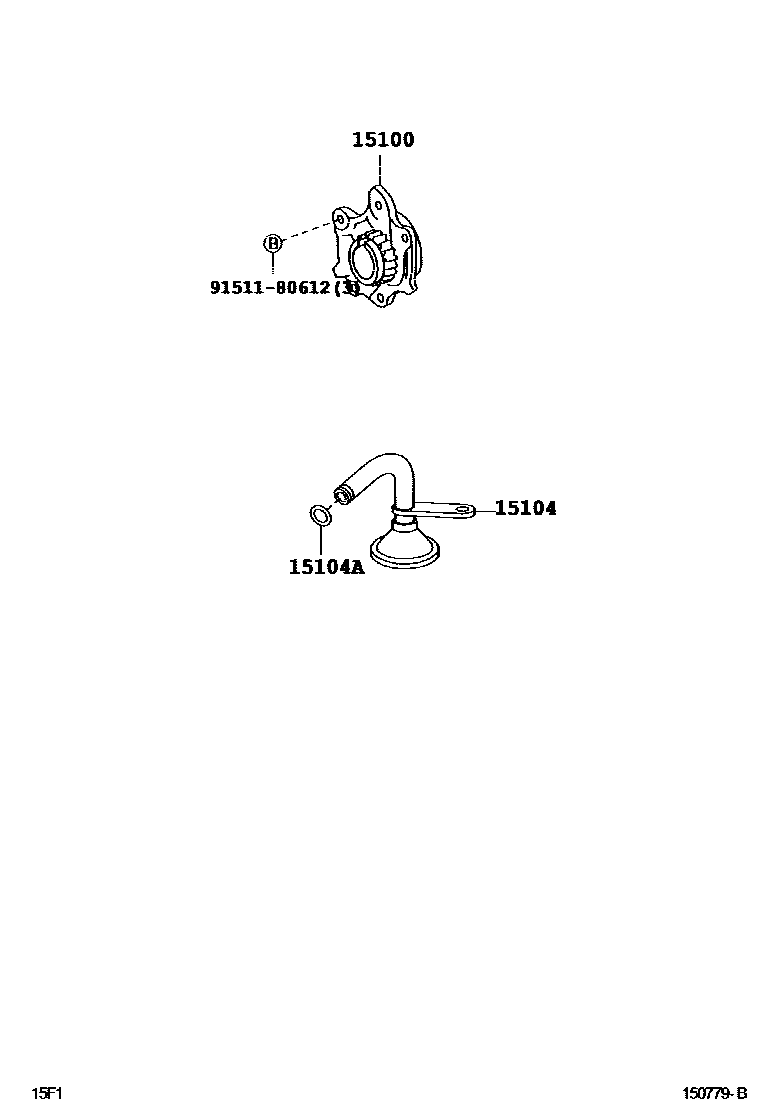

Toyota AVANZA — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-97401i200312-200608

main15100-B0020i200608

15104STRAINER SUB-ASSY, OIL

main15140-97403i200312-200608

main15140-B0010i200608-200911

15104ARING, O(FOR OIL STRAINER)

main96721-24016i200312-200512

main96723-24016i200512-200608

9151180612

main91511-80612

4 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota AVANZA

This section contains 5 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota AVANZA. Key components include: PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER).
