Toyota AVANZA — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

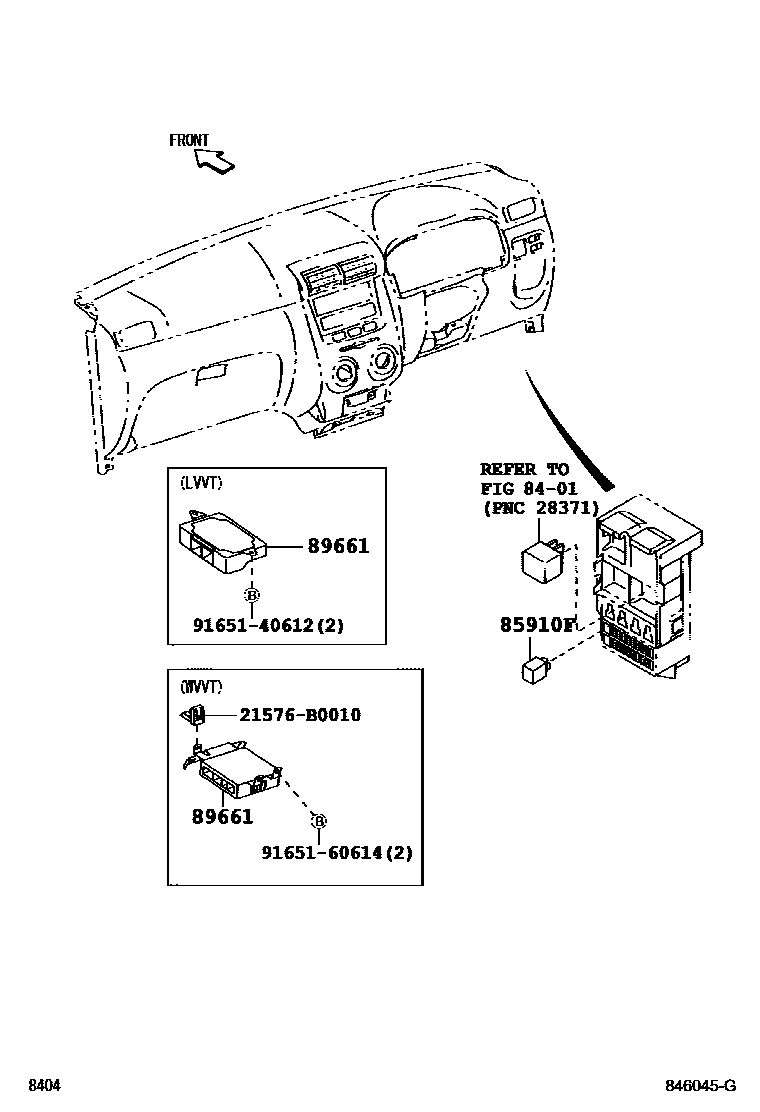

8401

85910FRELAY, COMPUTER (FOR EFI)

main9004A-98006iF601..BRU,IDN,TH200312-200608

main9004A-98017iF601..MA200412-200608

89661COMPUTER, ENGINE CONTROL

main89560-B0010iF601..LIMD,S;F601..5F..TH200404-200505

main89560-B0011iF601..WVVT..(BRU,IDN)200510-200608

main89560-B0020iF601..MA200410-200510

main89560-B0021iF601..MA200510-200601

main89560-B0022iF601..MA200601-200608

main89560-BZ021iF601..LVVT200312-200510

main89560-BZ022iF601..LVVT200510-200604

main89560-BZ050iF601..TH200505-200510

main89560-BZ051iF601..TH200510-200608

main89560-BZ150iF601..PHL200608

main89560-BZ151iF601..RHD..(GEN,IDN)200809

main89560-BZ160iF602..PHL;F602..S..(GEN,IDN)200608

main89560-BZ170iF602..TH200608-200810

IDENTIFICATION NO.17

main89560-BZ171iF602..TH200810

IDENTIFICATION NO.8D

main89560-BZ180iF601..5F..MA200609

main89560-BZ190iF602..MA200609

main89560-BZ200iF601..SA200608

main89560-BZ210iF602..SA200608

main89560-BZ220iF601..DLX..GEN200608

main89560-BZ230iF602..G..GEN200610

main89560-BZ240iF602..5F..MXC200610-200810

main89560-BZ250iF602..4AT..MXC200610-200810

main89560-BZ340iF601..LVVT200604-200608

main89560-BZ790iF602..5F..MXC200810

main89560-BZ800iF602..4AT..MXC200810

21576B0010CLIP, PUMP STRAINER

main21576-B0010

9165140612

main91651-40612

9165160614

main91651-60614

6 parts on this diagram · 5 diagrams in section
