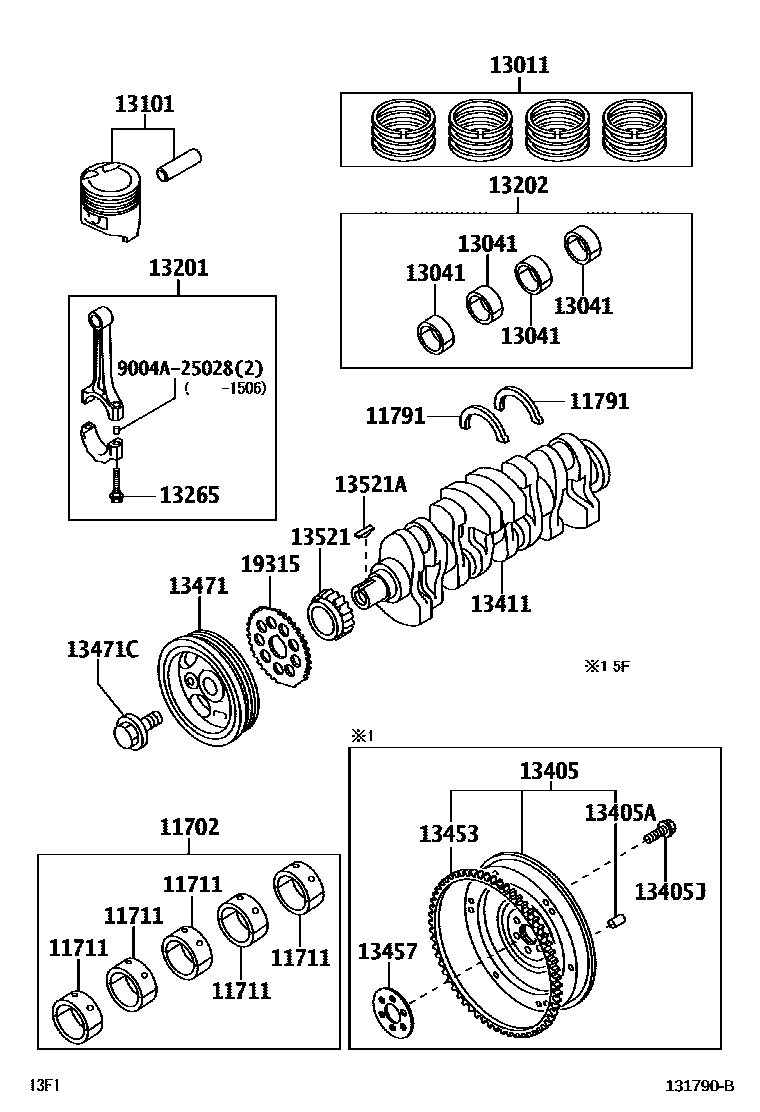

Toyota AVANZA — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2
main11701-0Y030-03×5i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901
MARK3
main11701-0Y030-04×5i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
MARK4
main11701-0Y030-05×5i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901
MARK5
MARK2
MARK3
MARK4
MARK5
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-B0010×2i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904
STD
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
main13011-0Y030i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
STD
STD
STD
STD
O/S 0.50,DOMESTIC PRODUCTION
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
main13041-0Y040-01×4i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
MARK1
main13041-0Y040-02×4i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904
MARK2
MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD
O/S 0.50,EXPORT PRODUCTION
O/S 0.50,DOMESTIC PRODUCTION
O/S 0.50
STD
STD
STD
STD
13201ROD SUB-ASSY, CONNECTING
LOCAL SOURCED PARTS
main13201-B9095×4i2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
ADM ONLY
13202BEARING SET, CONNECTING ROD
U/S 0.25,JAPAN SOURCED PARTS
U/S 0.25
U/S 0.25,LOCAL SOURCED PARTS
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=20,OD=8
13405JBOLT(FOR FLYWHEEL)
13411CRANKSHAFT
main13401-BZ100i2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201801-201901
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13471PULLEY, CRANKSHAFT
main13470-BZ070i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-T0444i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201612-201901
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0Y040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-04001i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
19315PLATE, CRANK ANGLE SENSOR, NO.1
9004A25028
main9004A-25028
21 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota AVANZA
This section contains 24 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota AVANZA. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
