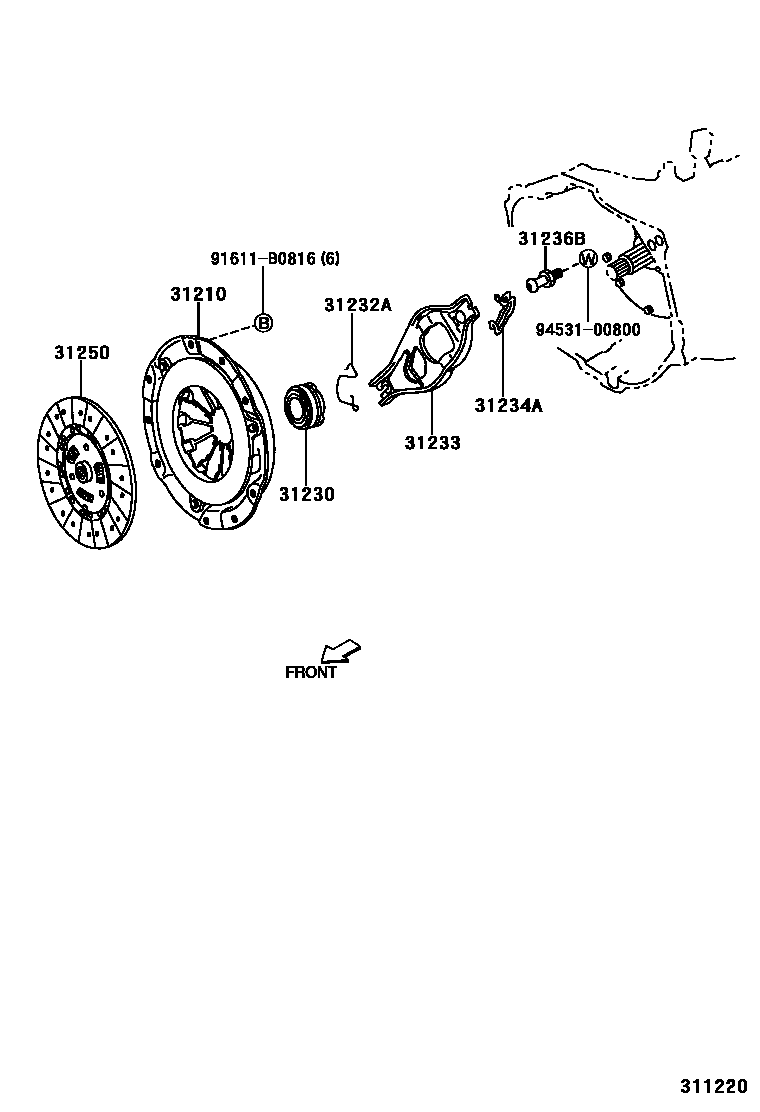

Toyota AVANZA — CLUTCH & RELEASE FORK

0001 1 0002 1

31210COVER ASSY, CLUTCH

main31210-BZ020iF601..5F200312-200608

sub31210-BZ021

main31210-BZ080iF602..5F200608-201009

main31210-BZ081iF602..5F201009

31230BEARING ASSY, CLUTCH RELEASE

main31230-87507iF60#..5F200608-200610

KOYO

sub31230-B4010

main31230-97502iF601..5F200312-200507

NSK

sub31230-B4010

main31230-BZ010iF60#..5F200610-201103

main31230-BZ060iF60#..5F201103

31232ACLIP, RELEASE BEARING HUB

main31232-87401iF602..5F200608-200610

main31232-87505iF601..5F200312-200608

main31232-BZ010iF601..5F200610-201006

main31232-BZ020iF602..5F200610-201104

main31232-BZ040iF601..5F201006

main31232-BZ080iF602..5F201104

31233FORK, CLUTCH RELEASE

main31233-87402iF602..5F200608-200610

main31233-B0010iF601..5F200312-200608

main31233-BZ020iF601..5F200610

sub31233-BZ040

main31233-BZ030iF602..5F200610

sub31233-BZ050

31234ASPRING, RELEASE FORK SUPPORT

main31234-87402iF601..5F200312-200608

main31234-BZ010iF60#..5F200610-201104

main31234-BZ030iF60#..5F201104

sub31234-BZ031

31236BSUPPORT, RELEASE FORK

main31236-87401iF602..5F200608-200610

main31236-B0010iF601..5F200312-200608

main31236-BZ010iF602..5F200610

main31236-BZ020iF601..5F200610

31250DISC ASSY, CLUTCH

main31250-BZ020iF601..5F200312-200604

main31250-BZ080iF602..5F200608

main31250-BZ130iF601..5F200604-200608

91611B0816

main91611-B0816

9453100800

main94531-00800

9 parts on this diagram · 2 diagrams in section
