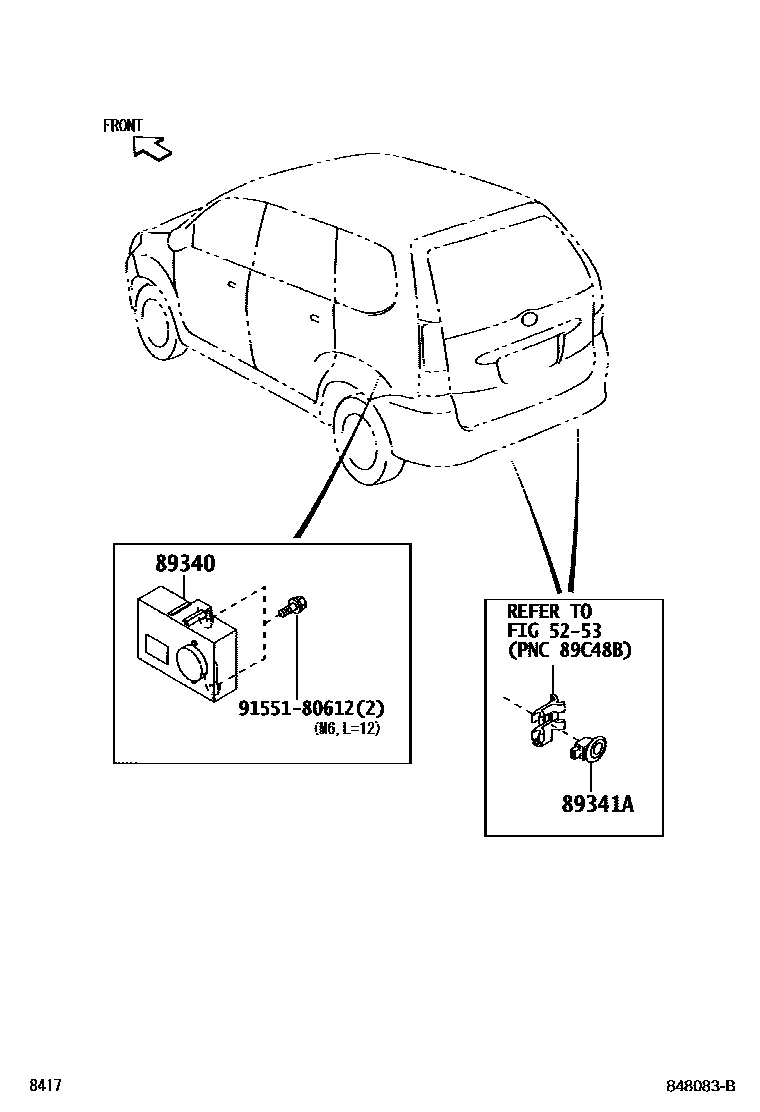

Toyota AVANZA — CLEARANCE & BACK SONAR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-BZ020i200410-200608

89341ASENSOR, ULTRASONIC, NO.1

main89341-BZ020×2i200410-200608

main89341-BZ090×2i200811-200911

9155180612

main91551-80612

4 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota AVANZA

This section contains 4 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota AVANZA. Key components include: REAR BUMPER & BUMPER STAY, COMPUTER ASSY, REAR CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1.
