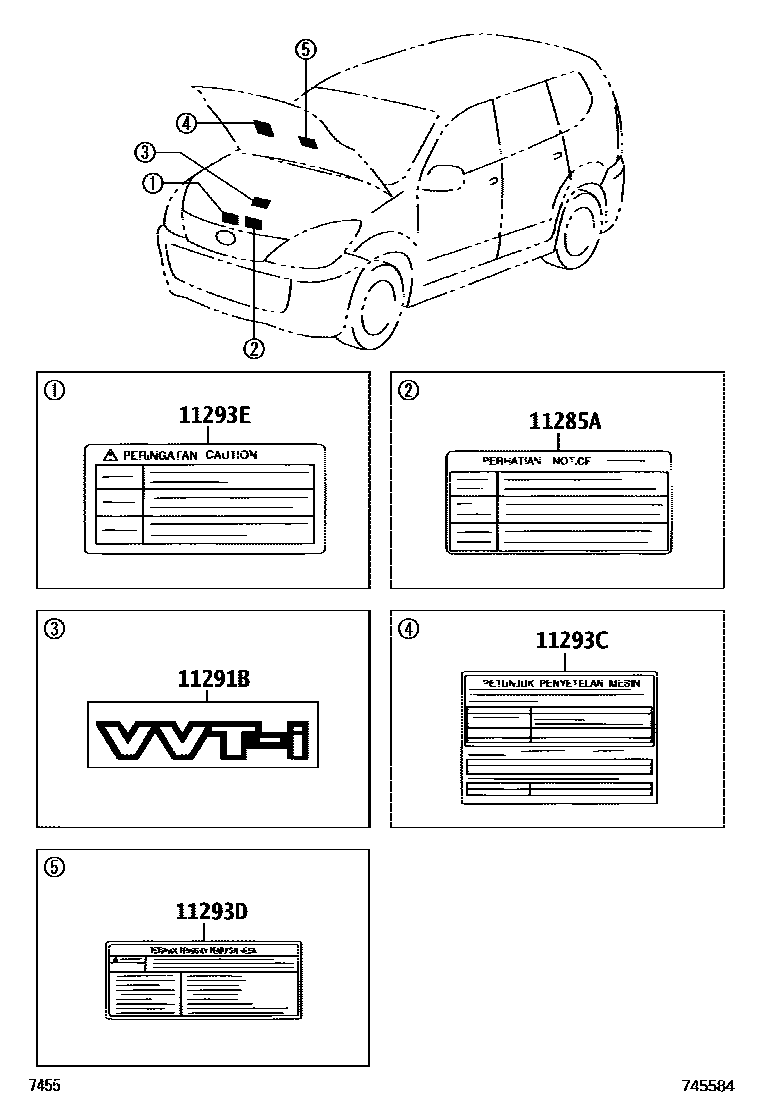

Toyota AVANZA — CAUTION PLATE

0001 1 0002 1 0004 1 0006 1 0008 1 0009 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-BZ010iK3#..F601200405-200608

11291BPLATE, ENGINE NAME

main11288-BZ010iK3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH200707

11293CLABEL, TUNE-UP SPECIFICATION INFORMATION

main11293-BZ030iK3#..F601..IDN200312-200608

main11293-BZ040iK3VE..F601..4AT200704-200911

main11293-BZ110i3SZVE..F602..TH200608

main11293-BZ120iK3VE,3SZVE..F60#..GEN,PHL,SA200704

main11293-BZ230i3SZVE..F602..MXC200610

FOR MEXICO

11293DLABEL, ENGINE CAUTION

main11293-87Z52iK3VE..F601..BRU,MA200410-200608

main11293-BZ020iK3VE,3SZVE..F60#..IDN200608

main11293-BZ080iK3VE..F601..IDN200408-200608

main11293-BZ130iK3VE..F601..TH200405-200502

main11293-BZ150iK3DE..F601200312-200404

main11293-BZ160i3SZVE..F602..TH200608

main11293-BZ220iK3VE..F601..4AT200608-200911

11293ELABEL, ENGINE CAUTION, NO.2

main11293-BZ090iK3DE..F601;K3VE..F601..G,GL,LIMD,S200312-200608

5 parts on this diagram · 6 diagrams in section
