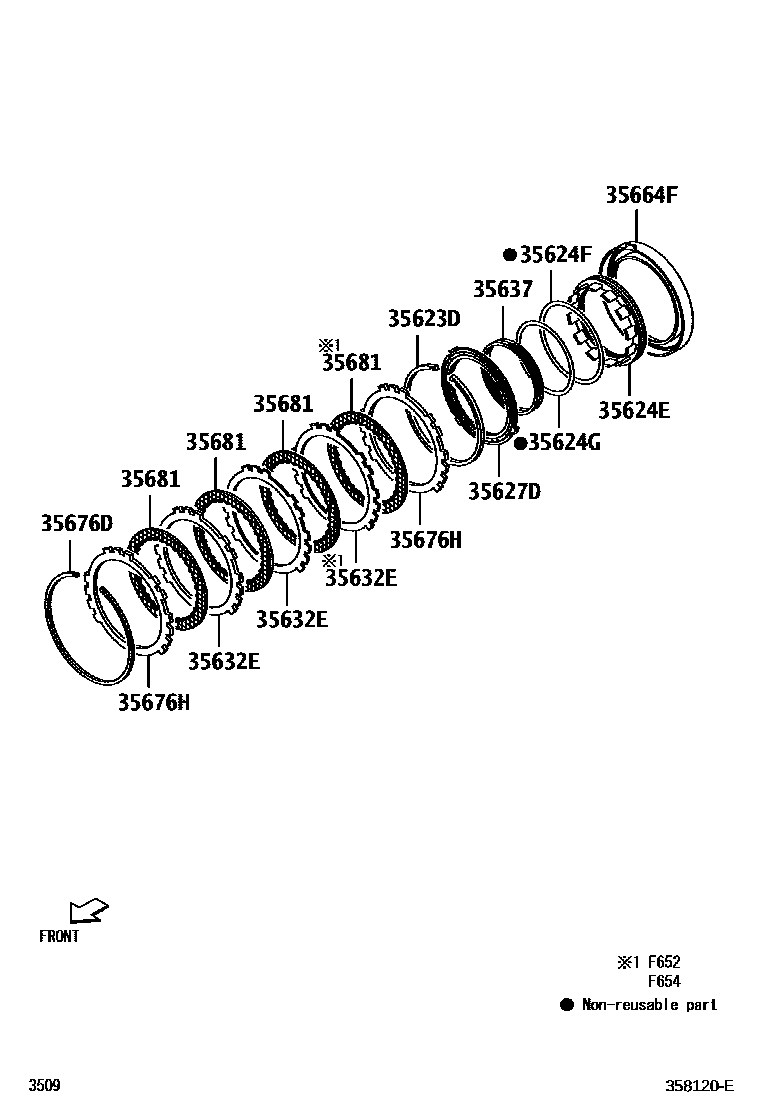

Toyota AVANZA — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35623DRING, SHAFT SNAP (FOR BRAKE)

main90045-21185i201111-201508

35624EPISTON, 2ND BRAKE

main35624-97201i201507-201904

main35624-97206i201901-202110

35624FRING, O (FOR 2ND BRAKE PISTON)

main90043-01295i201111-201507

35624GRING, O (FOR 2ND BRAKE PISTON)

main90043-01296i201111-201507

35627DSEAT, BRAKE RETURN SPRING

main35627-97202i201111-201507

35632EPLATE, BRAKE

main35632-97201×2i201111-201507

35637SPRING, 2ND & 4TH BRAKE PISTON RETURN

main35637-97201i201507-201904

35664FCYLINDER, 2ND & 4TH BRAKE

main35664-97205i201507-201904

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90045-21176i201111-201508

T=1.20

main90045-21177i201111-201508

T=1.75

main90045-21178i201507-201904

T=2.00

main90045-21179i201901

T=2.25

35676HFLANGE, BRAKE, NO.1

main35676-97202×2i201111-201507

35681DISC, BRAKE, NO.1

main35681-97201×3i201111-201507

11 parts on this diagram · 1 diagram in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota AVANZA

This section contains 11 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota AVANZA. Key components include: RING, SHAFT SNAP (FOR BRAKE), PISTON, 2ND BRAKE, RING, O (FOR 2ND BRAKE PISTON), SEAT, BRAKE RETURN SPRING.
