Toyota AVANZA — BATTERY CARRIER

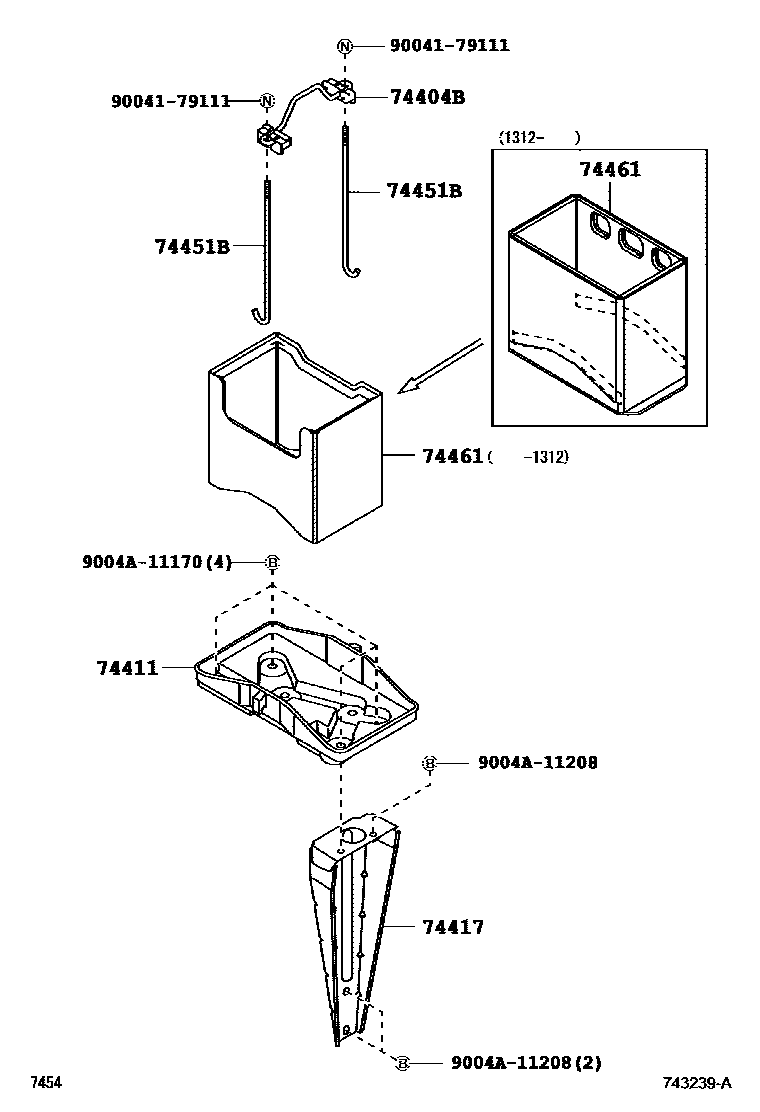

Parts diagram

74404BCLAMP SUB-ASSY, BATTERY

main74404-BZ010i201111-201507

main74404-BZ100i201507-201901

74411CARRIER, BATTERY

main74411-BZ010i201111-201507

main74411-BZ090i201507-201901

74417BRACKET, BATTERY CARRIER

main74417-BZ070i201111-201507

74451BBOLT, BATTERY CLAMP

main74451-87Z07×2i201111-201507

main74451-BZ070i201507-201901

74461COVER, BATTERY

main74405-B1010i201111-201211

main74405-BZ020i201212-201312

main74405-BZ030i201312-201507

main74405-BZ080i201507-201901

9004179111

main90041-79111

9004A11170

main9004A-11170

9004A11208

main9004A-11208

8 parts on this diagram · 2 diagrams in section

BATTERY CARRIER for Toyota AVANZA

This section contains 11 genuine Toyota parts for the BATTERY CARRIER system of the Toyota AVANZA. Key components include: CLAMP SUB-ASSY, BATTERY, CARRIER, BATTERY, NUT, WING (FOR BATTERY CLAMP BOLT), BRACKET, BATTERY CARRIER, BOLT, BATTERY CLAMP.
