Toyota AVANZA — BACK DOOR PANEL & GLASS

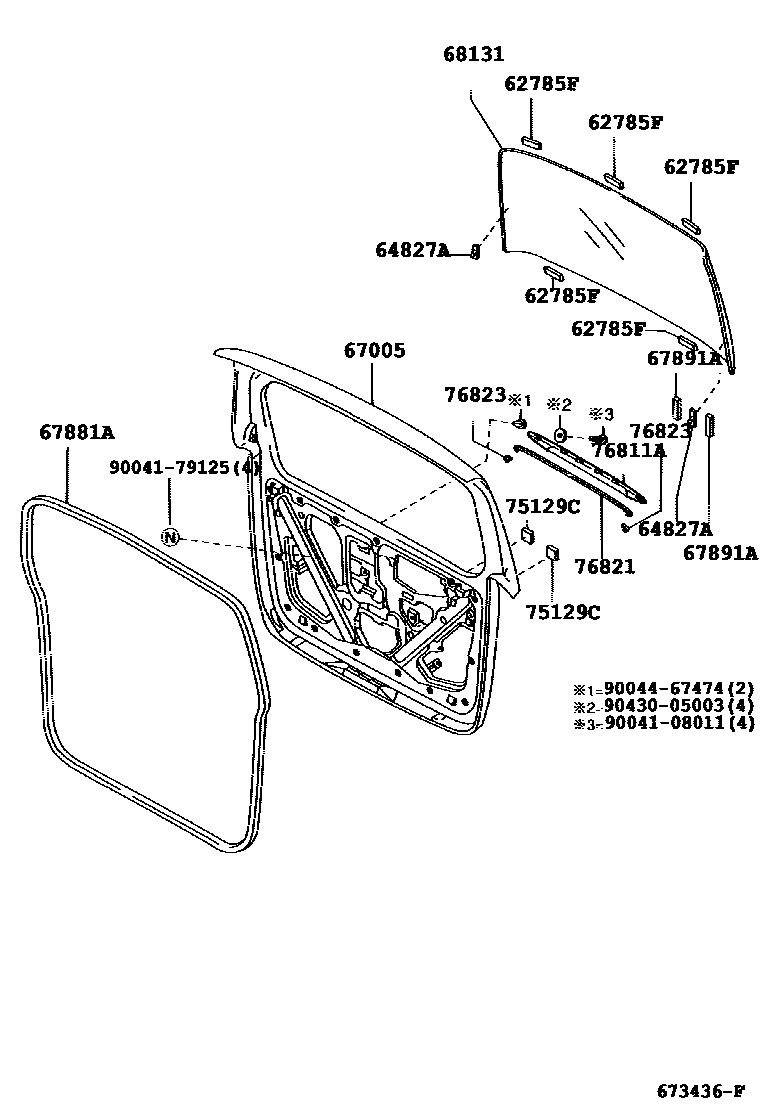

Parts diagram

62785FSPACER, BACK DOOR GLASS

main62785-87401×5i200608-200911

main62785-BZ060×5i200807

64827ACLIP, BACK WINDOW GLASS, RH

main64827-87Z01×2i200312-200608

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZ020i200608

W/WIPER

main67005-BZ030i200608-201103

W/SPOILER

main67005-BZ040i200608

main67005-BZ050i200706-201103

W/WIPER

main67005-BZ060i200608

main67005-BZ160i200608

main67005-BZ240i200610-200702

main67005-BZ370i200610

main67005-BZ380i200608

main67005-BZ390i200702

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ010i200608-200911

67891ASEAL, BACK DOOR

main67891-BZ010×2i200608-200911

68131GLASS, BACK DOOR

main68105-BZ020i200609-200911

main68105-BZ030i200608

main68105-BZ040i200608-200810

GREEN(T=3.1)

main68105-BZ050i200608-200902

GREEN(T=3.1)

main68105-BZ051i200903

SMOKE

main68131-BZ010i200608-200810

main68131-BZ060i200710

75129CCUSHION, REAR LICENCE PLATE

main75129-87502×2i200608-200806

main75129-BZ010×2i200807

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-BZ020i200312-200608

main76811-BZ100i200608

main76811-BZ110i200608

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-BZ010i200312-200608

main76821-BZ020i200608-200911

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-BZ010×2i200312-200608

main76823-BZ020×2i200608-200911

9004108011

main90041-08011

9004179125

main90041-79125

9004467474

main90044-67474

9043005003

main90430-05003

14 parts on this diagram · 3 diagrams in section

BACK DOOR PANEL & GLASS for Toyota AVANZA

This section contains 19 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota AVANZA. Key components include: SPACER, BACK DOOR GLASS, PANEL ASSY, BACK DOOR TRIM, RETAINER(FOR BACK DOOR TRIM BOARD), CLIP, BACK WINDOW GLASS, RH, PANEL SUB-ASSY, BACK DOOR.
