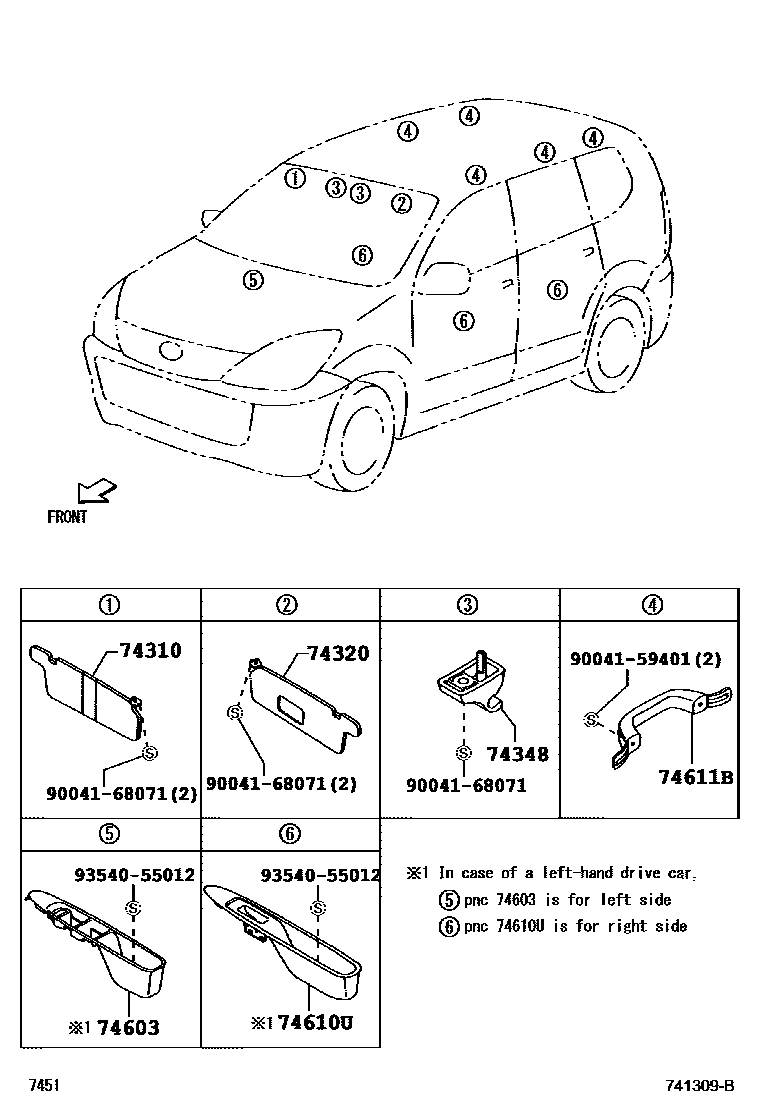

Toyota AVANZA — ARMREST & VISOR

0001 1 0002 1

74310VISOR ASSY, RH

main74310-BZ010-A0iF602..E,J;F601..E,G,STD;F602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main74310-BZ010-B0iF601..E,G,GL,LIMD200312-200608

LT.GRAY,TRIM1#

main74310-BZ010-E0iF602..E,J;F601..5F..MA;F60#..RHD..(GEN,IDN)200810

GREGE,TRIM4#

main74310-BZ060-B0iF601..S200409-200608

LT.GRAY,TRIM1#

main74310-BZ110-B0iF601..LHD200608

LT.GRAY,TRIM1#

main74310-BZ120-A0iF601..DLX..SA200608-200810

IVORY,TRIM0#

main74310-BZ120-B0iF60#..(DLX,G,GL,S)..(MA,SA)200810

LT.GRAY,TRIM1#

main74310-BZ120-E0iF602..(G,S)..MA200811-201007

GREGE,TRIM4#

main74310-BZ130-A0iF602..LHD200610-200810

IVORY,TRIM0#

main74310-BZ130-E0iF602..LHD200810

GREGE,TRIM4#

74320VISOR ASSY, LH

main74320-BZ010-A0iF601..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#

main74320-BZ010-B0iF601..E..IDN200312-200608

GRAY,TRIM1#

main74320-BZ010-E0iF601..(E,XI)..IDN200810

GREGE,TRIM4#

main74320-BZ020-A0iF602..E,J;F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA)200608-200810

IVORY,TRIM0#

main74320-BZ020-B0iF602..RHD..(DLX,G,GL)200810

LT.GRAY,TRIM1#

main74320-BZ020-E0iF602..E,J;F601..5F..MA;F60#..RHD..(G,S)..(GEN,IDN)200810

GREGE,TRIM4#

main74320-BZ090-B0iF601..DLX..GEN200608

LT.GRAY,TRIM1#

main74320-BZ110-A0iF602..G..GEN200610-200810

IVORY,TRIM0#

main74320-BZ110-E0iF602..G..GEN200810

GREGE,TRIM4#

main74320-BZ120-A0iF602..MXC200610-200810

IVORY,TRIM0#

main74320-BZ120-E0iF602..MXC200810

GREGE,TRIM4#

main74320-BZ140-A0iF602..PHL200610-200705

IVORY,TRIM0#

main74320-BZ300-B0iF601..PHL200705

LT.GRAY,TRIM1#

main74320-BZ310-A0iF602..PHL200705-200810

IVORY,TRIM0#

main74320-BZ310-E0iF602..PHL200810

GREGE,TRIM4#

74348HOLDER, VISOR

main74348-87Z01-A0×2iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200608-200810

IVORY,TRIM0#

main74348-87Z01-B0×2iF601..CTM,J;F601..DLX..GEN;F602..S..(MA,TH)200608

LT.GRAY,TRIM1#

main74348-87Z01-E0×2iF602..G..MA200811-201007

GREGE,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74641-BZ010-B0iF601..E,G,GL200312-200608

DK.GRAY,TRIM1#,DRIVER.

main74641-BZ010-E0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

SANDAL WOOD,TRIM0#,DRIVER.

main74641-BZ010-E1iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200810

ASH BROWN,TRIM4#,DRIVER.

main74641-BZ020-B0iF601..S200408-200608

DK.GRAY,TRIM1#,DRIVER.

main74641-BZ030iF601..LIMD200412-200608

DRIVER.

main74641-BZ060-E0iF602..MXC200610-200810

SANDAL WOOD,TRIM0#,DRIVER.

main74641-BZ080-E0iF602..MXC200810

ASH BROWN,TRIM4#,DRIVER.

74610UGRIP ASSY, ASSIST

main74642-BZ010-B0×3iF602..S..TH;F602..(DLX,E,G,S)..(MA,SA);F601..5F..(DLX,E,STD)..(MA,SA)200610

DK.GRAY,TRIM1#

main74642-BZ010-E0×3iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

SANDAL WOOD,TRIM0#

main74642-BZ010-E1×3iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200810

ASH BROWN,TRIM4#

main74642-BZ020-B0×3iF601..S200408-200608

DK.GRAY,TRIM1#

main74642-BZ030×3iF601..LIMD200412-200608

main74642-BZ060-E0×3iF602..MXC200610-200810

SANDAL WOOD,TRIM0#

main74642-BZ080-E0×3iF602..MXC200810

ASH BROWN,TRIM1#

74611BGRIP, ASSIST

main74611-87Z06-B0×3iF601..E..IDN200312-200608

LT.GRAY,TRIM1#

main74611-BZ060-A0×3iF602..(DLX,G)..(PHL,SA);F601..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#

main74611-BZ060-B0×5iF602..GL..SA200706

LT.GRAY,TRIM1#

main74611-BZ060-E0×5iF601..G;F601..5F..MA;F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,TH)200810

GREGE,TRIM4#

9004159401

main90041-59401

9004168071

main90041-68071

9354055012

main93540-55012

9 parts on this diagram · 2 diagrams in section
