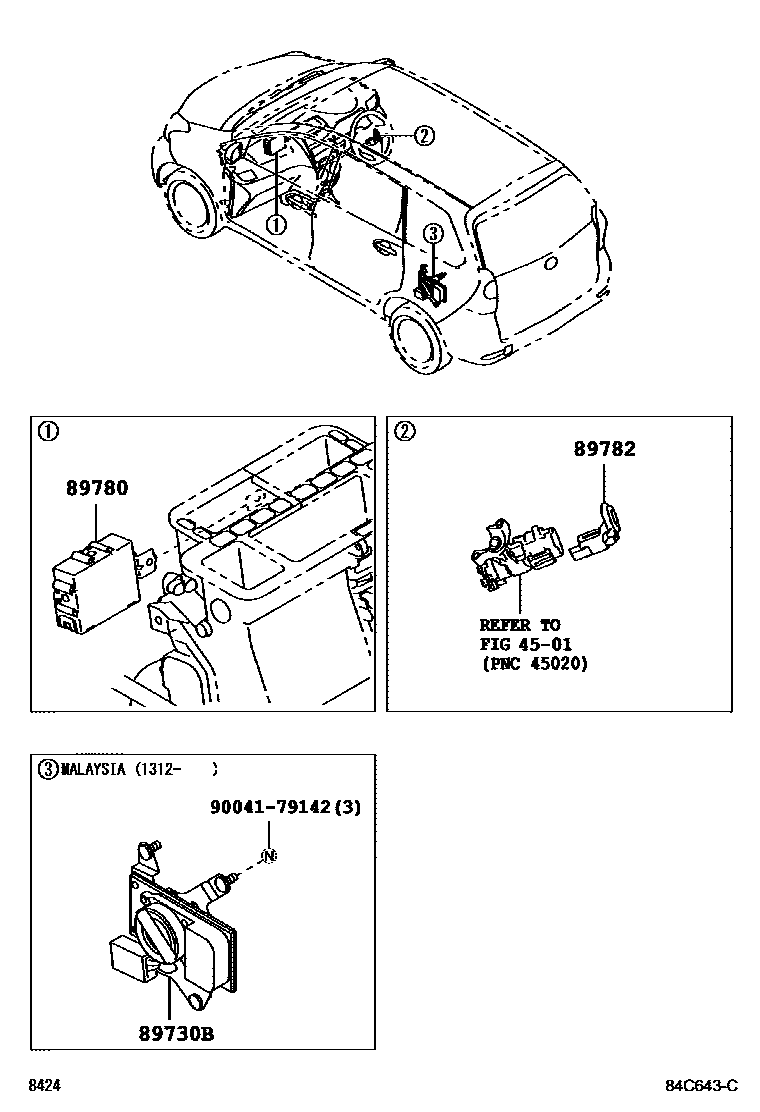

Toyota AVANZA — ANTI-THEFT DEVICE
4501STEERING COLUMN & SHAFT
89730BCOMPUTER ASSY, THEFT WARNING
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-BZ140iF654..SPO..PHL;F653..STD..(MA,SA);F654..GCC,IDN,MA,MXC,SA,TH;F653..RHD..(LO,MID,SPO,VB)201507-201904
main89780-BZ141iF653..STD..SA;F654..SPO..(MA,PHL);F653..RHD..(LO,MID,VB);F654..(MID,STD)..(GCC,IDN,MA,MXC,PHL,SA,TH)202011-202210
89782COIL, TRANSPONDER KEY
G+THATCHAM
main89782-BZ080iF654..SPO..PHL;F653..STD..(MA,SA);F654..GCC,IDN,MA,MXC,SA,TH;F653..RHD..(LO,MID,SPO,VB)201507-201904
9004179142
main90041-79142
5 parts on this diagram · 2 diagrams in section
ANTI-THEFT DEVICE for Toyota AVANZA
This section contains 5 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota AVANZA. Key components include: STEERING COLUMN & SHAFT, COMPUTER ASSY, THEFT WARNING, COMPUTER ASSY, TRANSPONDER KEY, COIL, TRANSPONDER KEY.
