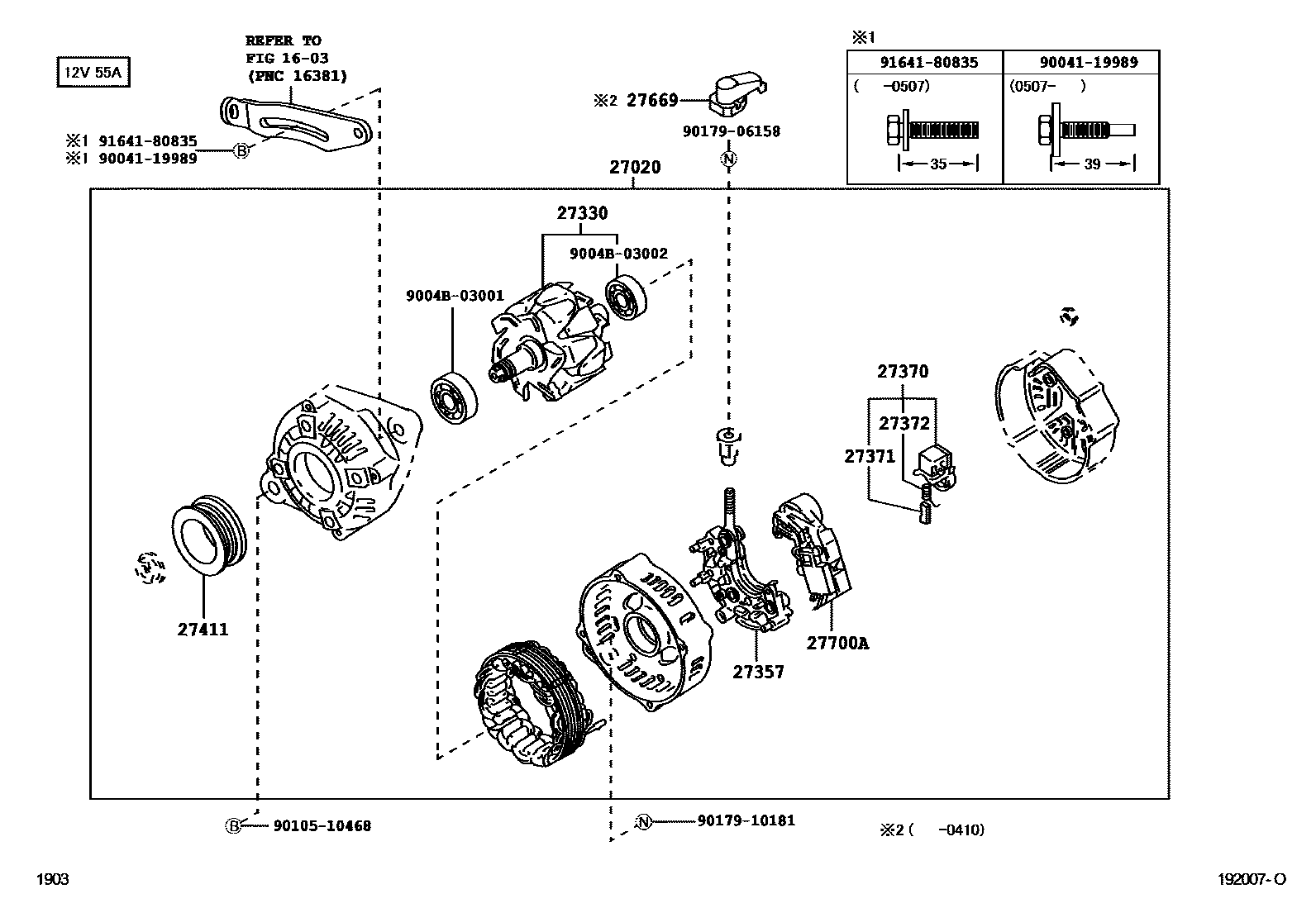

Toyota AVANZA — ALTERNATOR
1603RADIATOR & WATER OUTLET
27020ALTERNATOR ASSY
12V 55A,NAME PLATE(RED)
12V 60A,NAME PLATE(GREEN)
12V 60A,NAME PLATE(BLUISH PURPLE)
12V 80A
12V 80A
12V 80A
12V 80A
27330ROTOR ASSY, ALTERNATOR
27357HOLDER, ALTERNATOR, W/RECTIFIER
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27669CAP, GENERATOR
27700AREGULATOR ASSY, GENERATOR
9004119989
main90041-19989
9004B03001
main9004B-03001
9004B03002
main9004B-03002
9010510468
main90105-10468
9017906158
main90179-06158
9017910181
main90179-10181
9164180835
main91641-80835
17 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota AVANZA
This section contains 23 genuine Toyota parts for the ALTERNATOR system of the Toyota AVANZA. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BEARING(FOR ALTERNATOR DRIVE END FRAME), ROTOR ASSY, ALTERNATOR, BEARING(FOR ALTERNATOR ROTOR).
