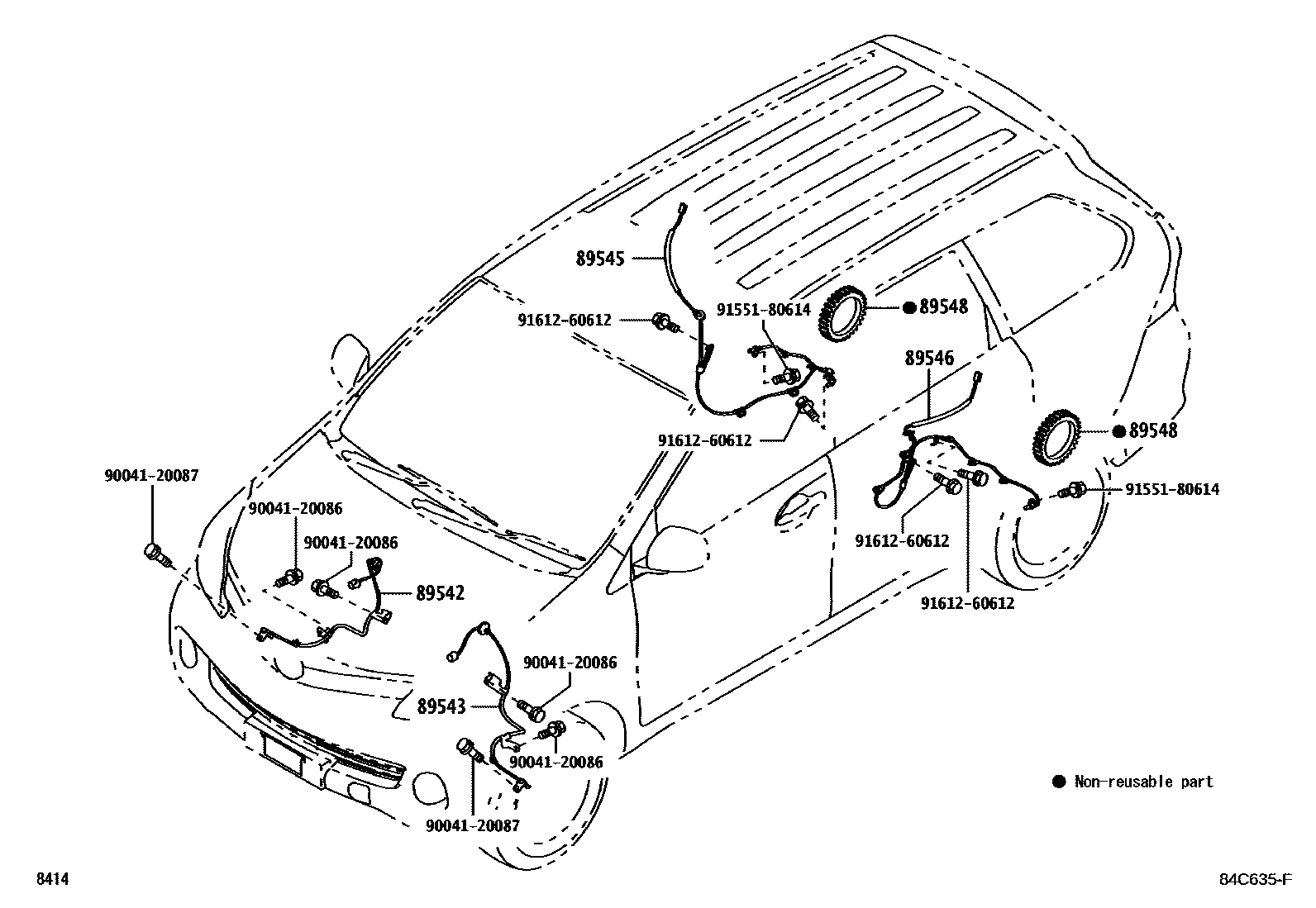

Toyota AVANZA — ABS & VSC

0001 1 0002 1 0004 1

89542SENSOR, SPEED, FRONT RH

main89542-B0040iF652..SPO..IDN201111-201507

main89542-BZ090supersedes 89542-BZ090iF653,654201507-201904

89543SENSOR, SPEED, FRONT LH

main89543-B0030iF652..SPO..IDN201111-201507

main89543-BZ090supersedes 89543-BZ090iF653,654201507-201904

89545SENSOR, SPEED, REAR RH

main89545-B0050iF652..SPO..IDN201111-201507

main89545-BZ030supersedes 89545-BZ030iF653,654201507-201904

89546SENSOR, SPEED, REAR LH

main89546-B0050iF652..SPO..IDN201111-201507

main89546-BZ030supersedes 89546-BZ030iF653,654201507-201904

89548ROTOR, SKID CONTROL SENSOR

main89547-97506×2supersedes 89547-97506iF652..SPO..IDN201111-201507

9004120086

main90041-20086

9004120087

main90041-20087

9155180614

main91551-80614

9161260612

main91612-60612

9 parts on this diagram · 3 diagrams in section
