Toyota AVANZA — ABS & VSC

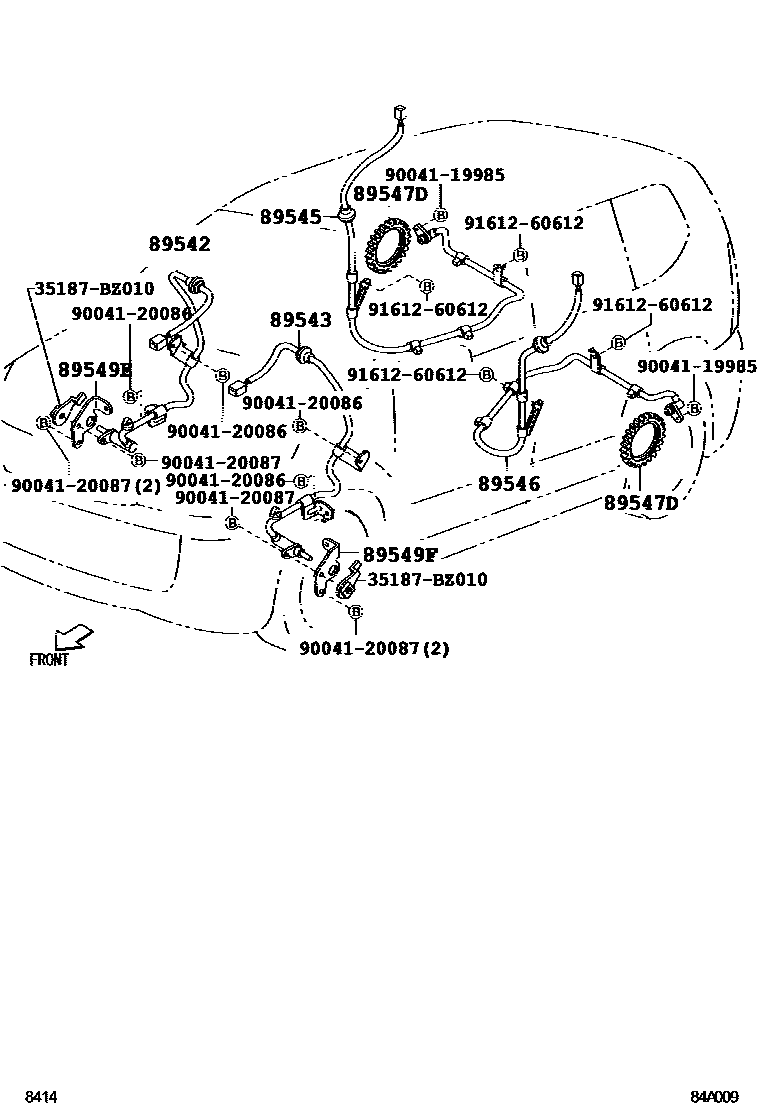

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-B0010iF601..4AT..(BRU,IDN,TH)200404-200608

main89542-B0020iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

89543SENSOR, SPEED, FRONT LH

main89543-B0010iF601..4AT..(BRU,IDN,TH)200404-200608

89545SENSOR, SPEED, REAR RH

main89545-B0010iF601..4AT..(BRU,IDN,TH)200404-200608

main89545-B0020iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

89546SENSOR, SPEED, REAR LH

main89546-B0010iF601..4AT..(BRU,IDN,TH)200404-200608

main89546-B0020iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

89547DROTOR, SKID CONTROL SENSOR

main89547-97506×2iF601..4AT..(BRU,IDN,TH)200404-200608

89549EBRACKET, SPEED SENSOR

main89549-B0010iF601..4AT..(BRU,IDN,TH)200404-200608

main89549-B0030iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

89549FBRACKET, SPEED SENSOR

main89549-B0020iF601..4AT..(BRU,IDN,TH)200404-200608

main89549-B0040iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

35187BZ010PLATE, SPEED SENSOR LOCK

main35187-BZ010

9004119985

main90041-19985

9004120086

main90041-20086

9004120087

main90041-20087

9161260612

main91612-60612

12 parts on this diagram · 2 diagrams in section
