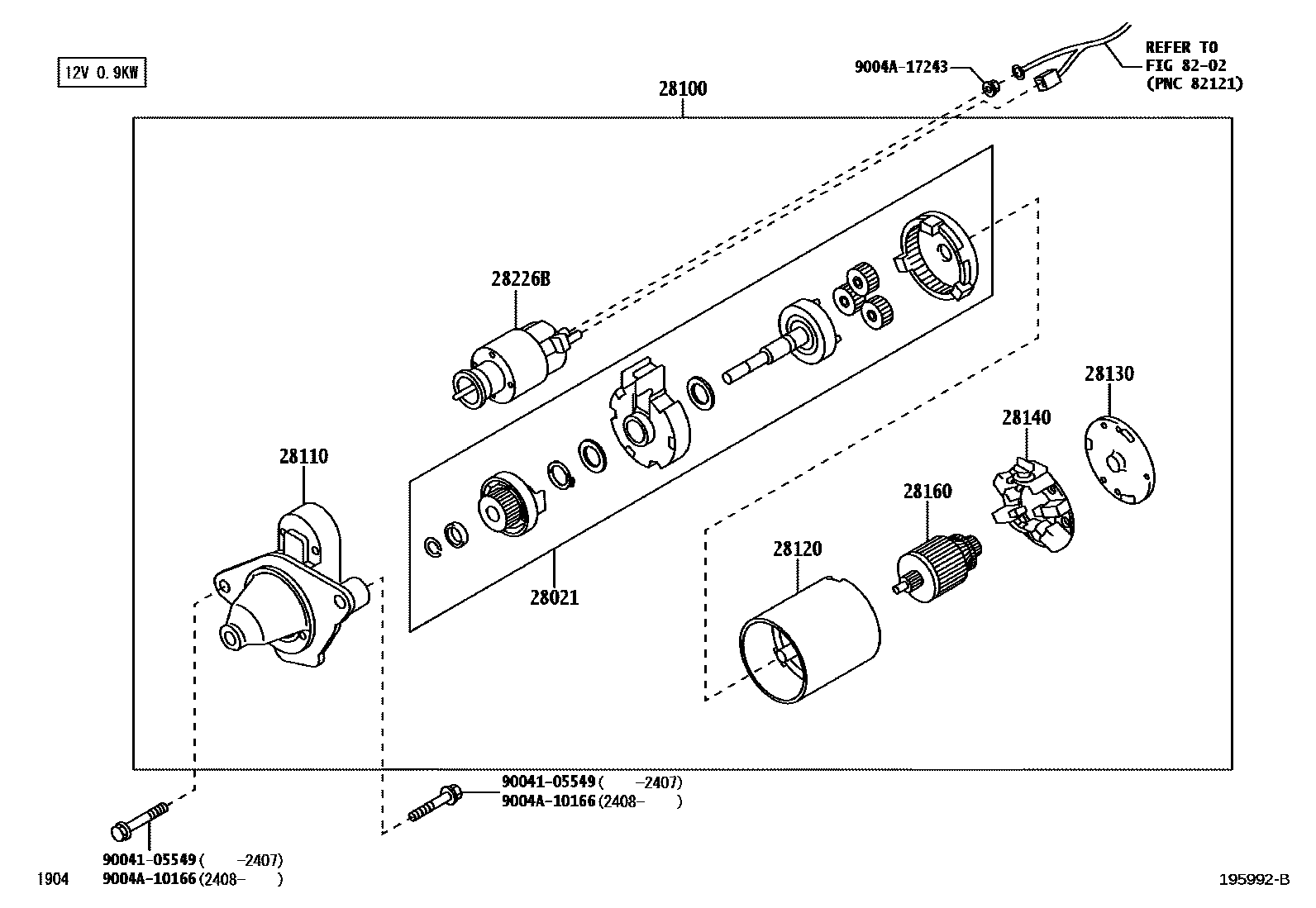

Toyota AVANZA/VELOZ — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ050i202111-202309

28100STARTER ASSY

main28100-BZ310i202111-202309

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ180i202111-202309

28120YOKE ASSY, STARTER

main28120-BZ090i202111-202309

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i202111-202309

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i202111-202309

28160ARMATURE ASSY, STARTER

main28160-BZ040i202111-202309

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010i202111-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105549

main90041-05549

9004A10166

main9004A-10166

9004A17243

main9004A-17243

12 parts on this diagram · 1 diagram in section

STARTER for Toyota AVANZA/VELOZ

This section contains 12 genuine Toyota parts for the STARTER system of the Toyota AVANZA/VELOZ. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END.
