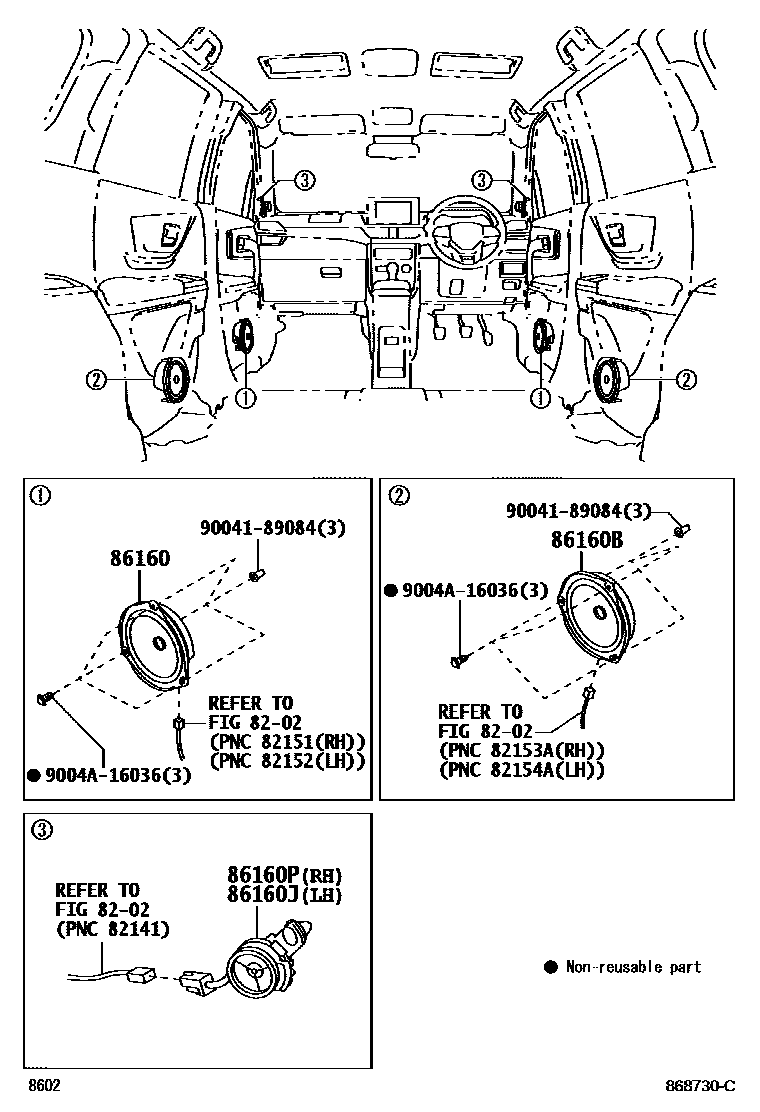

Toyota AVANZA/VELOZ — SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ180×2i202111

86160BSPEAKER ASSY, REAR

main86160-BZ180×2i202111

SPECIAL UTILITY PACKAGE-TAXI

86160JSPEAKER ASSY, FRONT NO.3

main86160-BZ320i202111

86160PSPEAKER ASSY, FRONT NO.2

main86160-BZ310i202111

9004189084

main90041-89084

9004A16036

main9004A-16036

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota AVANZA/VELOZ

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota AVANZA/VELOZ. Key components include: WIRING & CLAMP, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2.
