Toyota AVANZA/VELOZ — METER

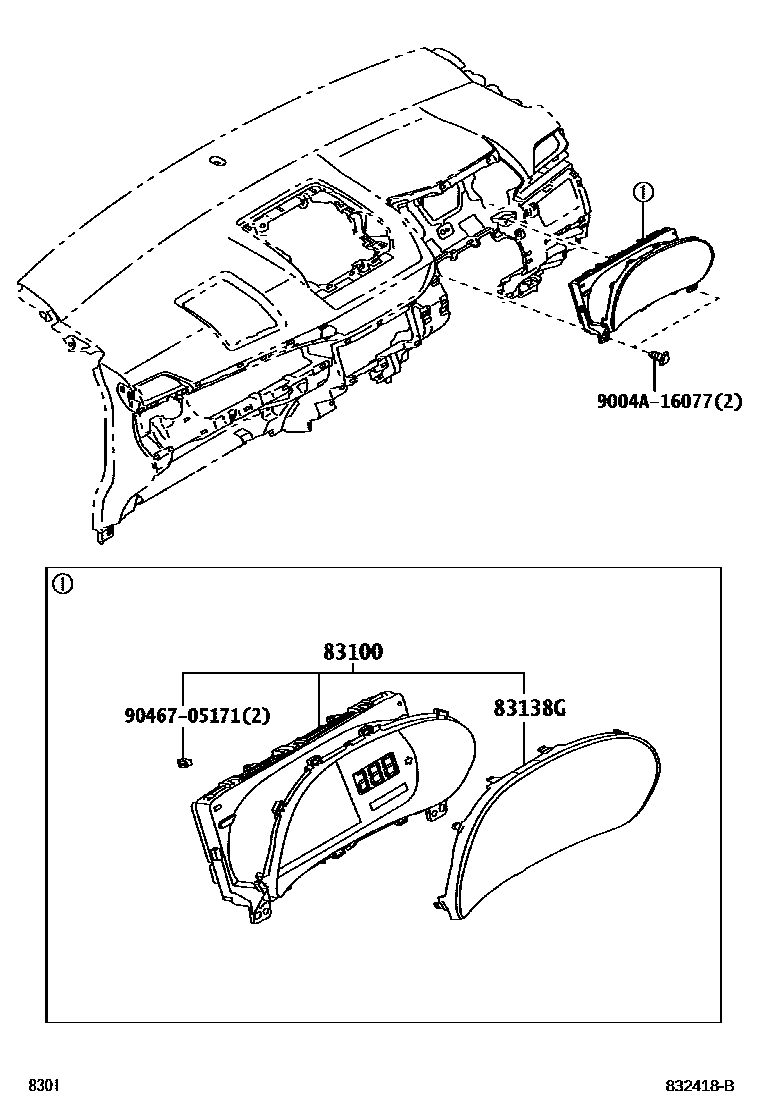

Parts diagram
83100METER ASSY, COMBINATION
main83800-BX080i202409
W/PART NUMBER LABEL
main83800-BYE70i202409
W/PART NUMBER LABEL
main83800-BYS70i202111
CONTINENTAL
main83800-BYT30i202111-202408
DENSO
main83800-BYT31i202409
DENSO
main83800-BYU50i202111-202409
DENSO,W/PART NUMBER LABEL
main83800-BYU60i202111
DENSO
main83800-BYV20i202201
DENSO; DENSO,PERU + BOLIVIA
main83800-BYV30i202201-202208
DENSO,W/PART NUMBER LABEL
main83800-BYV31i202208
DENSO,W/PART NUMBER LABEL
main83800-BYV40i202201-202208
CONTINENTAL,W/PART NUMBER LABEL
main83800-BYV41i202208-202409
CONTINENTAL,W/PART NUMBER LABEL
main83800-BYV50i202201
CONTINENTAL
main83800-BYV60i202201-202409
DENSO,W/PART NUMBER LABEL
main83800-BYX60i202409
W/PART NUMBER LABEL
main83800-BX110i202311
DENSO,CAMBODIA&SMART ASSIST (OVERSEAS)
main83800-BX270i202409
DENSO,CAMBODIA&SMART ASSIST (OVERSEAS)&STEERING COLUMN-TILT&TELESCO,W/O LOCK
main83800-BYS61supersedes 83800-BYS60i202409
STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
main83800-BYT21supersedes 83800-BYT20i202409
DENSO,STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
main83800-BYU51supersedes 83800-BYU50i202409
STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
main83800-BYU72supersedes 83800-BYU71i202409
STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
main83800-BYV42supersedes 83800-BYV41i202409
STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
main83800-BYV61supersedes 83800-BYV60i202409
STEERING COLUMN-TILT&TELESCO,W/O LOCK,W/PART NUMBER LABEL
83138GGLASS, COMBINATION METER
main83852-BZ220i202111
main83852-BZ230i202111
main83852-BZ250i202111
9004A16077
main9004A-16077
9046705171
main90467-05171

4 parts on this diagram · 3 diagrams in section

METER for Toyota AVANZA/VELOZ

This section contains 4 genuine Toyota parts for the METER system of the Toyota AVANZA/VELOZ. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
