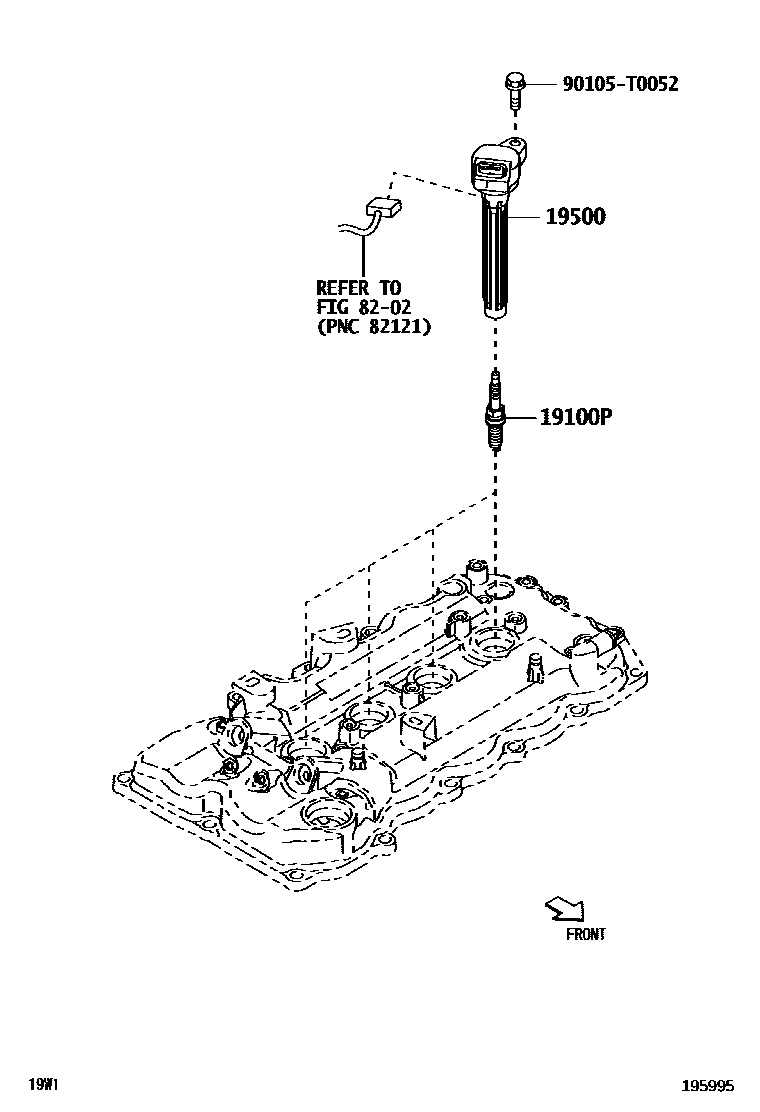

Toyota AVANZA/VELOZ — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main9004A-91068×4i202111

SC16HR11,SAME 90919-01275

main90919-01275×4i202111

SC16HR11; SC16HR11,SAME 9004A-91068

19500COIL ASSY, IGNITION

main90919-T2011×4i202111

8202WIRING & CLAMP

→ Go to FIG 82-02

90105T0052

main90105-T0052

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AVANZA/VELOZ

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AVANZA/VELOZ. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
