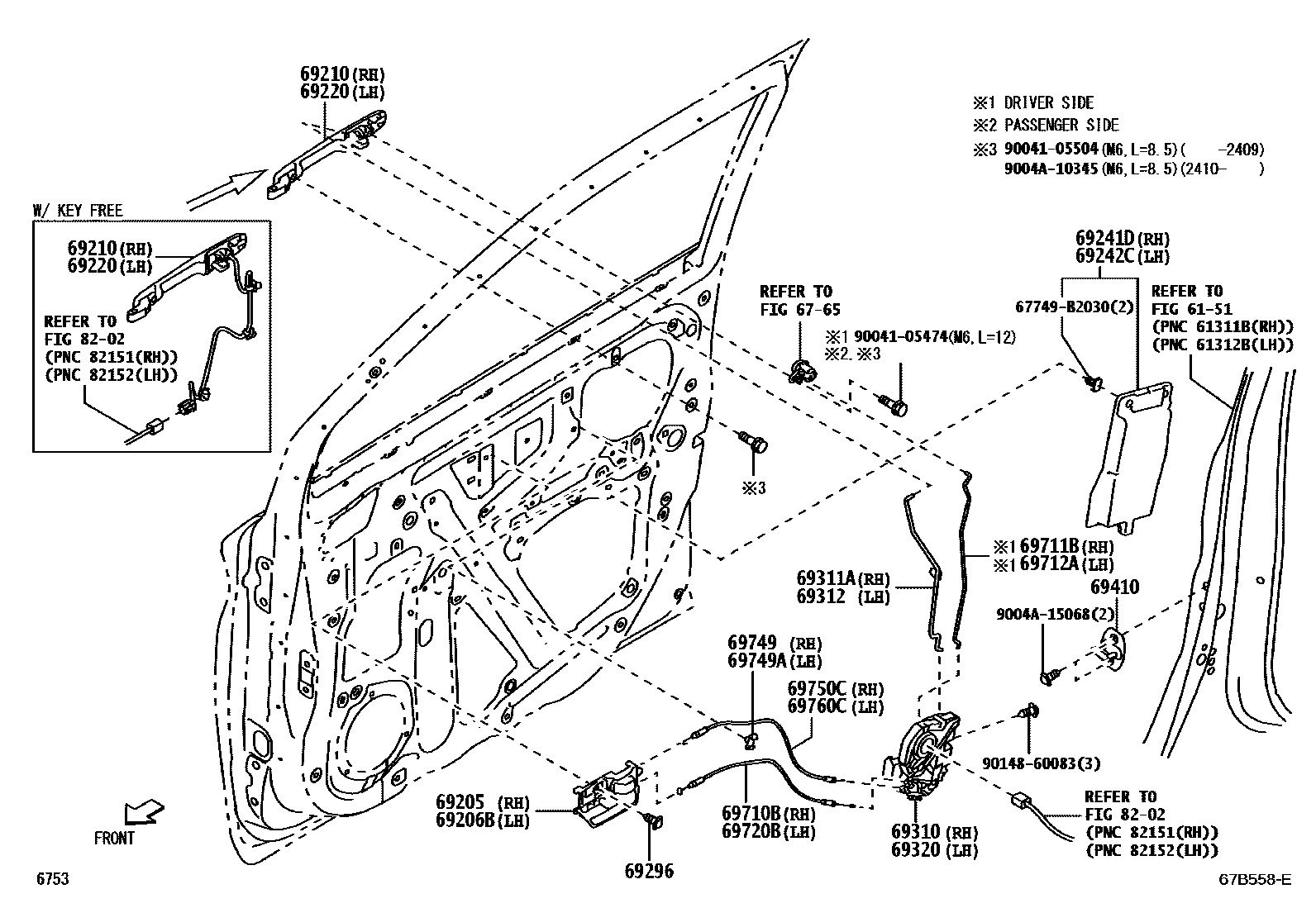

Toyota AVANZA/VELOZ — FRONT DOOR LOCK & HANDLE
6151SIDE MEMBER
6765LOCK CYLINDER SET
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,W09
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
WHITE,W09
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
WHITE,W09
PLATINUM WHITE PEARL MC.,089
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
PLATINUM WHITE PEARL MC.,089
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
PURPLISH SILVER M.M,P20
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,W09
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
WHITE,W09
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
WHITE,W09
PLATINUM WHITE PEARL MC.,089
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
GREENISH GUN METAL M.M,G64
PURPLISH SILVER M.M,P20
PLATINUM WHITE PEARL MC.,089
SILVER ME.,S28
GRAY ME.,1G3
BLACK ME.,X12
DK. RED M.M.,3Q3
PURPLISH SILVER M.M,P20
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8202WIRING & CLAMP
67749B2030CLIP, DOOR TRIM MOULDING
main67749-B2030
9004105474
main90041-05474
9004105504
main90041-05504
9004A10345
main9004A-10345
9004A15068
main9004A-15068
9014860083
main90148-60083
29 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota AVANZA/VELOZ
This section contains 29 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota AVANZA/VELOZ. Key components include: SIDE MEMBER, LOCK CYLINDER SET, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
