Toyota AVANZA/VELOZ — CONSOLE BOX & BRACKET

0001 1FRONT CONSOLE 0002 1FRONT CONSOLE 0003 1FRONT CONSOLE 0004 1REAR CONSOLE 0005 1REAR CONSOLE 0006 1REAR CONSOLE

3312

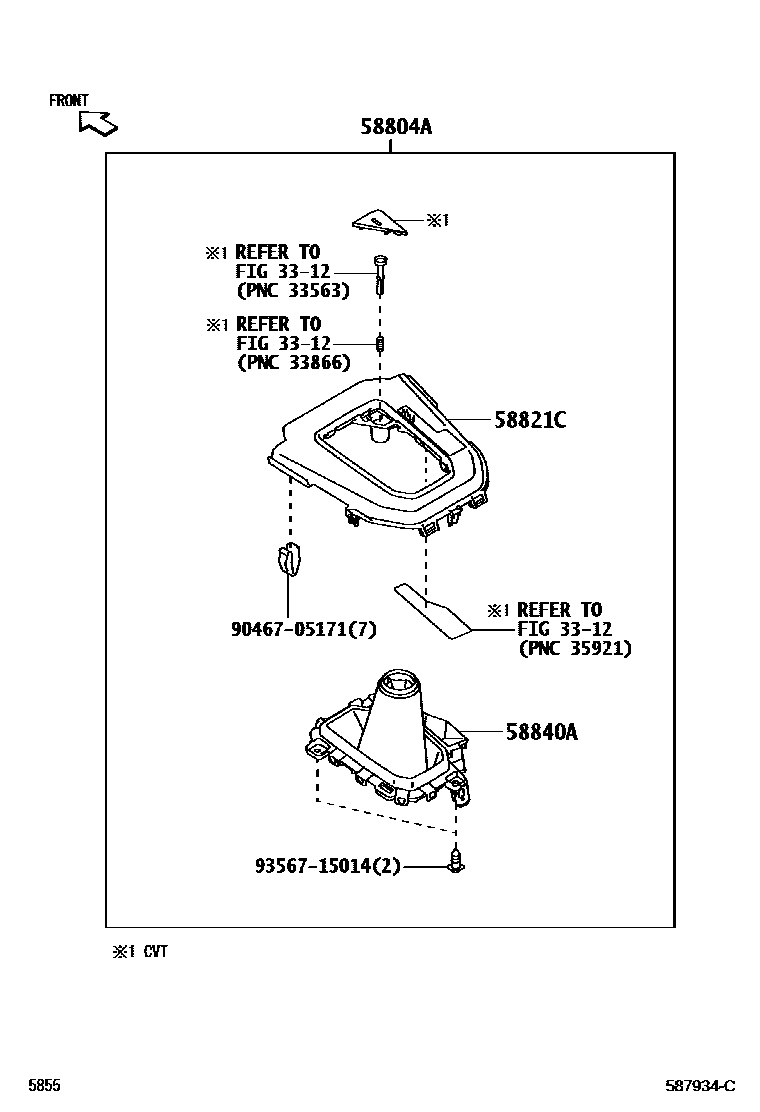

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-BZ150iW100..5F;W101..LHD..5F202111-202302

main58804-BZ150-C0iW100..5F;W101..LHD..5F202302

BLACK,TRIM2#

main58804-BZ160-C3iW101..5F..S202111-202406

BLACK,TRIM2#

main58804-BZ170iW101..M..GEN;W100..CVT..IDN202111-202302

main58804-BZ170-C2iW101..M..GEN;W100..CVT..IDN202302

BLACK,TRIM2#

main58804-BZ180iW10#..LHD..CVT..(G,M)202201-202302

main58804-BZ180-C1iW100,101..LHD..CVT..(G,M)202302

BLACK,TRIM2#

main58804-BZ190iW101..RHD..CVT..(S,V)202111-202302

main58804-BZ190-C3iW101..RHD..CVT..(S,V)202302-202406

BLACK,TRIM2#

main58804-BZ210iW101..LHD..(S,V)202201-202302

main58804-BZ210-C3iW101..GCC202408-202412

BLACK,TRIM2#

main58804-BZ270iW101..5F..M..IDN202111

main58804-BZ280iW101..CVT..M..IDN202111

main58804-BZB30-C0iW101..5F..S202407

BLACK,TRIM2#

main58804-BZB40-C0iW101..RHD..CVT..(S,V)202407

BLACK,TRIM2#

main58804-BZB50-C0iW101..GCC202501

BLACK,TRIM2#

58821CPANEL, CONSOLE, UPPER

main58821-BZ330-C0iW100,101..5F..(D,G,M)202111

BLACK,TRIM2#

main58821-BZ350-C0iW100,101..RHD..CVT..(D,M)202111

BLACK,TRIM2#

main58821-BZ360-C0iW100,101..LHD..CVT..(G,M)202201

BLACK,TRIM2#

58840ACOVER ASSY, SHIFTING HOLE

main58840-BZ270iW101..5F..M..IDN202111

main58840-BZ270-C0iW100..5F;W101..LHD..5F202302

BLACK,TRIM2#

main58840-BZ290iW101..CVT..M..IDN202111

main58840-BZ290-C0iW101..M..GEN;W100..CVT..IDN202302

BLACK,TRIM2#

main58840-BZ310iW10#..LHD..CVT..(G,M)202201-202302

main58840-BZ310-C0iW100,101..LHD..CVT..(G,M)202302

BLACK,TRIM2#

9046705171

main90467-05171

9356715014

main93567-15014

6 parts on this diagram · 6 diagrams in section
