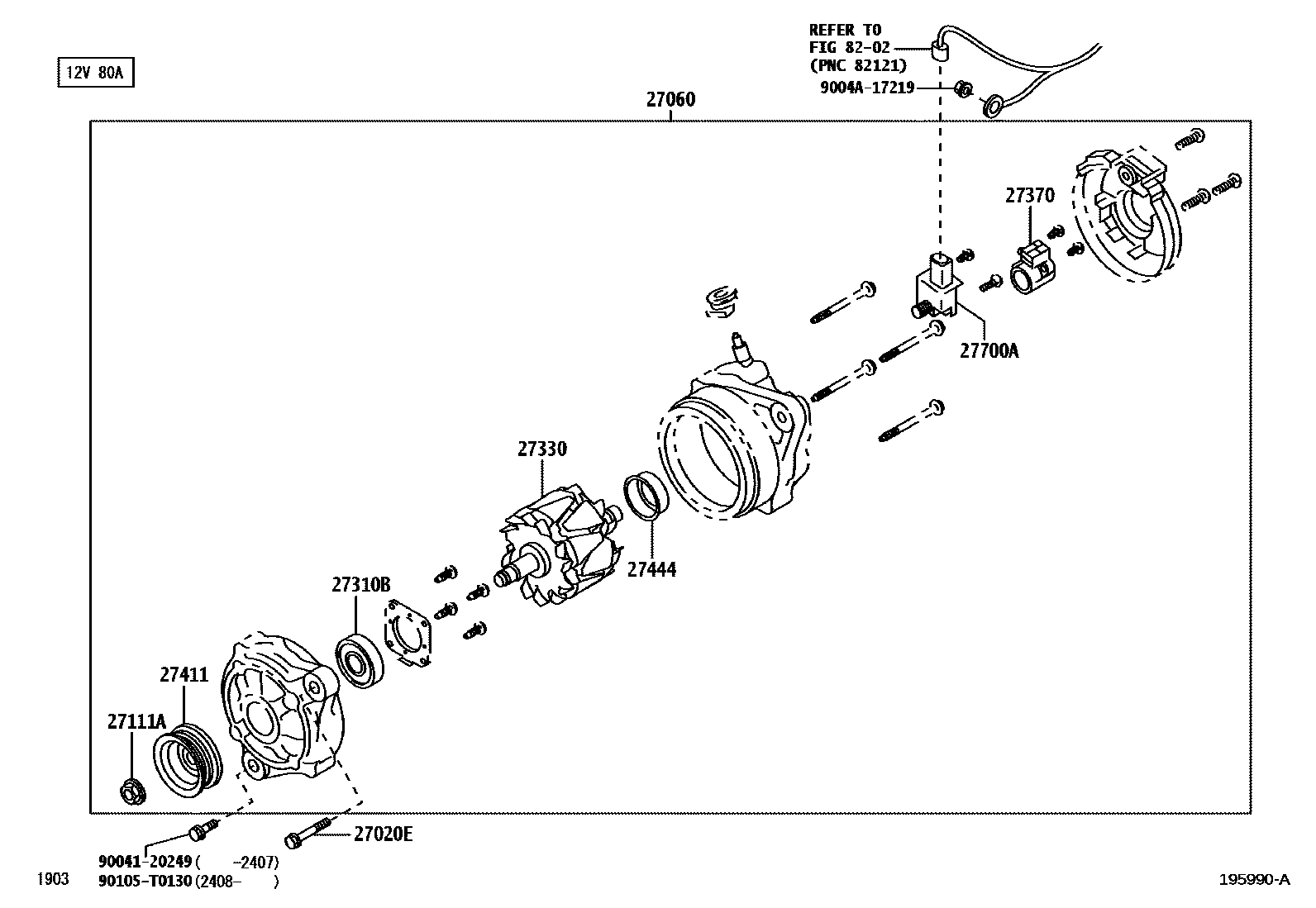

Toyota AVANZA/VELOZ — ALTERNATOR
27020EBOLT(FOR ALTERNATOR)
LOCAL SOURCED PARTS
JAPAN SOURCED PARTS
27060ALTERNATOR ASSY, W/REGULATOR
12V 80A
12V 100A
27111ANUT, ALTERNATOR
main90099-05171i1NRVE..W100;2NRVE..W101..5F..S;2NRVE..W101..CVT..M..PHL;2NRVE..W101..(G,M)..(GEN,IDN,MXC,VN)202111
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ROTOR ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27444PACKING, ALTERNATOR BEARING COVER
27700AREGULATOR ASSY, GENERATOR
8202WIRING & CLAMP
9004120249
main90041-20249
9004A17219
main9004A-17219
90105T0130
main90105-T0130
14 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota AVANZA/VELOZ
This section contains 25 genuine Toyota parts for the ALTERNATOR system of the Toyota AVANZA/VELOZ. Key components include: BOLT(FOR ALTERNATOR), BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR), BOLT, NO.3(FOR ALTERNATOR), ALTERNATOR ASSY, W/REGULATOR.
