Toyota AVANZA/VELOZ — HORN

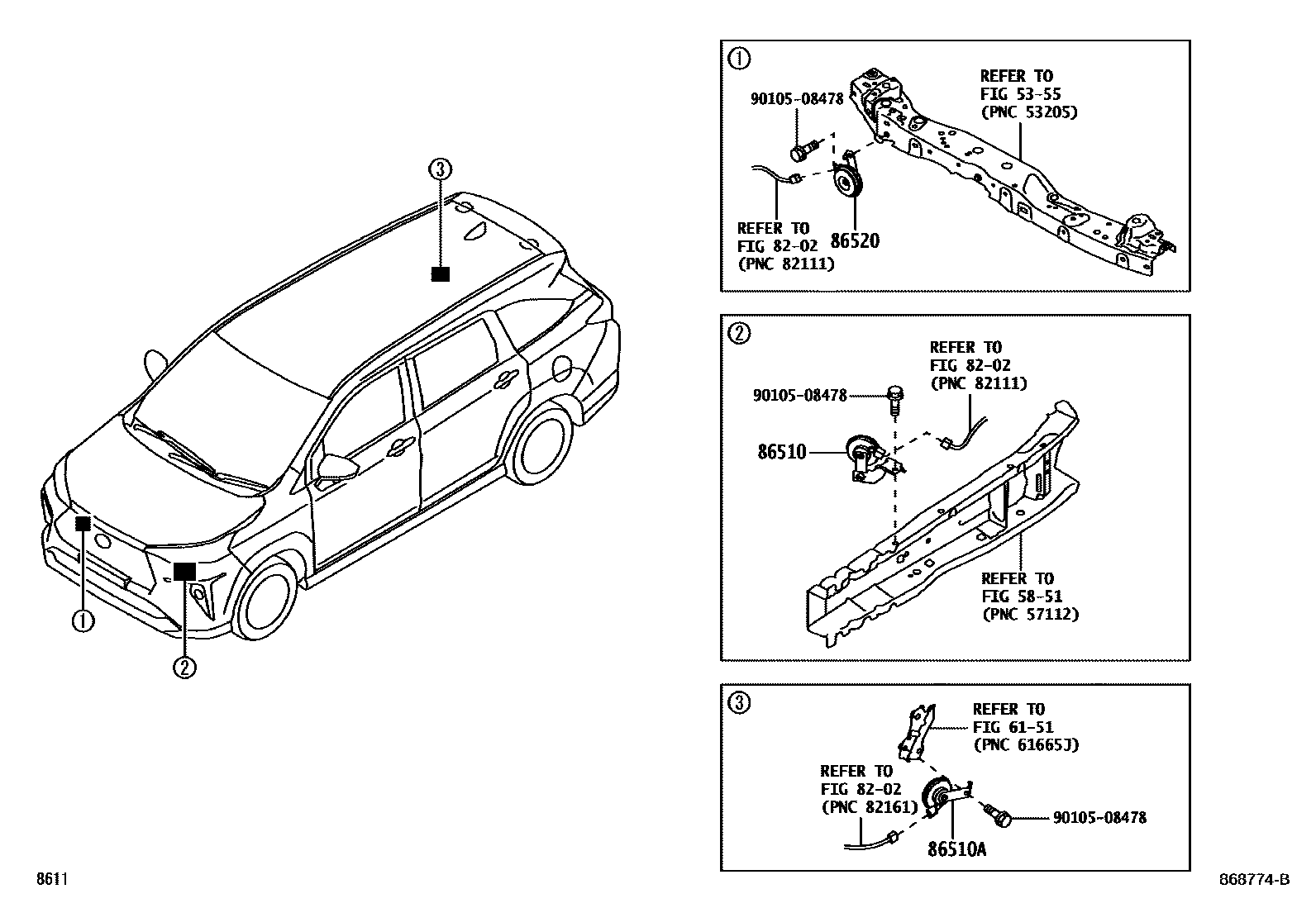

Parts diagram

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

6151SIDE MEMBER

→ Go to FIG 61-51

8202WIRING & CLAMP

→ Go to FIG 82-02

86510HORN ASSY, HIGH PITCHED

main86510-BZ300i202111

main86510-BZ400i202201

86510AHORN ASSY, SECURITY

main86520-BZ310i202111

86520HORN ASSY, LOW PITCHED

main86520-BZ290i202111

main86520-BZ300i202201

9010508478

main90105-08478

8 parts on this diagram · 1 diagram in section

HORN for Toyota AVANZA/VELOZ

This section contains 8 genuine Toyota parts for the HORN system of the Toyota AVANZA/VELOZ. Key components include: FRONT FENDER APRON & DASH PANEL, FRONT FLOOR PANEL & FRONT FLOOR MEMBER, SIDE MEMBER, WIRING & CLAMP, HORN ASSY, HIGH PITCHED.
