Toyota AVANZA/VELOZ — FRONT DOOR WINDOW REGULATOR & HINGE

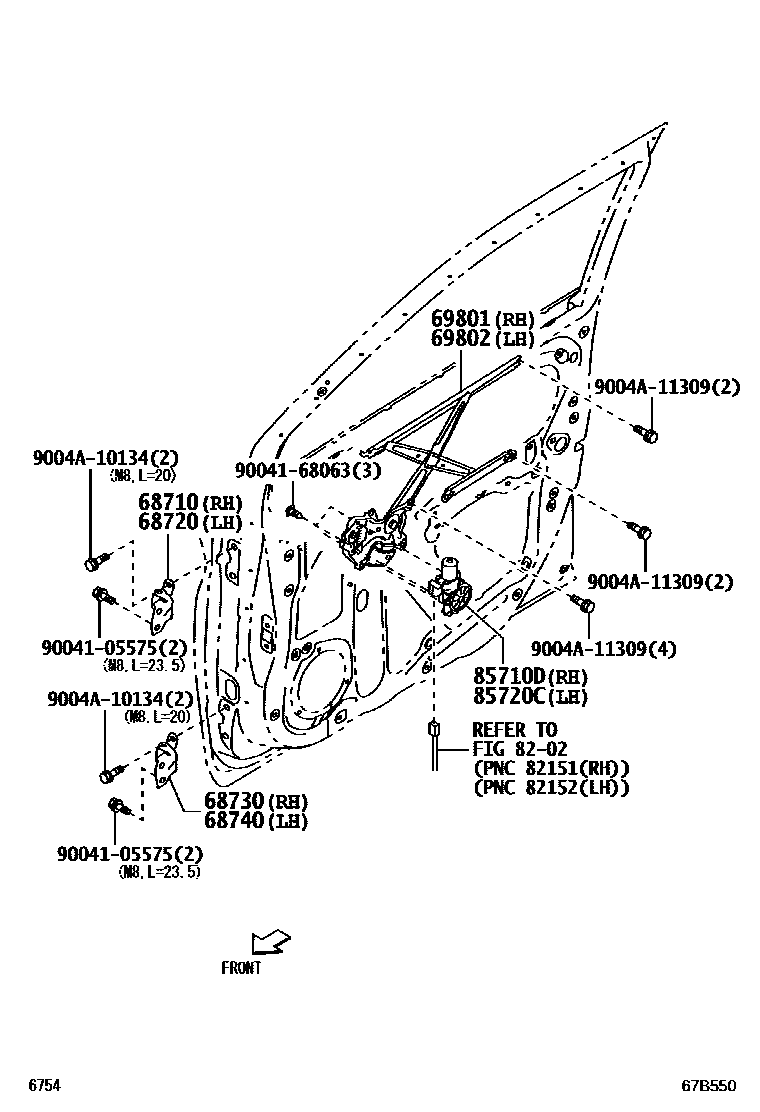

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-BZ140i202111

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-BZ110i202111

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-BZ110i202111

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-BZ140i202111

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ150i202111

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ150i202111

8202WIRING & CLAMP

→ Go to FIG 82-02

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ210i202111

main85710-BZ270i202201

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ240i202111

main85720-BZ250i202201

9004105575

main90041-05575

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A11309

main9004A-11309

13 parts on this diagram · 2 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota AVANZA/VELOZ

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota AVANZA/VELOZ. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
