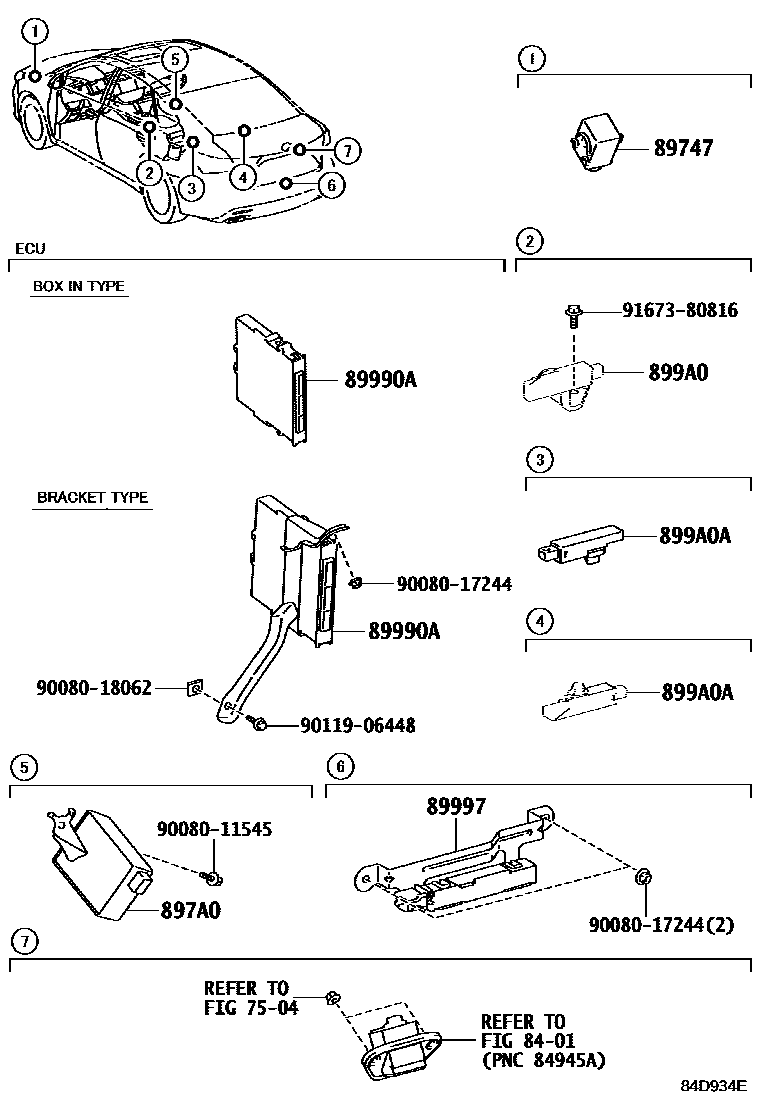

Toyota AVALON — WIRELESS DOOR LOCK

7504

8401

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iAVX40,GSX40201410-201510

main89747-30040iAVX40,GSX40201210-201409

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-07010iAVX40,GSX40201210-201504

sub897B0-07011

main897B0-07011iAVX40,GSX40201505-201510

main897B0-07030iAVX40,GSX40201510

89990ACOMPUTER ASSY, SMART KEY

main89990-07010iGSX40..XLEPR,XLETO201210-201510

sub89990-07011

main89990-07020iAVX40201211-201510

main89990-07040iGSX40..LIMD201210-201510

BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)

sub89990-07041

main89990-07150iGSX40..XLETO201510

BLIND SPOT MONITOR-WITHOUT

main89990-07160iGSX40..XLEPR201510

AUDIO-*DA & 9SPEAKER

main89990-07160iGSX40..XLETO201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main89990-07160iGSX40..XLETO201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-*DA & 9SPEAKER

main89990-07160iGSX40..XLETO201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&BLIND SPOT MONITOR-WITHOUT

main89990-07200iAVX40..LIMD201510

XLS PACKAGE

main89990-07200iAVX40..LIMD201510

XLS PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main89990-07200iAVX40..LIMD201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main89990-07220iAVX40..XLE201510

89997ANTENNA, ELECTRICAL KEY

main89997-07030iAVX40,GSX40201210-201510

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06010iAVX40,GSX40201210-201510

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-06030iAVX40,GSX40201210-201510

9008011545

main90080-11545

9008017244

main90080-17244

9008018062

main90080-18062

9011906448

main90119-06448

9167380816

main91673-80816

13 parts on this diagram · 1 diagram in section
