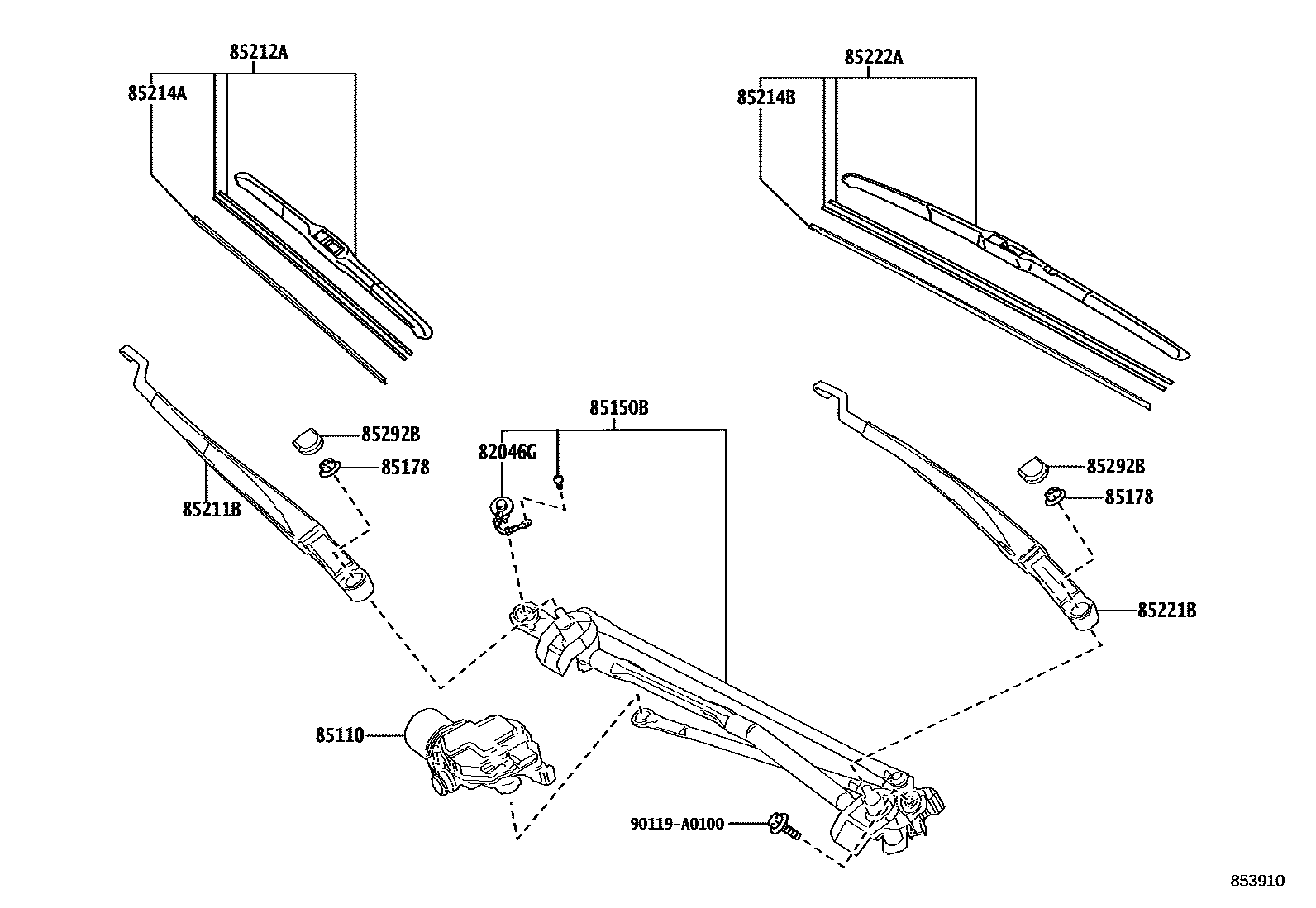

Toyota AVALON — WINDSHIELD WIPER

0001 1 0002 1

82046GWIRE SUB-ASSY, BODY GROUND

main82046-06080iAXXH50,GSX50201804-202008

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33430iAXXH50,GSX50201804-202008

main85110-33432iAXXA55;GSX50..XSE202010-202107

85150BLINK ASSY, WIPER

main85150-06200iAXXH50,GSX50201804-202008

main85150-06201iAXXA55;GSX50..XSE202009-202107

main85150-06202iAXXH51;GSX50..LIMD,TOU,XLE202110

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2iAXXH50,GSX50201804-202008

85211BARM, FRONT WIPER, RH

main85211-06250iAXXH50,GSX50201804-202008

85212ABLADE, FR WIPER, RH

main85212-06250iAXXH50,GSX50201804-202008

85214ARUBBER, WIPER, RH

main85214-0E140iAXXH50,GSX50201804-202008

85214BRUBBER, WIPER, LH

main85214-0E151iAXXH50,GSX50201804-202008

85221BARM, FRONT WIPER, LH

main85221-06250iAXXH50,GSX50201804-202008

85222ABLADE, FR WIPER, LH

main85222-06250iAXXH50,GSX50201804-202008

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iAXXH50,GSX50201804-202008

90119A0100

main90119-A0100

12 parts on this diagram · 2 diagrams in section
