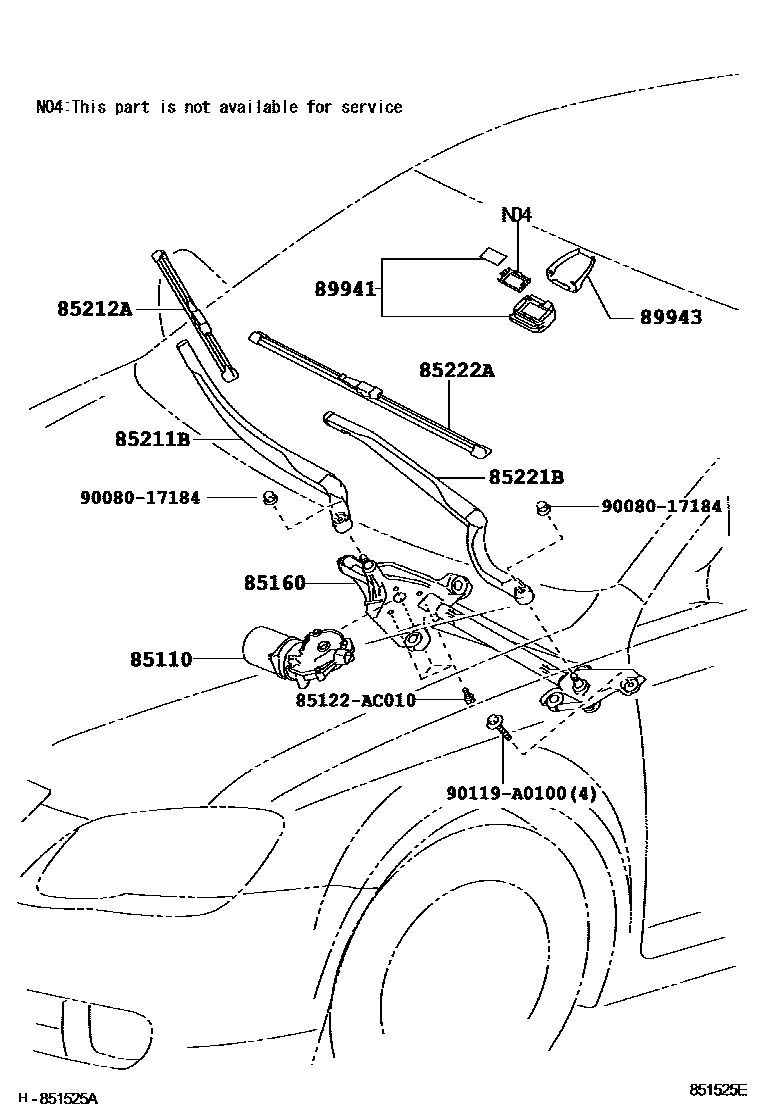

Toyota AVALON — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-AC010iGSX30200501-200707

85160LINK ASSY, WINDSHIELD WIPER

main85150-AC010iGSX30200501-200707

85211BARM, FRONT WIPER, RH

main85211-AC010iGSX30200501-200707

85212ABLADE, FR WIPER, RH

main85212-AC010iGSX30200501-200707

main85212-AC011iGSX30..LIMD,XLS200904-201003

85221BARM, FRONT WIPER, LH

main85221-AC010iGSX30200501-200707

85222ABLADE, FR WIPER, LH

main85222-AC010iGSX30200501-200604

main85222-AC011iGSX30200605-200707

main85222-AC012iGSX30..LIMD,XLS200904-201003

89941SENSOR, RAIN

main89941-AC010iGSX30..LIMD201003

89943COVER, RAIN SENSOR

main89943-60010iGSX30..LIMD201003

85122AC010PLATE, WINDSHIELD WIPER MOTOR CAM

main85122-AC010

9008017184

main90080-17184

90119A0100

main90119-A0100

11 parts on this diagram · 1 diagram in section
