Toyota AVALON — WINDSHIELD WASHER

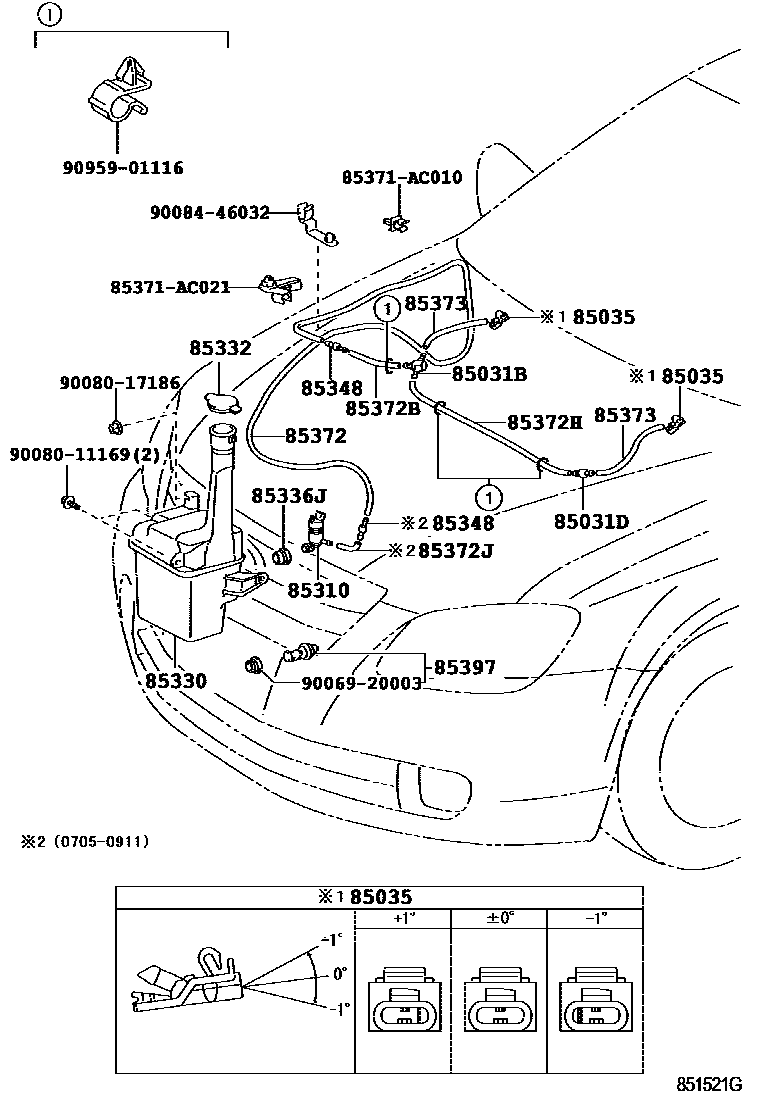

Parts diagram
85031BVALVE SUB-ASSY, WASHER
main85321-28020i200906-201003
main85321-30080i200501-200704
85031DVALVE SUB-ASSY, WASHER NO.2
main85321-26020i200501-200704
main85375-06020i200906-200910
main85375-0E010i200911
85035NOZZLE SUB-ASSY, WASHER
main85381-AC010×2i200501-200702
ANGLE 0
main85381-AC011×2i200707-201002
ANGLE 0
main85381-AC012×2i201003
ANGLE 0
main85381-AC020×2i200501-200702
ANGLE +1
main85381-AC021×2i200703-200707
ANGLE +1
main85381-AC022×2i201003
ANGLE +1
main85381-AC030×2i200501-200703
ANGLE -1
sub85381-AC031
main85381-AC040×2i200703-200707
ANGLE -1
main85381-AC041×2i201003
ANGLE -1
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-06030i200501-200707
main85330-06031i200707-201003
85330JAR ASSY, WINDSHIELD WASHER
main85315-AA030i200501-200707
main85315-AA031i200707-201003
85332CAP, WINDSHIELD WASHER JAR
main85316-06021i200501-200707
85336JPROTECTOR, WASHER JAR
main85365-02010i200707-201003
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i200911-201003
main85375-AA010×2i200707-200710
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85374-AC030i200705-200707
L=2095
main85374-AC031i200911-201003
L=2095
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main85374-AC010i200501-200704
L=210
main85374-AC011i201003
L=210
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main85374-AC020i200501-200704
L=855
main85374-AC021i200911-201003
L=845
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main85374-07050i200705-200707
L=40
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90069-46030×6i200501-200703
L=225,ANGLE 0
85397SWITCH ASSY,LEVEL WARNING
main85397-AA010i200501-200707
85371AC010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-AC010
85371AC021HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-AC021
9006920003
main90069-20003
9008011169
main90080-11169
9008017186
main90080-17186
9008446032
main90084-46032
9095901116
main90959-01116

21 parts on this diagram · 1 diagram in section
