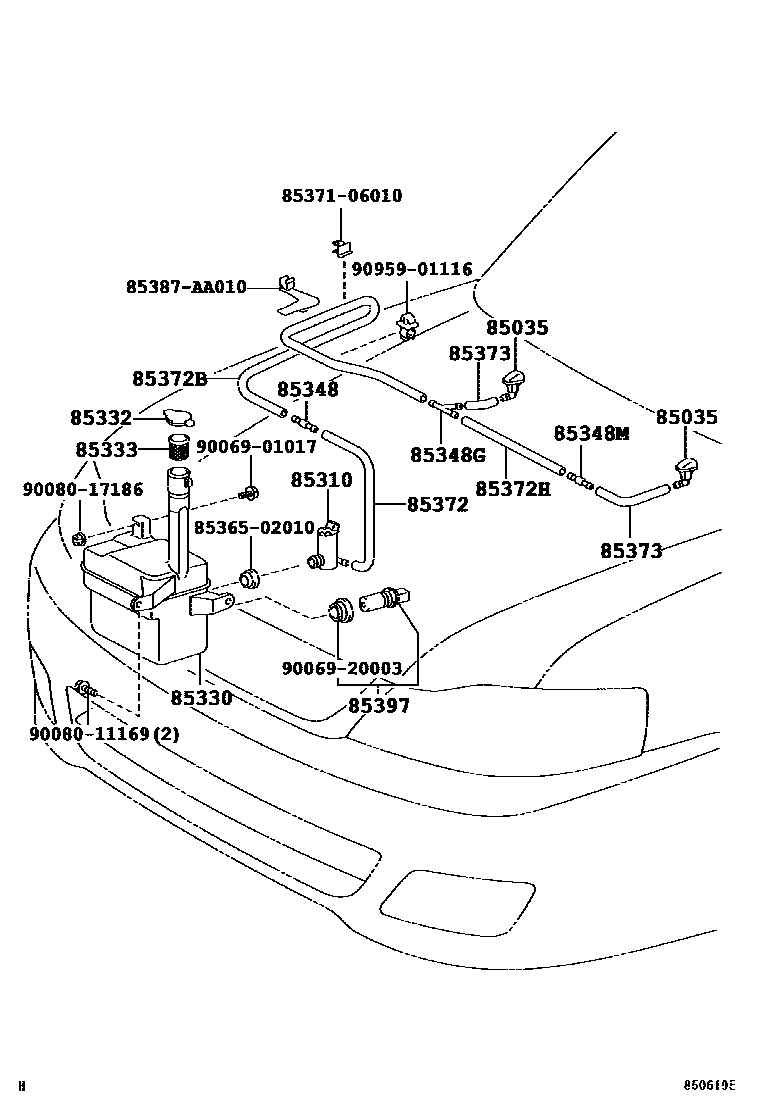

Toyota AVALON — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-41060-A0×2iMCX20..USA200206-200501

SU. WHITE PM,051

sub85385-41090

sub85385-33160

main85385-41060-B0×2iMCX20..USA199908-200206

SILVER ME,1C8

sub85385-41090

sub85385-33160

main85385-41060-B1×2iMCX20..USA200206-200501

GRAY M.M,1E3

sub85385-41090

sub85385-33160

main85385-41060-C0×2iMCX20..USA200206-200501

BLACK,202

sub85385-41090

sub85385-33160

main85385-41060-D0×2iMCX20..USA199908-200206

DK. RED MC,3N6

sub85385-41090

sub85385-33160

main85385-41060-D1×2iMCX20..USA200206-200501

DK.RED MC.,3Q7

sub85385-41090

sub85385-33160

main85385-41060-E0×2iMCX20..USA200206-200501

BEIGE M.M,4Q2

sub85385-41090

sub85385-33160

main85385-41060-G0×2iMCX20..USA199908-200206

GR. GREEN ME,6M3

sub85385-41090

sub85385-33160

main85385-41060-G1×2iMCX20..USA199908-200206

GREEN MC,6R1

sub85385-41090

sub85385-33160

main85385-41060-G2×2iMCX20..USA200206-200501

DK. GREEN MC.,6S7

sub85385-41090

sub85385-33160

main85385-41060-J0×2iMCX20..USA199908-200008

BLUE M.M.,8N4

sub85385-41090

sub85385-33160

main85385-41060-J1×2iMCX20..USA200206-200501

DK. BLUE MC.,8Q0

sub85385-41090

sub85385-33160

main85385-41070-A0iMCX20..CND200206-200501

SU. WHITE PM,051,RH

main85385-41070-B0iMCX20..CND199908-200206

SILVER ME,1C8,RH

main85385-41070-C0iMCX20..CND200206-200501

BLACK,202,RH

main85385-41070-E0iMCX20..CND200206-200501

BEIGE M.M,4Q2,RH

main85385-41070-G1iMCX20..CND199908-200206

GREEN MC,6R1,RH

main85385-41070-J1iMCX20..CND200206-200501

DK. BLUE MC.,8Q0,RH

main85385-41080-A0iMCX20..CND200206-200501

SU. WHITE PM,051,LH

main85385-41080-B0iMCX20..CND199908-200206

SILVER ME,1C8,LH

main85385-41080-C0iMCX20..CND199908-200206

BLACK,202,LH

main85385-41080-E0iMCX20..CND199908-200206

BEIGE M.M,4Q2,LH

main85385-41080-G1iMCX20..CND199908-200206

GREEN MC,6R1,LH

main85385-41080-J1iMCX20..CND200206-200501

DK. BLUE MC,8Q0,LH

main85385-41100×2iMCX20..USA200206-200501

sub85381-44010

main85385-41110iMCX20..CND199908-200206

RH

sub85381-48020

main85385-41120iMCX20..CND199908-200206

LH

sub85381-12260

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06030iMCX20199908-200206

sub85330-06031

85330JAR ASSY, WINDSHIELD WASHER

main85315-07020iMCX20199908-200206

85332CAP, WINDSHIELD WASHER JAR

main85316-06020iMCX20199908-200005

main85316-06021iMCX20200005-200206

85333FILTER, WINDSHIELD WASHER JAR

main85333-03010iMCX20199908-200206

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-AA010iMCX20199908-200206

sub85334-22470

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-AA010iMCX20199908-200206

sub85378-0E010

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-06020iMCX20199908-200206

sub85375-0E010

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-07020iMCX20199908-200206

L=50

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-07030iMCX20199908-200206

L=2150

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-07040iMCX20199908-200206

L=530

sub85374-AE040

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iMCX20199908-200206

L=1450(*H,L=130)

85397SWITCH ASSY,LEVEL WARNING

main85397-AA010iMCX20199908-200206

8536502010INSULATOR, WINDSHIELD WASHER JAR

main85365-02010

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

85387AA010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-AA010

9006901017

main90069-01017

9006920003

main90069-20003

9008011169

main90080-11169

9008017186

main90080-17186

9095901116

main90959-01116

21 parts on this diagram · 1 diagram in section
