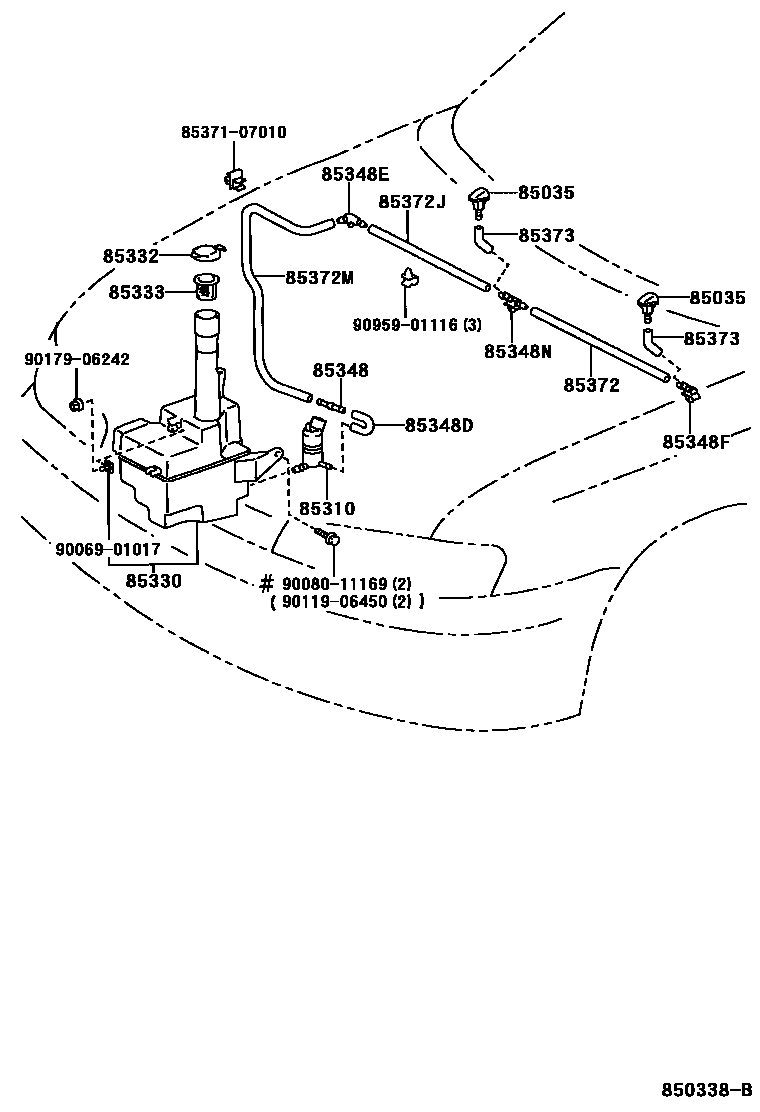

Toyota AVALON — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE 2,040
SU.WHITE PM,051
BLUISH SILVER ME,1A0
MAGENT MC,3L3
LT.BEIGE.ME.OP,4N5
BEIGE ME,4M9
GR.GREEN ME,6M3
SUPER WHITE 2,040
SU, WHITE PM,051
BLUISH SILVER ME,1A0
BLACK,202
BLACK,751 ,927
MAGENT MC,3L3
BEIGE ME,4M9
LT.BEIGE ME.OP,4N5
GR, GREEN ME,6M3
RH
LH
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
sub85330-06031
85330JAR ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
85332CAP, WINDSHIELD WASHER JAR
sub85316-06021
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
sub85375-04080
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=520
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=760
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1785
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
8537107010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-07010
9006901017
main90069-01017
9008011169
main90080-11169
9011906450
main90119-06450
9017906242
main90179-06242
9095901116
main90959-01116
20 parts on this diagram · 2 diagrams in section
