Toyota AVALON — WATER PUMP

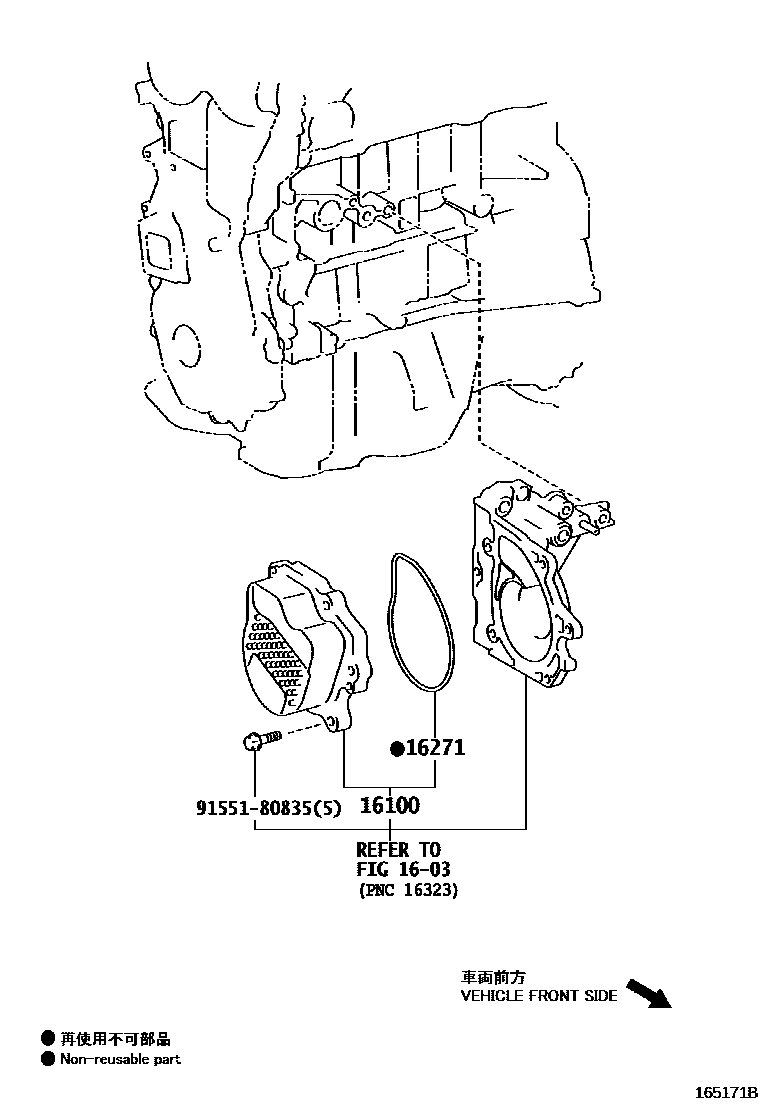

Parts diagram
1603
16100PUMP ASSY, ENGINE WATER
main16100-09441i201210-201608
sub16100-09442
main16100-09442i201608
main161A0-39025i201510
*107,*288
main161A0-39025i201310-201510
*288
main161A0-39025i201211-201510
*107
16271GASKET, WATER PUMP
main16271-0P010i201210-201510
(L)
main16271-31030i201312-201510
(J)
main16271-36020i201310-201510
*288
main16271-36020i201211-201510
*107
main16271-36020i201510
*107,*288
9155180835
main91551-80835

4 parts on this diagram · 2 diagrams in section
