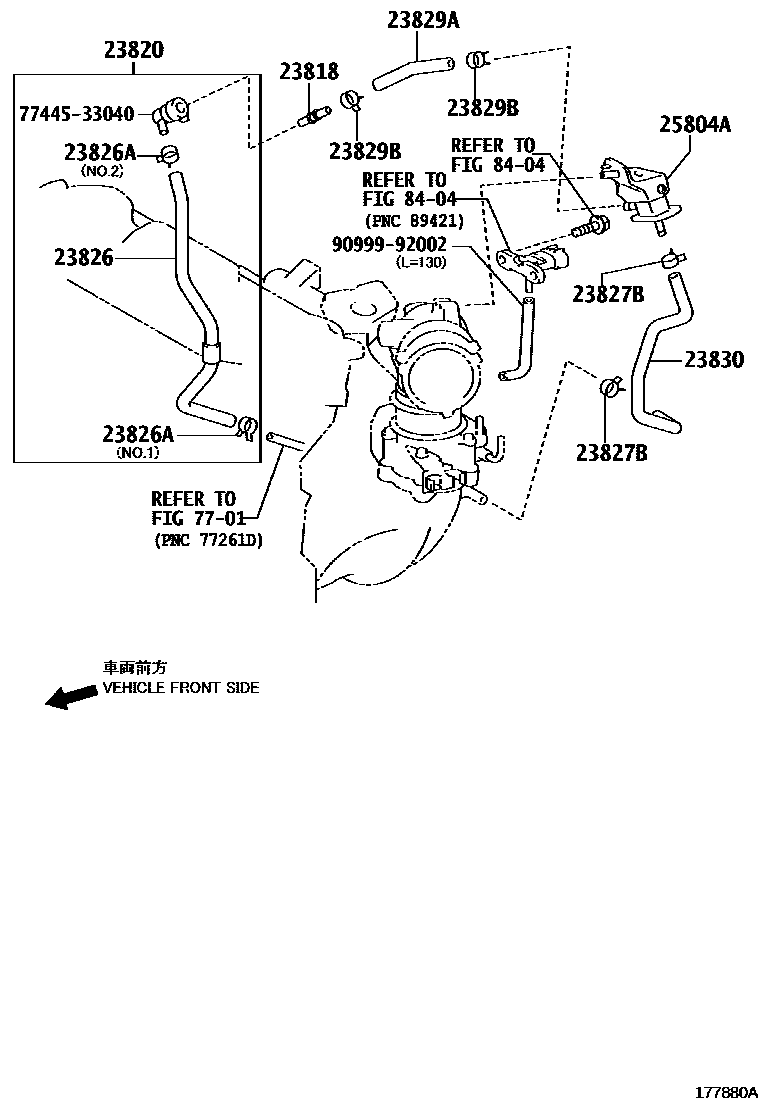

Toyota AVALON — VACUUM PIPING

0001 1 0002 1

23818PIPE, FUEL VAPOR FEED

main23818-36010i2ARFXE..AVX40201211-201510

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0P200i2GRFE..GSX40201210-201510

main23820-0V090i2ARFXE..AVX40201211-201510

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P040i2GRFE..GSX40201210-201510

main23826-0V110i2ARFXE..AVX40201211-201510

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GSX40201210-201802

NO.1

main90466-11004i2GRFE..GSX40201803-201804

NO.1

main90467-19021i2ARFXE..AVX40201211-201510

NO.1

main96132-51100i2GRFE..GSX40201210-201804

NO.2

main96136-51901i2ARFXE..AVX40201211-201510

NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i2GRFE..GSX40201210-201412

NO.1

main90466-13005i2GRFE..GSX40201501-201804

NO.1

main96132-51100i2GRFE..GSX40201210-201804

NO.2

main96136-51901i2ARFXE..AVX40201211-201510

23829AHOSE, FUEL VAPOR FEED

main23829-36010i2ARFXE..AVX40201211-201510

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-51901i2ARFXE..AVX40201211-201510

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0V050i2ARFXE..AVX40201211-201510

25804AVALVE SUB-ASSY, VACUUM SWITCHING

main25805-36020i2ARFXE..AVX40201211-201510

7701

8404

7744533040CONNECTOR, FUEL TANK VENT, NO.2

main77445-33040

9099992002

main90999-92002

13 parts on this diagram · 2 diagrams in section
