Toyota AVALON — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

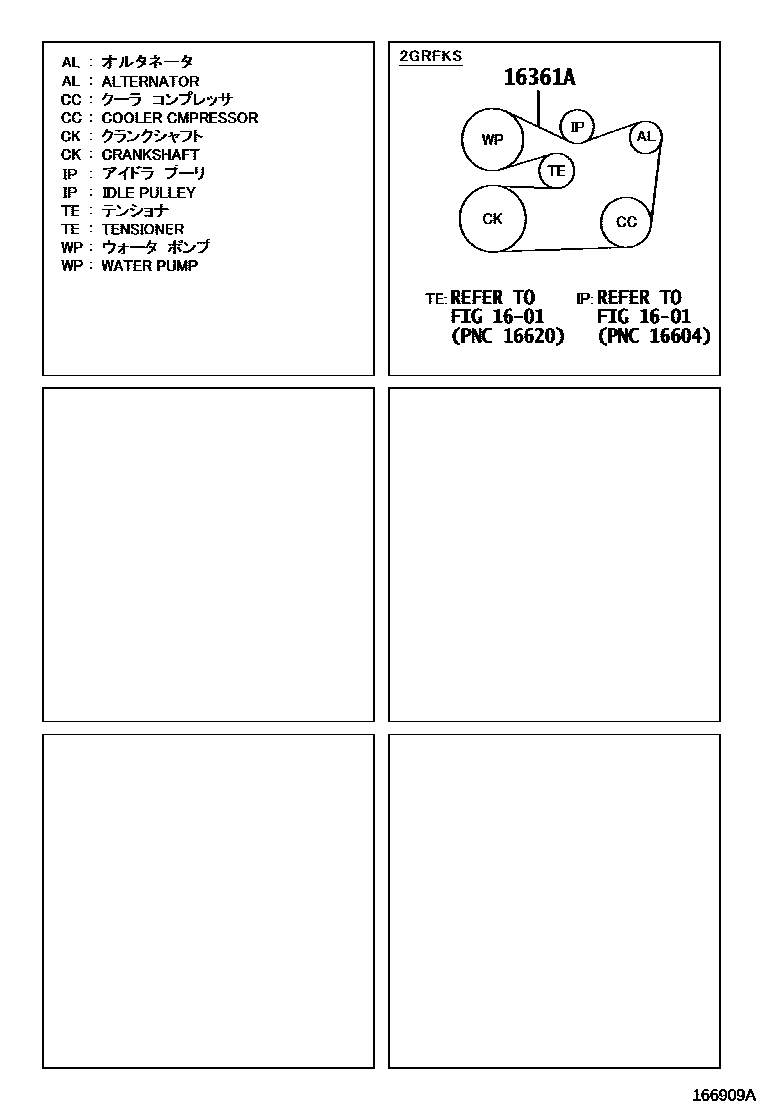

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-A2026i201804-202008

main90916-A2027i202008-202107

2 parts on this diagram · 2 diagrams in section

V-BELT for Toyota AVALON

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota AVALON. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
