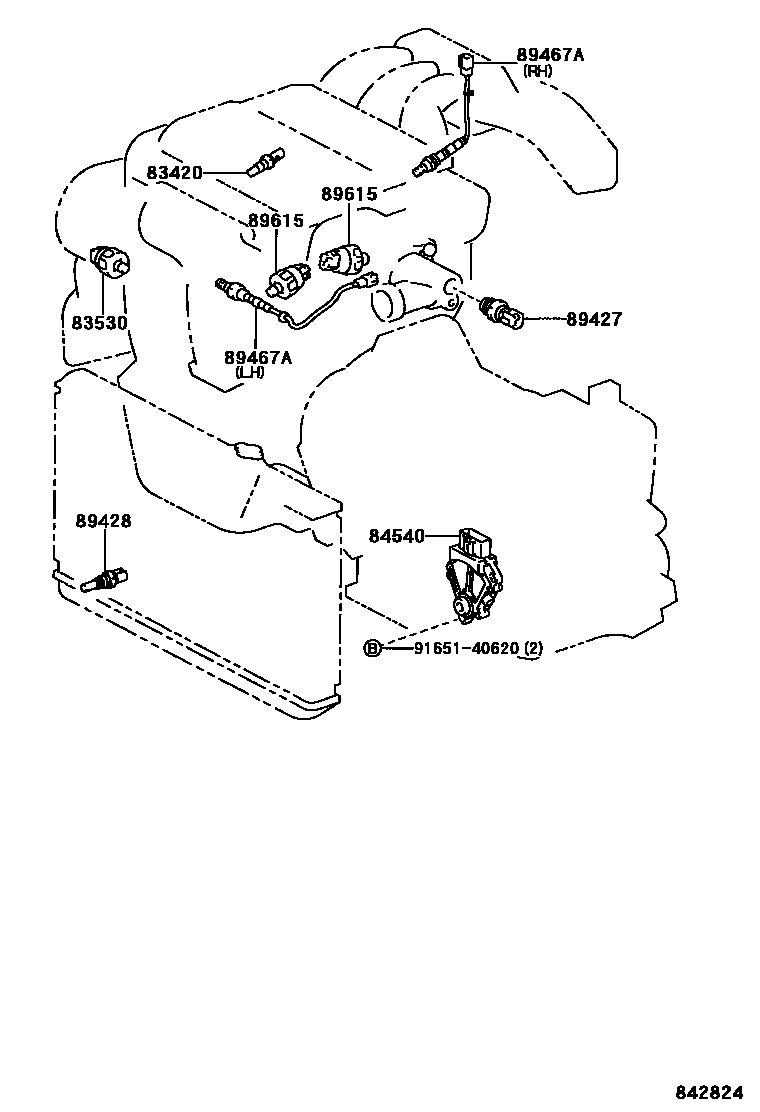

Toyota AVALON — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING COLUMN 0006 1DOOR,ROOF,FLOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCX20200407-200501

(J),YAZAKI

main83420-AA010iMCX20199908-200206

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX20200206

DENSO

main83530-AA011iMCX20199908-200206

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX20200206-200501

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCX20199908-200206

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-21010iMCX20200206

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

main89467-41030iMCX20199908-200206

RH

main89467-41040iMCX20200206

LH

89615SENSOR, KNOCK CONTROL

main89615-12090×2iMCX20200206

main89615-32010×2iMCX20199908-200206

9165140620

main91651-40620

8 parts on this diagram · 6 diagrams in section
