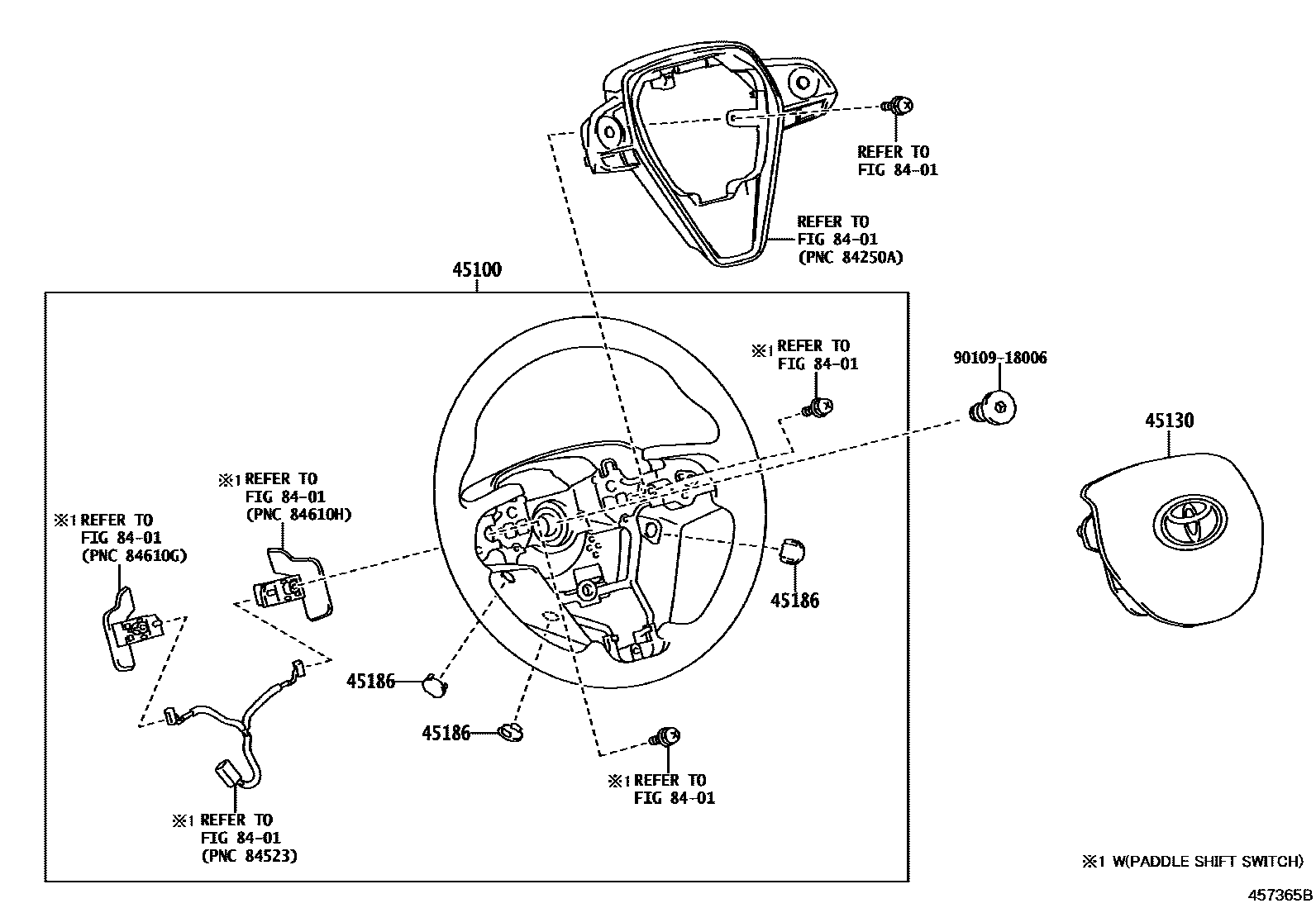

Toyota AVALON — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-07490-B0i201804-201908

3-SPOKE,LEATHER,BROWN,TRIM43

main45100-07490-B1i201804-201908

3-SPOKE,LEATHER,GRAY,TRIM1#

main45100-07490-B2i201908-202008

3-SPOKE,LEATHER,BROWN & BLACK,TRIM43

main45100-07490-B3i201908-202008

3-SPOKE,LEATHER,GRAY & BLACK,TRIM1#

main45100-07490-C0i201804-201908

3-SPOKE,LEATHER,BEIGE,TRIM40

main45100-07490-C1i201908-202008

3-SPOKE,LEATHER,BEIGE & BLACK,TRIM40

main45100-07490-C2i202008

3-SPOKE,LEATHER,BLACK WITH BLACK STITCH,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER),BLACK WITHBLACK STITCH,TRIM1#,2#,4#

main45100-07500-C0i201804-201908

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-07500-C1i201908-202008

3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,20

main45100-07500-C2i201908-202008

3-SPOKE,LEATHER,BLACK & RED,TRIM21

main45100-07510-C0i201804-201908

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-07510-C1i201908-202008

3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#

main45100-07520-C0i201804-201908

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-07520-C1i201908-202008

3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#,4#

45130BUTTON ASSY, HORN

main45130-06480-C0i201804-201808

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main45130-06530-C0i201809-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-06370-C0×3i201804-202008

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

5 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota AVALON

This section contains 5 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVALON. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, SWITCH & RELAY & COMPUTER.
