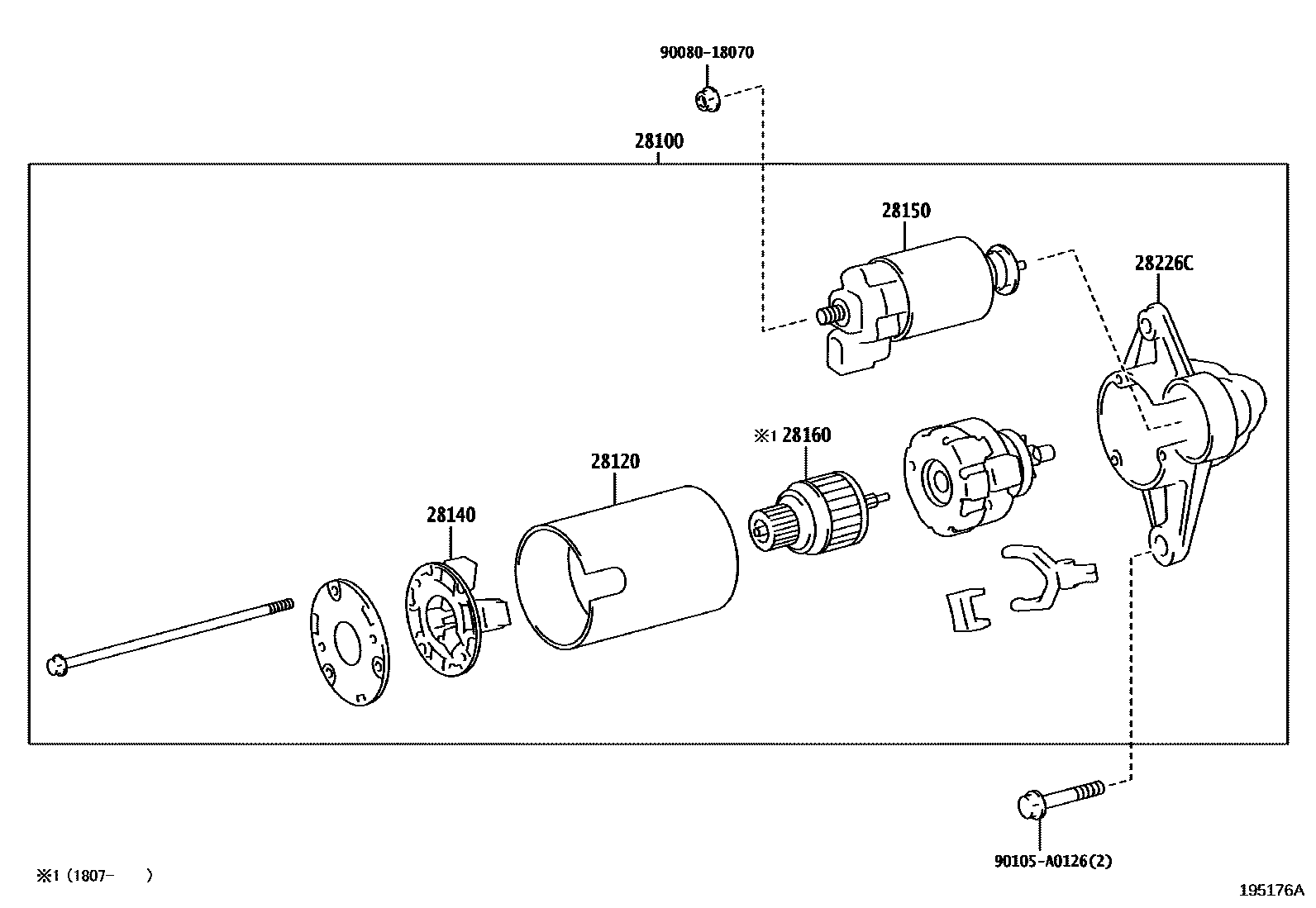

Toyota AVALON — STARTER

0001 112V 1.8KW 0002 112V 1.2KW

28100STARTER ASSY

main28100-0P130i2GRFKS..GSX50201804-202008

12V 1.8KW

main28100-F0060iA25AFKS..AXXA55202008-202107

12V 1.2KW

28120YOKE ASSY, STARTER

main28120-31090i2GRFKS..GSX50..XSE202008-202107

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iA25AFKS..AXXA55202008-202107

main28140-31240i2GRFKS..GSX50201804-202008

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i2GRFKS..GSX50201804-202008

28160ARMATURE ASSY, STARTER

main28160-21080iA25AFKS..AXXA55202008-202107

main28160-31240i2GRFKS..GSX50201807-201910

main28160-36190i2GRFKS..GSX50..LIMD,TOU,XLE202104

main28160-36210i2GRFKS..GSX50201910-202008

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-31240i2GRFKS..GSX50..LIMD,TOU,XLE202008

main28226-K0040iA25AFKS..AXXA55202008-202107

9008018070

main90080-18070

90105A0126

main90105-A0126

8 parts on this diagram · 2 diagrams in section
