Toyota AVALON — STANDARD TOOL

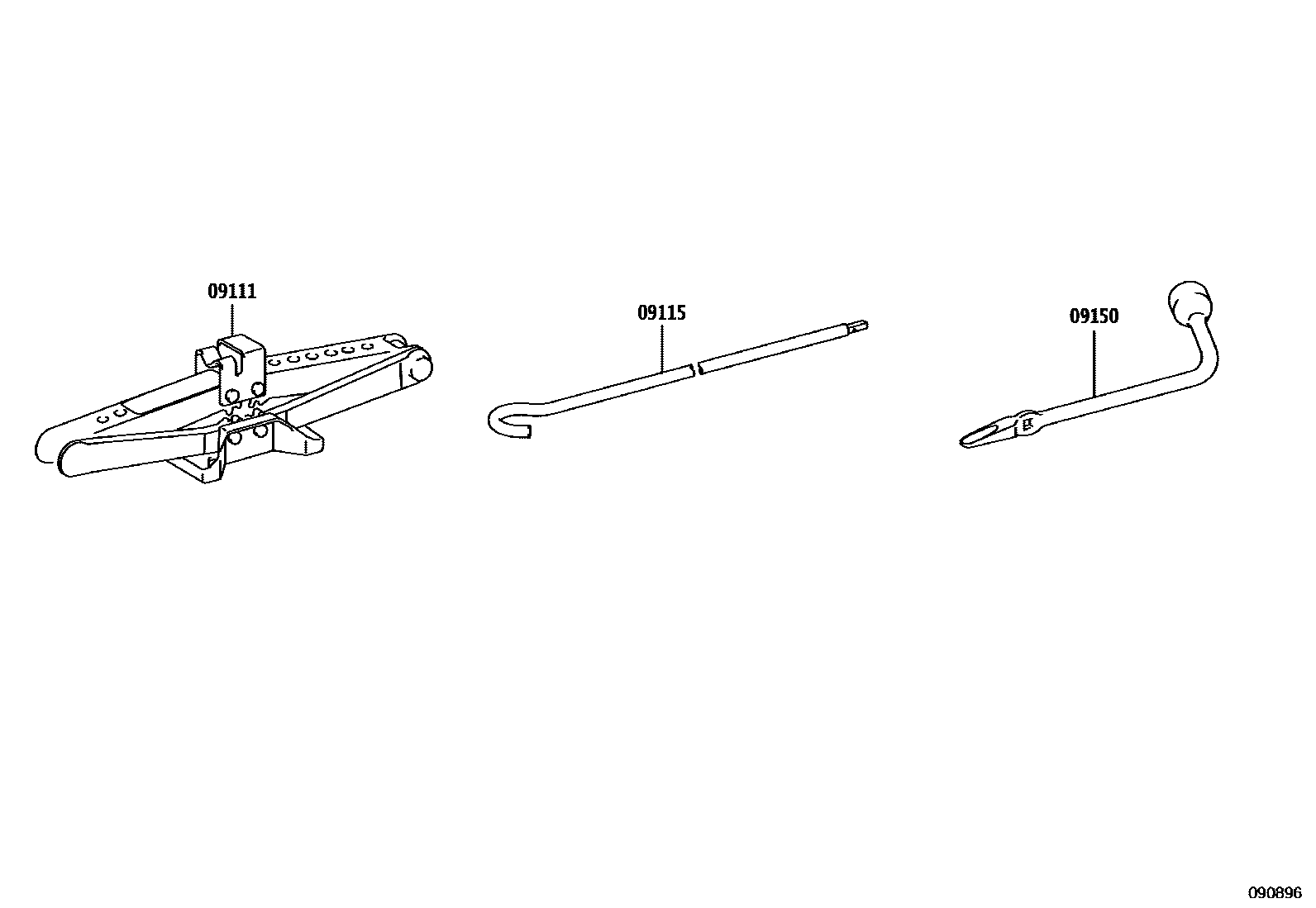

Parts diagram

09111JACK SUB-ASSY

main09111-06120i201804-202008

main09111-07010i202201

KOREA SPEC

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010i201804-202008

09150WRENCH, HUB NUT BOX

main09150-06010i201804-202008

3 parts on this diagram · 1 diagram in section
