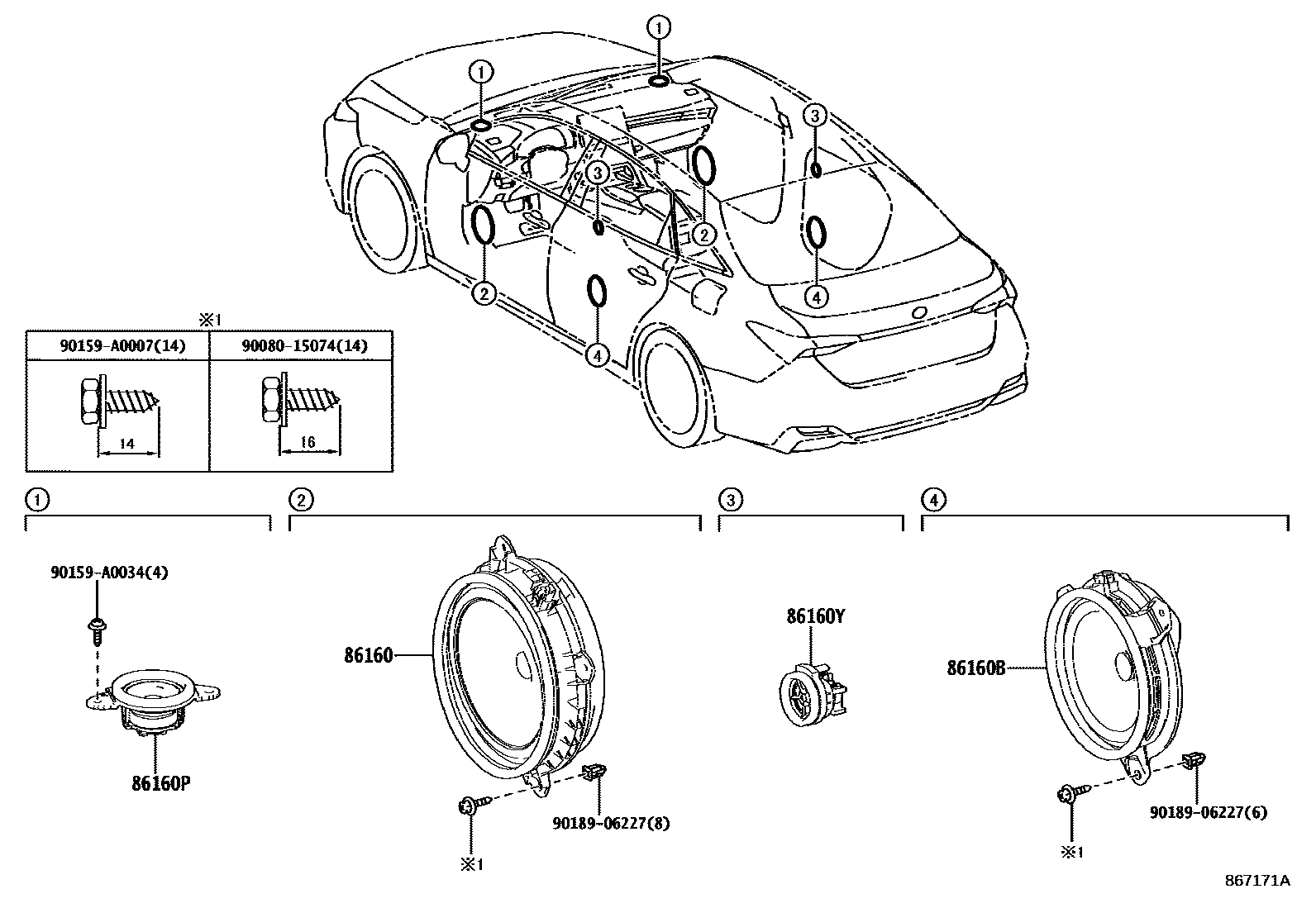

Toyota AVALON — SPEAKER

0001 18SPEAKER 0002 114SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06850×2supersedes 86160-06890iAXXH50,GSX50..LIMD,TOU201804-202008

main86160-06890×2iAXXH50,GSX50..XLE,XSE201804-202008

86160BSPEAKER ASSY, REAR

main86160-06840×2supersedes 86160-0R090iAXXH50,GSX50..XLE,XSE201804-201908

AUDIO-9INCH DISPLAY & 14SPEAKER

main86160-0WY50×2supersedes 86160-02B40iAXXH51..XLE202008

AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA

86160PSPEAKER ASSY, FRONT NO.2

main86160-06380×2iAXXH50,GSX50..XLE,XSE201804-202008

main86160-06A40×2supersedes 86160-06380iAXXH50,GSX50..LIMD,TOU201804-202008

86160YSPEAKER ASSY, REAR NO.2

main86150-07100×2supersedes 86160-0R010iAXXH50,GSX50..LIMD,TOU201804-202008

main86160-0R010×2iAXXH50,GSX50..XLE,XSE201804-202008

9008015074

main90080-15074

90159A0007

main90159-A0007

90159A0034

main90159-A0034

9018906227

main90189-06227

8 parts on this diagram · 2 diagrams in section
