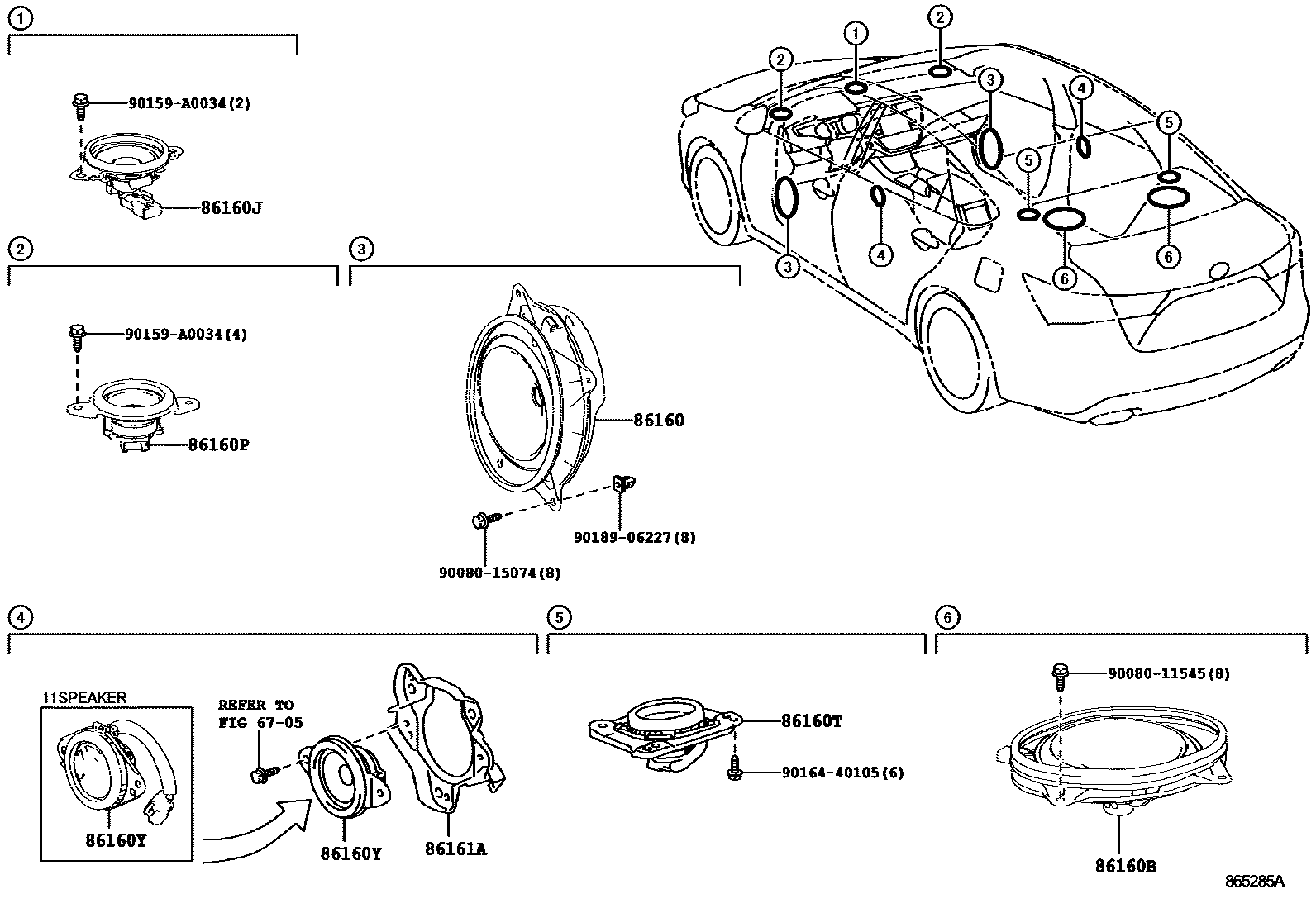

Toyota AVALON — SPEAKER

6705

86160SPEAKER ASSY, FRONT NO.1

main86160-07070×2supersedes 86160-0WU60iAVX40,GSX40..LIMD,XLETO201210-201510

86160BSPEAKER ASSY, REAR

main86160-07090×2supersedes 86160-06450iAVX40,GSX40..LIMD,XLETO201210-201510

86160JSPEAKER ASSY, FRONT NO.3

main86160-07080supersedes 86160-0WU80iAVX40,GSX40..LIMD,XLETO201210-201510

86160PSPEAKER ASSY, FRONT NO.2

main86160-07060×2supersedes 86160-0WU50iAVX40,GSX40..LIMD,XLETO201210-201510

86160TSPEAKER ASSY, REAR HEADER

86160YSPEAKER ASSY, REAR NO.2

main86160-07060×2supersedes 86160-07100iAVX40,GSX40..LIMD201510

HAWAII SPEC&AUDIO-*DA & 9SPEAKER

86161ABRACKET, SPEAKER, REAR

main86161-07010iAVX40,GSX40201510

RH

main86161-07020iAVX40,GSX40201510

LH

9008011545

main90080-11545

9008015074

main90080-15074

90159A0034

main90159-A0034

9016440105

main90164-40105

9018906227

main90189-06227

13 parts on this diagram · 1 diagram in section
